Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
160282011ClausingCSG-818 H

 DescriptionSpec Values
Capacity:Chuck Length x Width8" x 18"
 Maximum Height Under Wheel (8" wheel)10"
Travels:X-Longitudinal20"
 Y-Cross9.75"
Grinding Wheel:Wheel Diameter / Width / Hole8" / 1/2" / 3/4"
Motor:Spindle HP / RPM2 HP / 2,850 RPM
Feeds:Downfeed Feed and Cross Feed Gradation.0001”
 Table Speed3 - 70 FPM
Dimensions:Floor Space (L x W x H)72" x 55" x 66"
 Weight (approx.)3,000 Lbs

 Equipped With
Additional Info.:Precission Spindle
 Elector Magnetic Chuck
 Power Longitudinal and Cross Feed


Click Here To Print Quote - 16028

Click Here To Email Quote Request - 16028

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

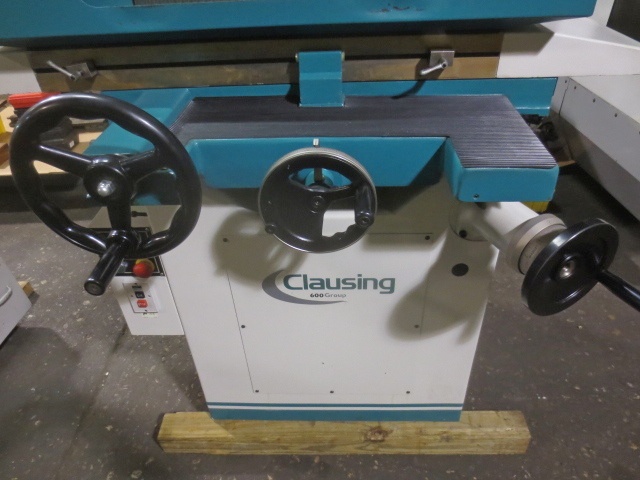

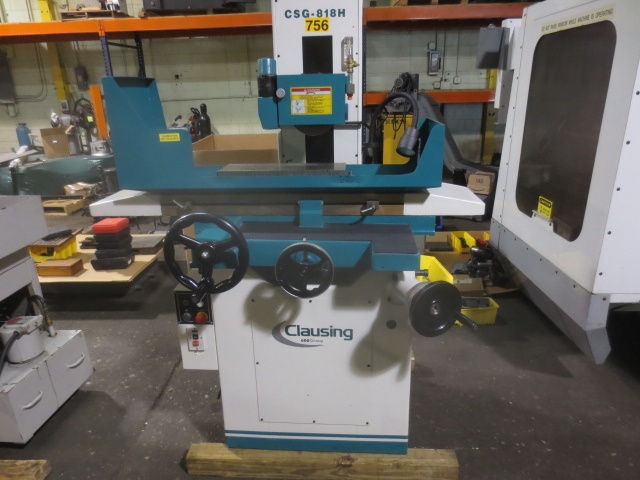

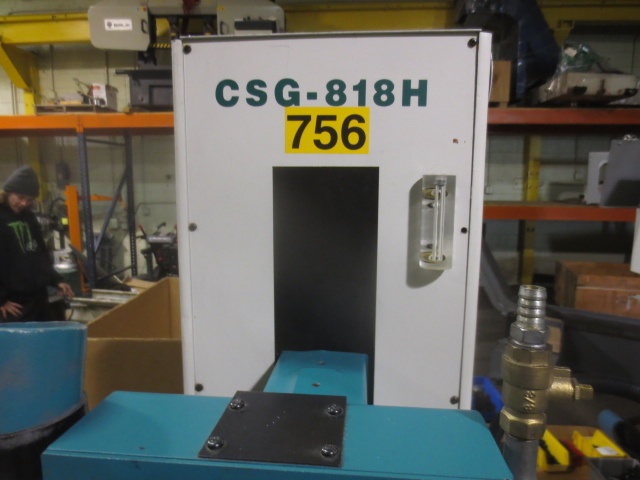

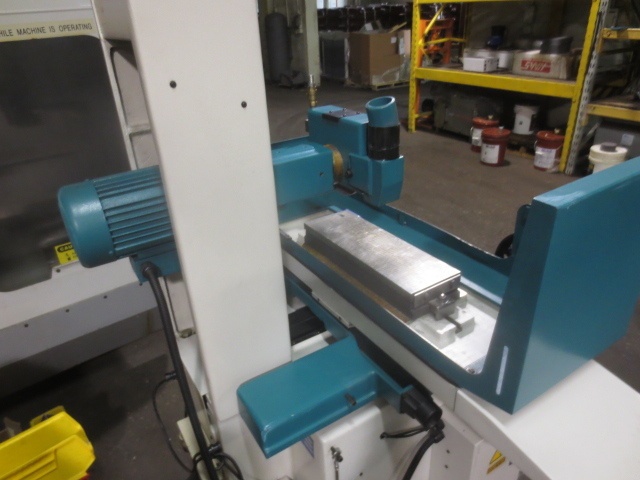

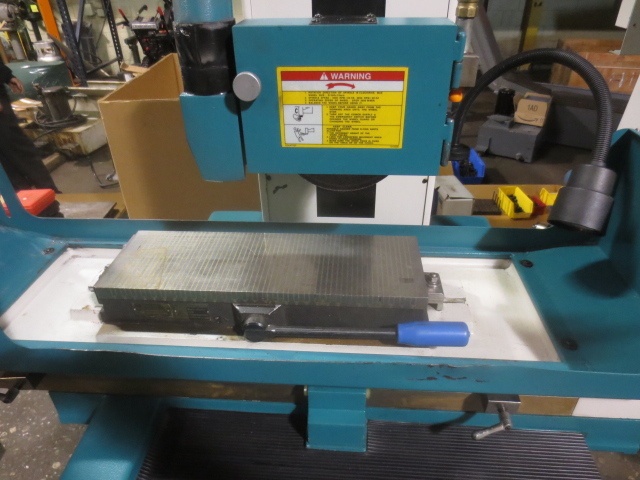

ClausingCSG-818 H16028http://www.machinetools247.com/images/machines/16028-Clausing CSG-818 H.jpg
ClausingCSG-818 H16028http://www.machinetools247.com/images/machines/16028-Clausing CSG-818 H 1.jpg
ClausingCSG-818 H16028http://www.machinetools247.com/images/machines/16028-Clausing CSG-818 H 2.jpg
ClausingCSG-818 H16028http://www.machinetools247.com/images/machines/16028-Clausing CSG-818 H 3.jpg
ClausingCSG-818 H16028http://www.machinetools247.com/images/machines/16028-Clausing CSG-818 H 4.jpg
