Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
167902016OkumaLU-35 2SC - 2000 BBOSP-P300L

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle29.13" / 18.90"
 Maximum Turning Diameter / Length21.65" / 81.50"
Main Spindle:Speeds28 - 2,800 RPM
 Spindle Bore / Bar Cap / Spindle Nose7.13" / 7.13" / A2-15
 Motor (30 min. / cont.)50 / 40 HP

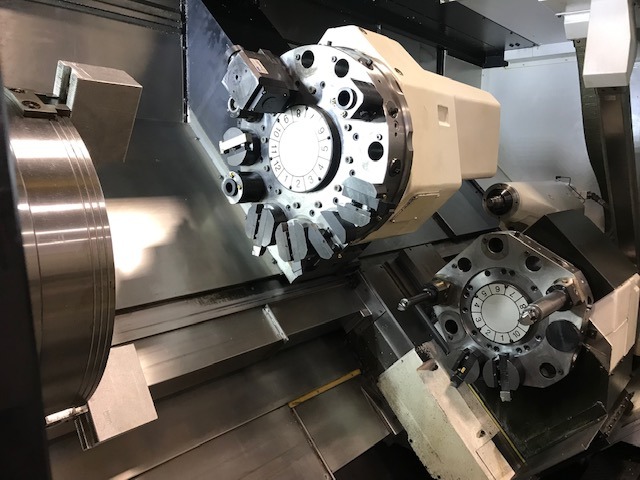

Turrets:Number of Positions (turret one / turret two)12 / 10 Tools Each
Travels:X-Axis Travel (turret one & turret two)14.96" / 9.84"
 Z-Axis Travel (turret one & turret two)81.81" / 80.04"
Rapids:Rapid Traverse (X / Z)591 / 787 IPM
Tailstock:Stroke of Body / Quill78" / 6.69"
 Quill Diameter / Taper4.72" / # 5 MT
Dimensions:Floor Space (L x W x H)260” x 104” x 103”
 Weight (approx)37,000 Lbs

 Equipped With

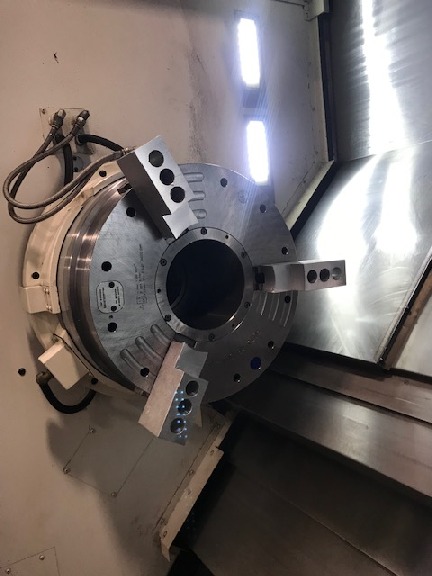

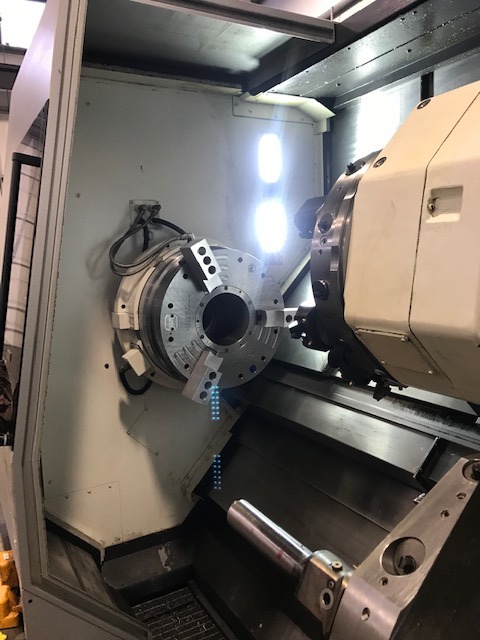

Additional Info.:19.6" 3-Jaw Pneumatic Chuck
 Chip Conveyor
 Coolant System
 RS-232 Port
 Variable Spindle Speed Threading
 Multi Tap Transformer
 Remote Jog Handle
 Prepped For Rear Chuck
 Thread Start Point Offset

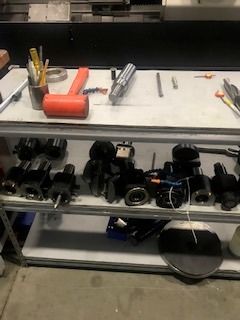

 Live and Standard Tooling


Click Here To Print Quote - 16790

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

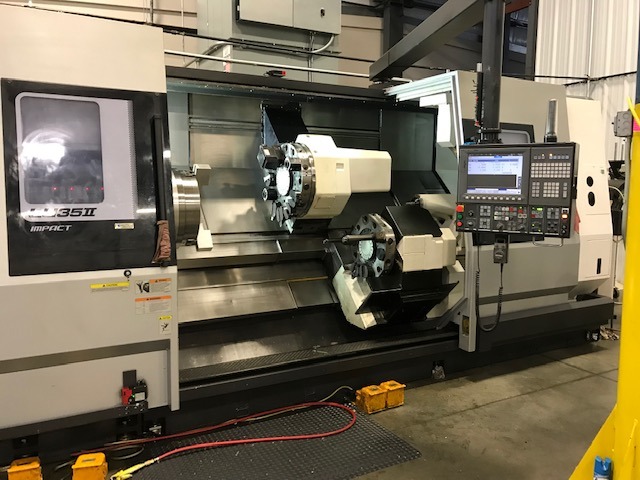

OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB.jpg

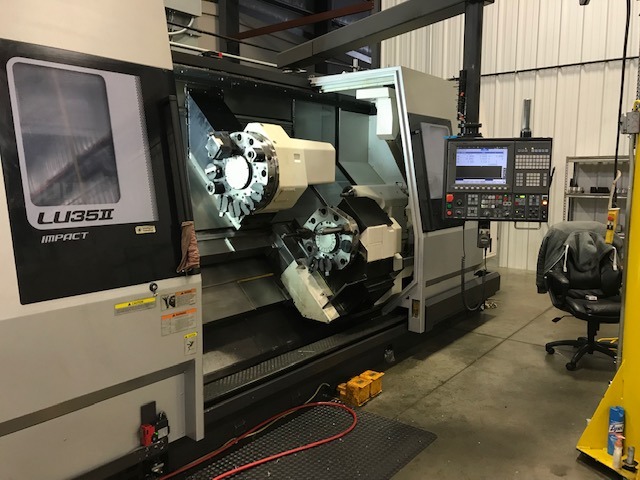

OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB 1.jpg
OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB 3.jpg
OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB 4.jpg

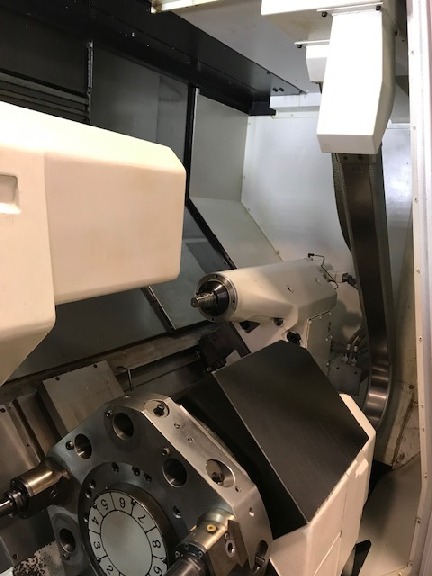

OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB 5.jpg

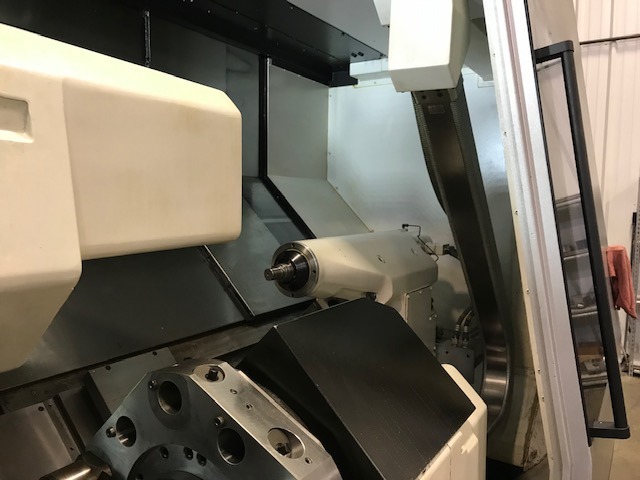

OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB 6.jpg
OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB 7.jpg

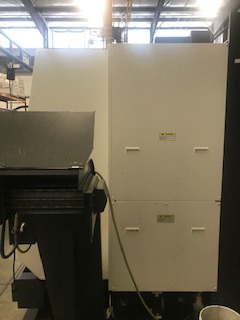

OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB 8.jpg
OkumaLU-35 2SC - 2000 BB16790http://www.machinetools247.com/images/machines/16790-Okuma LU-35 2SC - 2000 BB 9.jpg
