At Machine Tools 24-7 we never stop working to serve your machine tool needs

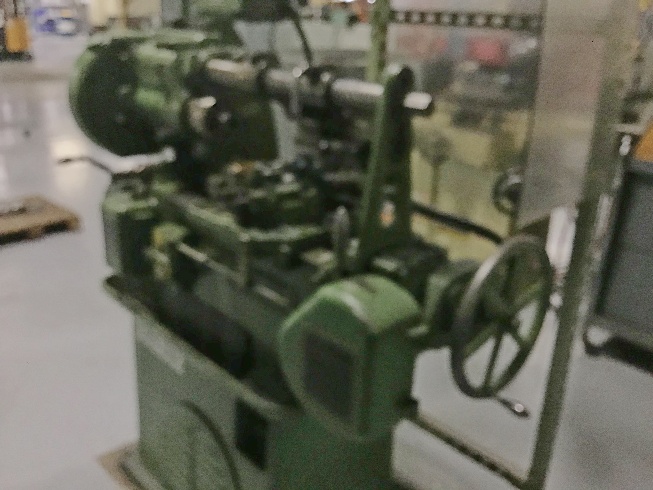

Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
167301962Barber-Colman6-10

 DescriptionSpec Values
Specifications:Maximum DP In Steel16 DP 2" / 48 DP 6"
 Maximum Working Diameter6"
 Maximum Swivel60° Right / 90° Left
 Maximum Hob Slide Travel10.5"
 Maximum Work Spindle Face to Tail Center15.75"
 Work Spindle to Centerline of Hob Spindle2.25" to 12.75"
 Maximum Hob Diameter2.0625"
 Hob Spindle Speed30 - 1,200 RPM
 Spindle Bore Daimeter1.03125"
 Drive Motor2 HP
Dimensions:Floor Space (L x W x H)66" x 48" x 57"
 Weight (approx.)3,500 Lbs

 Equipped With
Additional Info.:Multi Cycle Controls
 Power Down Feed
 Automatic Hobb Shift
 Coolant System
 Standard Swivel Hobb Head
 Dovetail Overarm

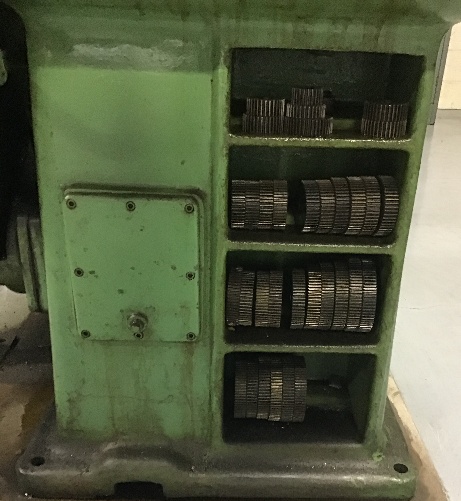

 Change Gears
 Triple Thread Precision Worm
 Tailstock
 Change Gears


Click Here To Print Quote - 16730

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos
Barber-Colman6-1016730http://www.machinetools247.com/images/machines/16730-Barber Colman 6-10.jpeg
Barber-Colman6-1016730http://www.machinetools247.com/images/machines/16730-Barber Colman 6-10 a.jpeg
Barber-Colman6-1016730http://www.machinetools247.com/images/machines/16730-Barber Colman 6-10 b.jpg
Barber-Colman6-1016730http://www.machinetools247.com/images/machines/16730-Barber Colman 6-10 c.jpg
Barber-Colman6-1016730http://www.machinetools247.com/images/machines/16730-Barber Colman 6-10 d.jpg
Barber-Colman6-1016730http://www.machinetools247.com/images/machines/16730-Barber Colman 6-10 e.jpg
