Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

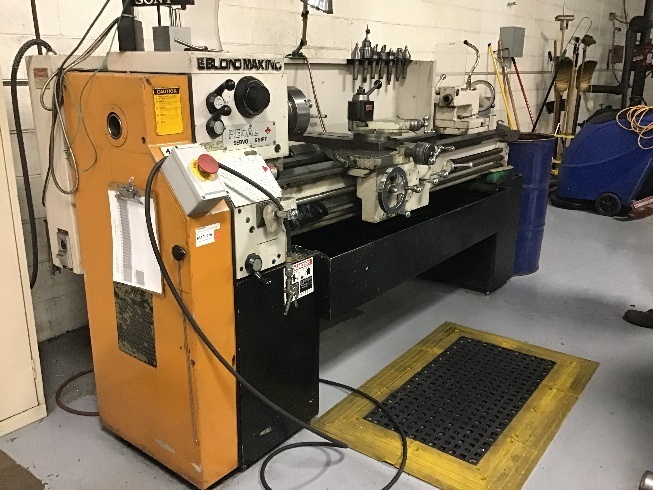

167241991Leblond-MakinoRegal Servo-Shift

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Cross Slide15.5" / 9.5"
 Distance Between Centers54"
Spindle:Spindle Speeds Minimum - Maximum45 - 1,800 RPM
 Main Motor (HP)10 HP
 Spindle Bore / Through Hole / Spindle Nose2.27" / 2.27" / D1-6
 Cross Slide Travel / Compund Travel8.875" / 3.875"
 Thread Range Inch (48)2 - 112 TPI
 Feed Rates (48).0018 - .104 IPR
Tailstock:Stroke of Body / Quill50" / 5"
 Quill Diameter / Taper1.9375" / MT # 4
Dimensions:Floor Space (L x W x H)90" x 40" x 55"
 Weight (approx.)4,000 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Chuck
 Inch / Metric Threading

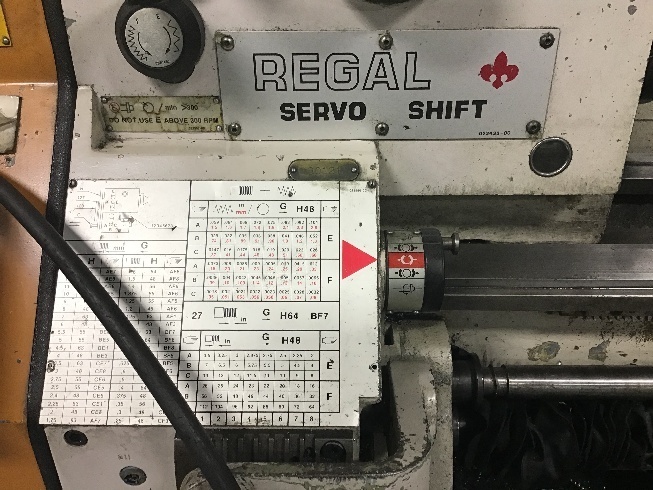

 Servo Shift Controls

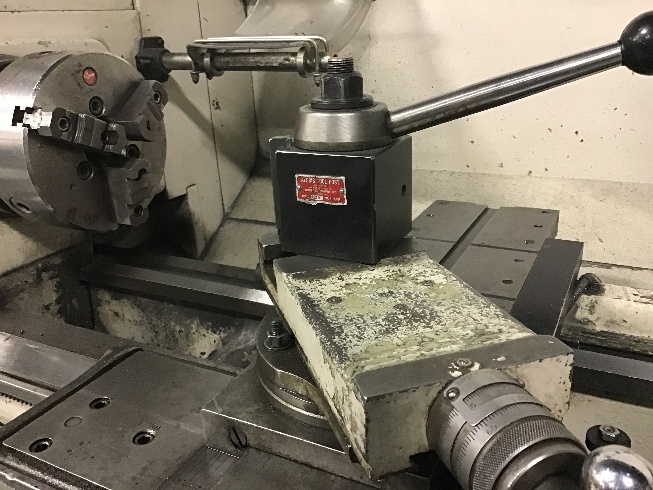

 Aloris Tool Post
 Sony DRO's

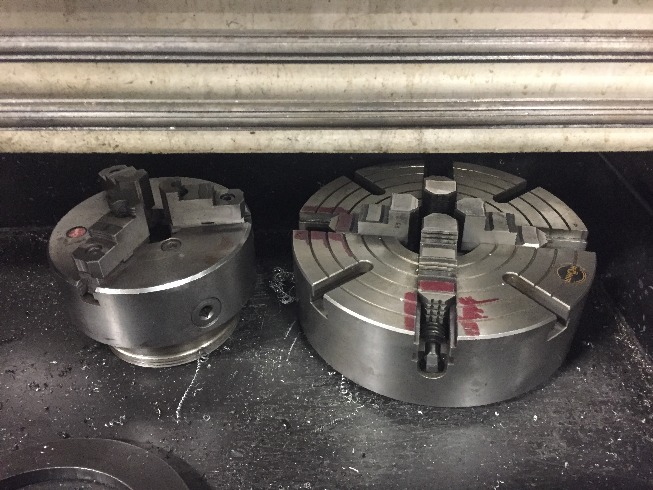

 8" 3-Jaw Chuck
 12" 4-Jaw Chuck

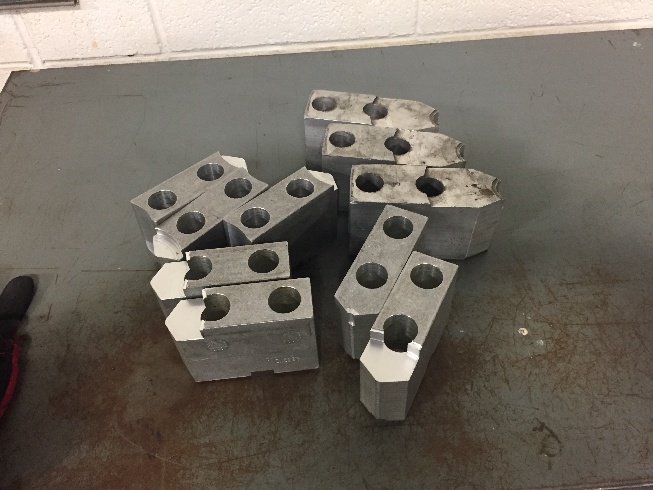

 Soft Jaws
 15" Face Plate
 Steady Rest
 Chip Pan


Click Here To Print Quote - 16724

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos
Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift.jpeg
Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 1.jpeg

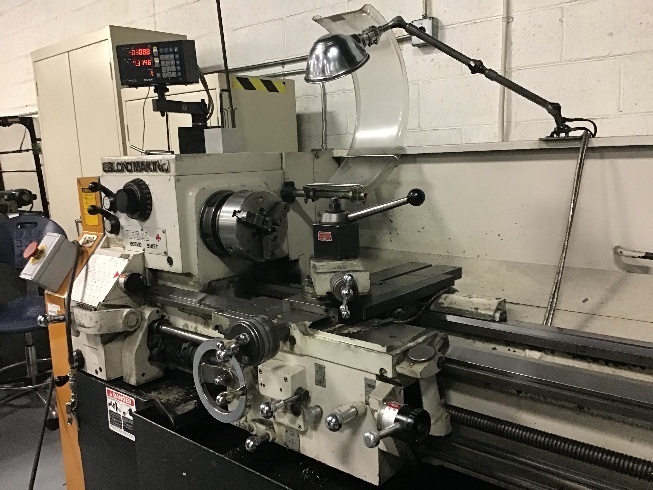

Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 2.jpeg
Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 3.jpeg
Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 4.jpg
Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 5.jpg

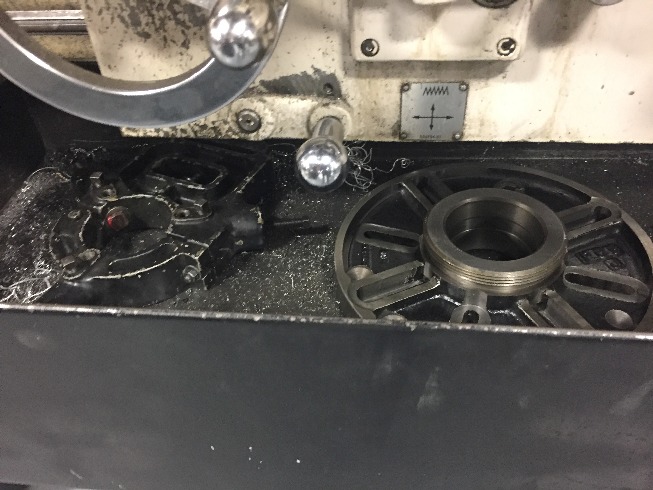

Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 6.jpg

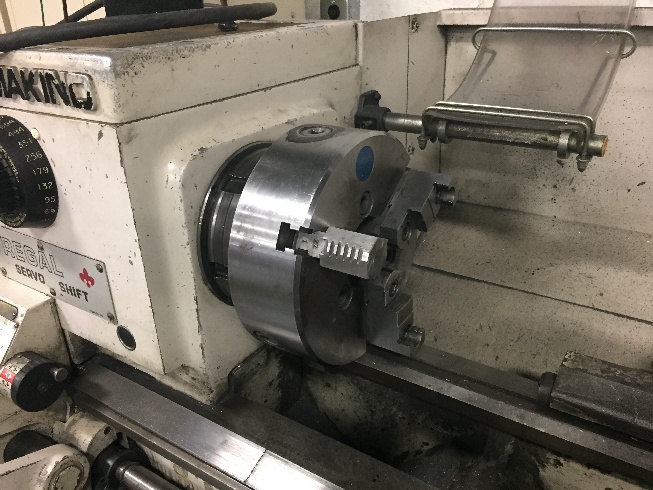

Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 7.jpg

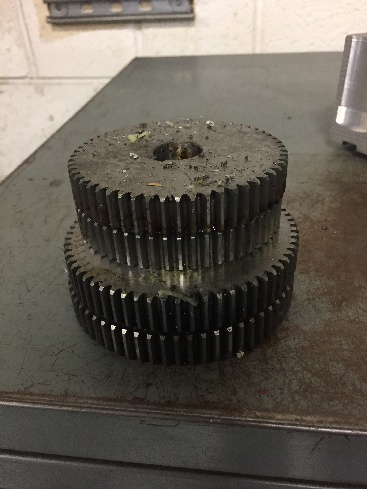

Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 8.jpg

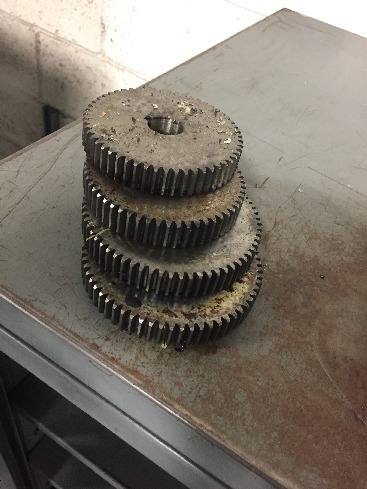

Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 9.jpg

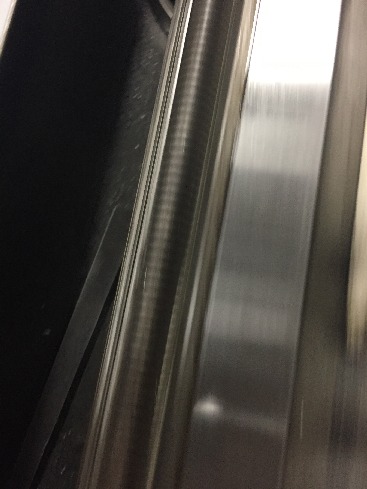

Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 10.jpg
Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 11.jpg

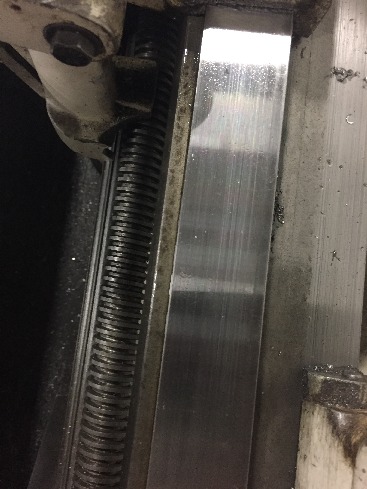

Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 12.jpg

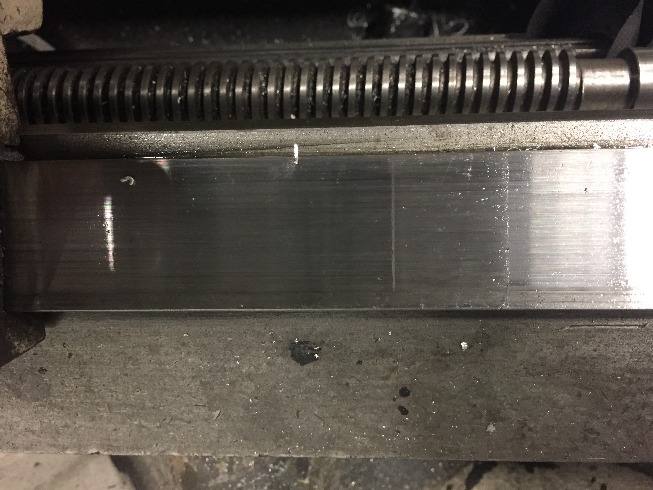

Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 13.jpg
Leblond-MakinoRegal Servo-Shift16724http://www.machinetools247.com/images/machines/16724-Leblond-Makino Regal Servo Shift 14.jpg
