Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
167122006MazakQuick Turn Nexus-350Mazatrol Fusion 640 T

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide26.77" / 21"
 Maximum Turning Diameter / Maximum Turning Length16.5" / 60.5"
 Distance Between Centers59.837"
Spindle:Spindle Speeds Minimum - Maximum6 - 3,300 RPM
 Spindle Bore / Bar Capacity / Nose4.4" / 4" / A2-11
 Main Motor (30 min / continuous)40 / 30 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.63"
 Z-Axis Travel59.03"
Tailstock:Stroke of Body / Quill58" / 4.1"
 Quill Diameter / Taper3.94" / MT # 5
Rapids:Rapid Traverse (X / Z )787 / 984 IPM
Dimensions:Floor Space (L x W x H)162" x 85" x 82"
 Weight (approx.)16,000 Lbs

 Equipped With
Additional Info.:12" 3-Jaw Hydraulic Chuck
 Conversational Programming
 Tool Eye
 Chip Conveyor
 EIA / ISO Package
 Box Ways
 Programmable Tailstock
 High Pressure Coolant

Click Here To Print Quote - 16712

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>


ManufacturerModelMachine IDMachine Photos
MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350.jpg

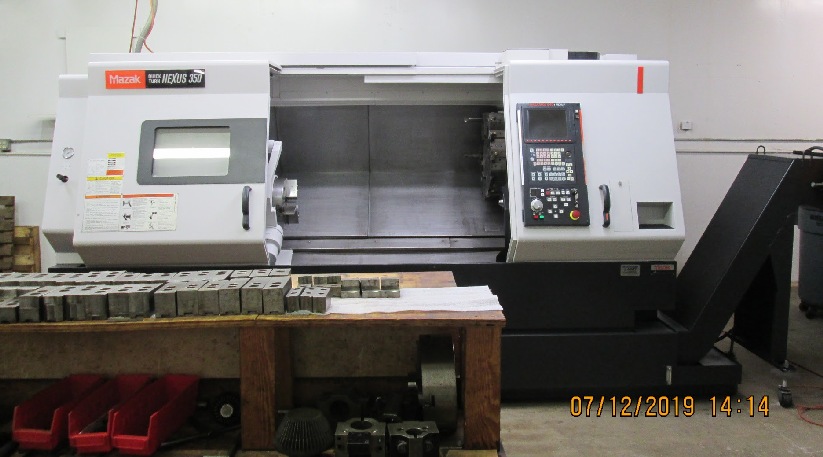

MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350 a.jpg

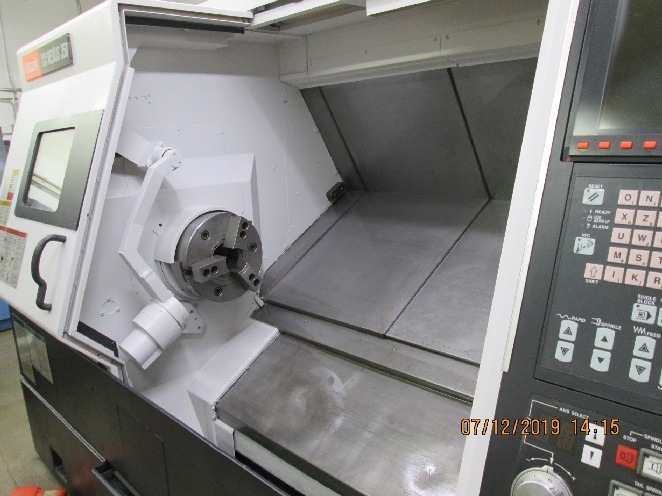

MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350 b.jpg

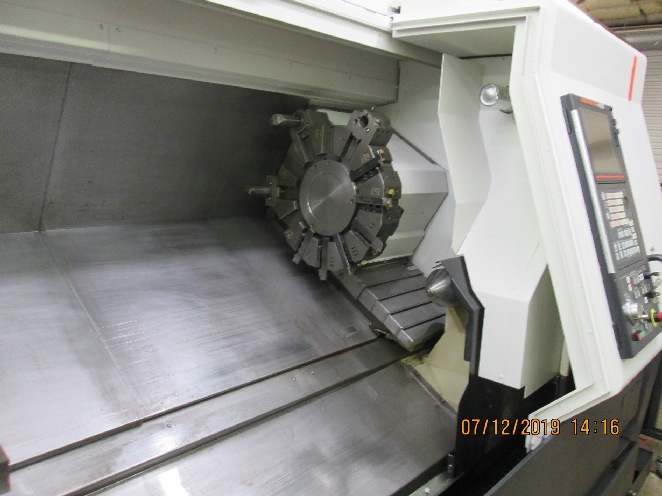

MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350 c.jpg

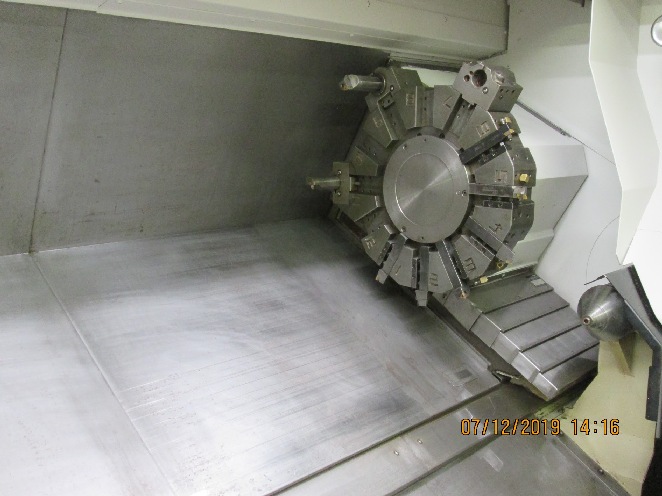

MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350 d.jpg

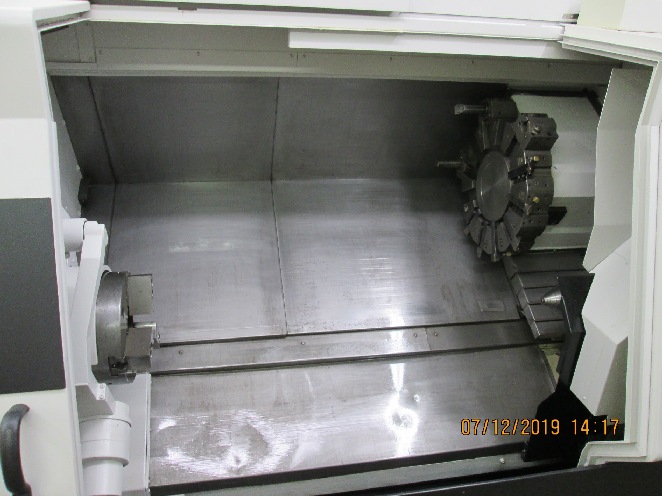

MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350 e.jpg

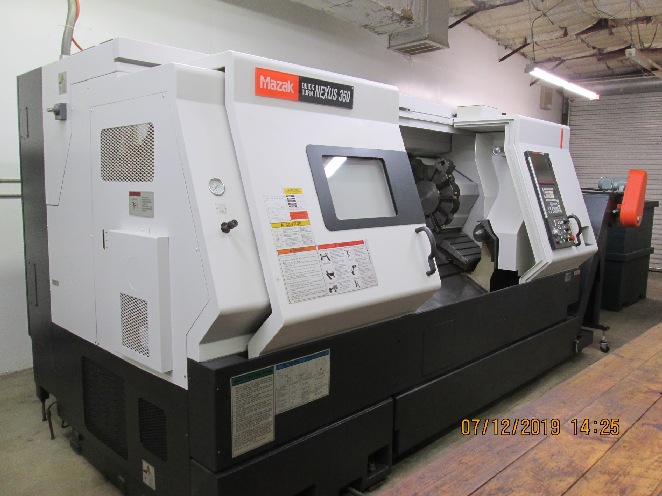

MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350 f.jpg

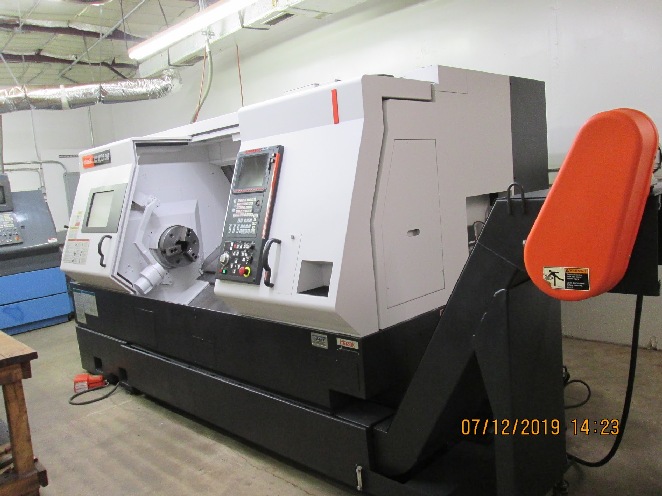

MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350 g.jpg

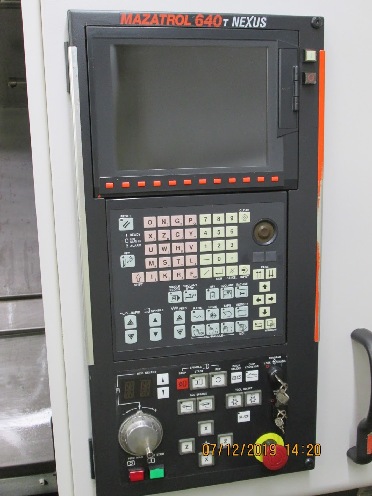

MazakQuick Turn Nexus-35016712 Quick Turn Nexus-350 h.jpg
