At Machine Tools 24-7 we never stop working to serve your machine tool needs

Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
166492006HaasMini-MillHaas Control

 DescriptionSpec Values
Table:Table Size (length total / work surface x width)36" / 28.75" x 12"
 Maximum Table Load500 Lbs
Travels:X-Axis Travel16"
 Y-Axis Travel12"
 Z-Axis Travel10"
Spindle:Spindle Speeds Min-Max6 - 6,000 RPM
 Spindle Taper40 Taper
 Main Motor7.5 HP
Tool Changer:Tool Changer Positions10 ATC
Rapids:Rapid Traverse600 IPM
 Cutting Feed Rates.01" - 500"
Dimensions:Floor Space (L x W x H)68" x 60" x 98"
 Weight (approx)3,400 Lbs

 Equipped With
Additional Info.:Runs on Single or Three Phase Power
 Rigid Tapping
 RS-232 Port
 High Speed Machining
 Coolant Pump
 Floppy Drive
 4th Axis Intrerface
 16 Meg of Memory
 Programmable Coolant


Click Here To Print Quote - 16649

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

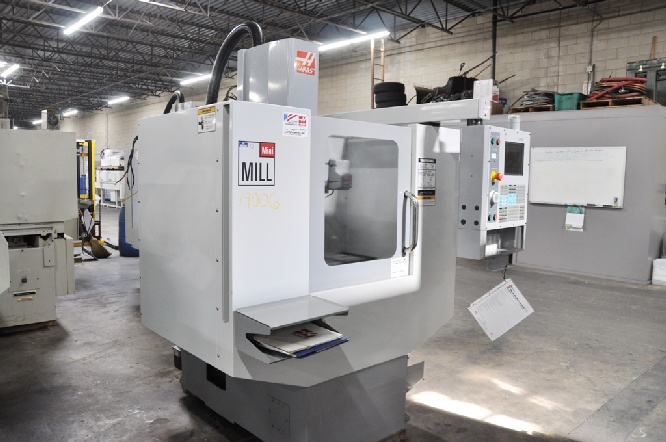

HaasMini-Mill16649http://www.machinetools247.com/images/machines/16649-Haas Mini-Mill.jpg

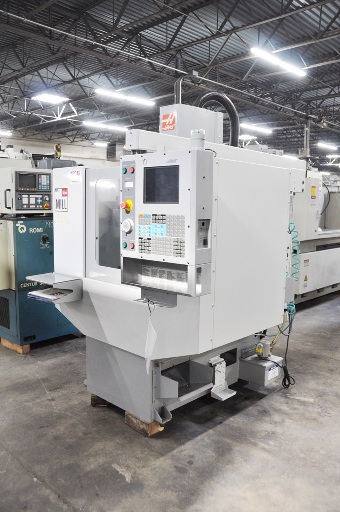

HaasMini-Mill16649http://www.machinetools247.com/images/machines/16649-Haas Mini-Mill 1.jpg

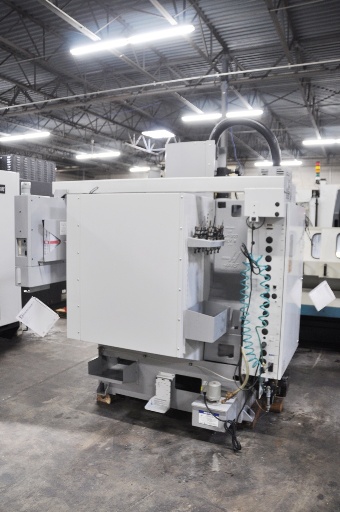

HaasMini-Mill16649http://www.machinetools247.com/images/machines/16649-Haas Mini-Mill 2.jpg

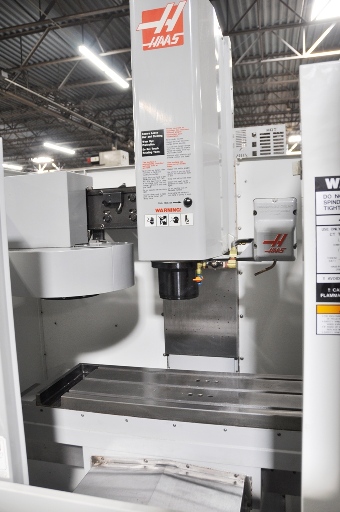

HaasMini-Mill16649http://www.machinetools247.com/images/machines/16649-Haas Mini-Mill 3.jpg

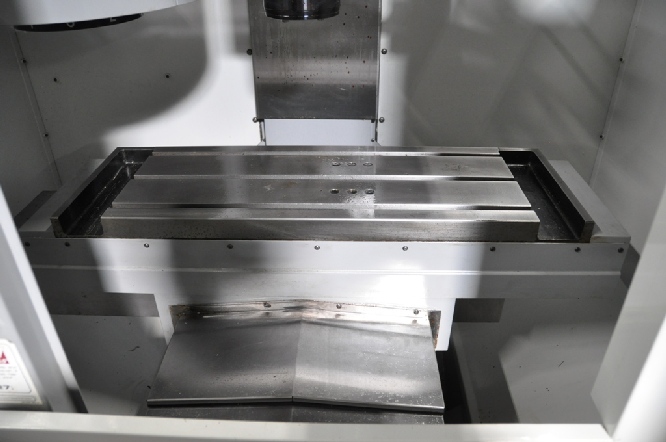

HaasMini-Mill16649http://www.machinetools247.com/images/machines/16649-Haas Mini-Mill 4.jpg

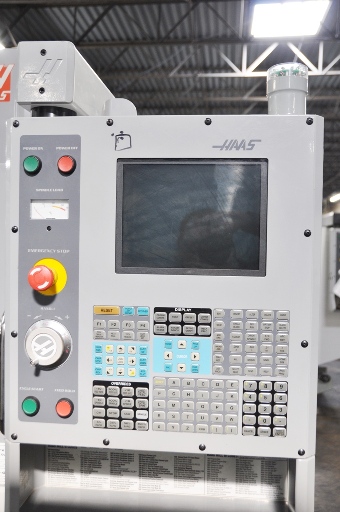

HaasMini-Mill16649http://www.machinetools247.com/images/machines/16649-Haas Mini-Mill 5.jpg
