Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
166411981Toshiba (Shibaura)TX-16

 DescriptionSpec Values
Capacity:Table Size / Table Load62.75" / 17,640 Lbs
 Maximum Swing78.7"
 Height Underside of Rail59"
Spindle:Speeds Minimum - Maximum (12 speeds)3.6 - 160 RPM
 Motor40 HP
Heads:Number of Head(s)1 Heads
 Turret Head5 Position
Travels:Ram Head Travel / Swivel39.4" / 30° +/-
 Side Head Travel31.5"
Feeds:Feed Range Rail Head (12 feeds)0.003 - 0.139 IPR
 Rapids Rail Head / Cross Rail118 / 16.2 IPM
Dimensions:Floor Space (L x W x H)136" x 112" x 181"
 Weight (approx.)22,800 Lbs

 Equipped With
Additional Info.:62.75" 4-Jaw Manual Chuck


Click Here To Print Quote - 16641

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

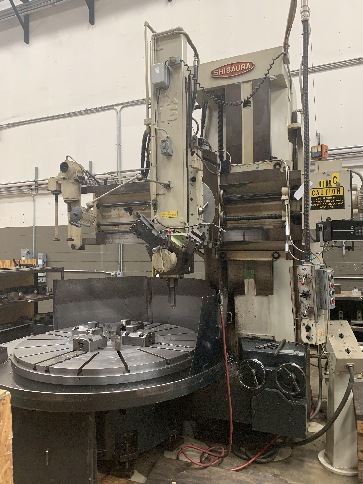

Toshiba (Shibaura)TX-1616641http://www.machinetools247.com/images/machines/16641-Toshiba-Shibaura TX-16.jpg

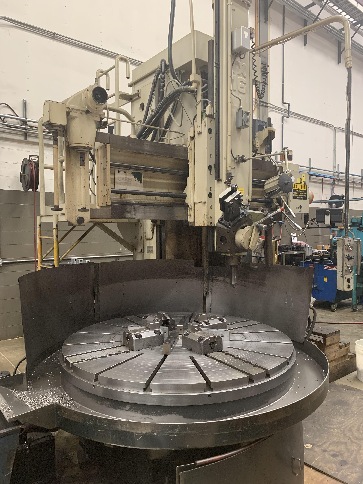

Toshiba (Shibaura)TX-1616641http://www.machinetools247.com/images/machines/16641-Toshiba-Shibaura TX-16 a.jpg

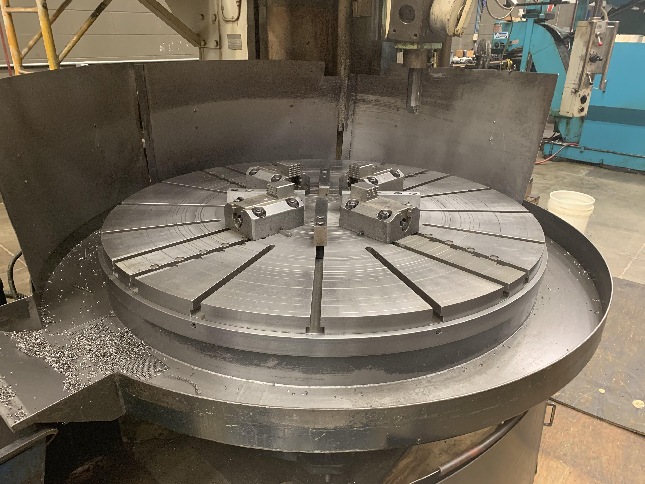

Toshiba (Shibaura)TX-1616641http://www.machinetools247.com/images/machines/16641-Toshiba-Shibaura TX-16 b.jpg

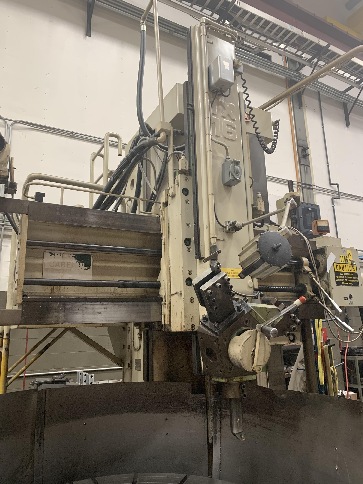

Toshiba (Shibaura)TX-1616641http://www.machinetools247.com/images/machines/16641-Toshiba-Shibaura TX-16 c.jpg

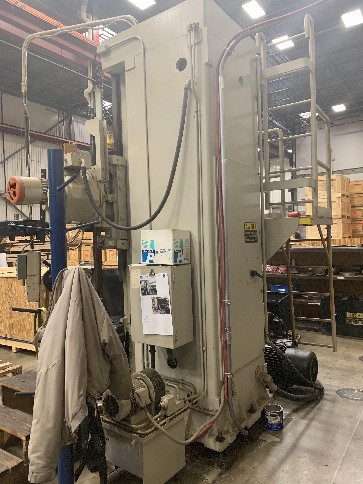

Toshiba (Shibaura)TX-1616641http://www.machinetools247.com/images/machines/16641-Toshiba-Shibaura TX-16 d.jpg

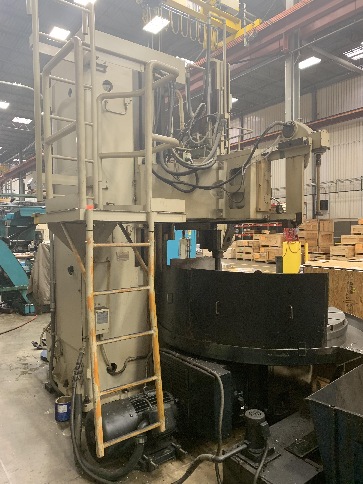

Toshiba (Shibaura)TX-1616641http://www.machinetools247.com/images/machines/16641-Toshiba-Shibaura TX-16 e.jpg

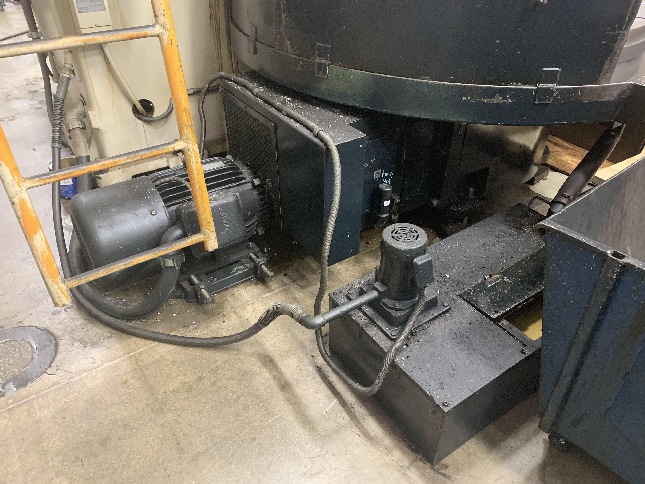

Toshiba (Shibaura)TX-1616641http://www.machinetools247.com/images/machines/16641-Toshiba-Shibaura TX-16 f.jpg

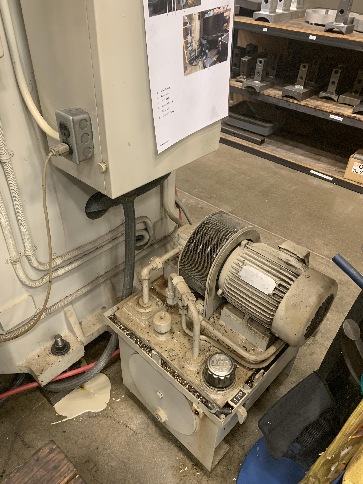

Toshiba (Shibaura)TX-1616641http://www.machinetools247.com/images/machines/16641-Toshiba-Shibaura TX-16 g.jpg
