Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

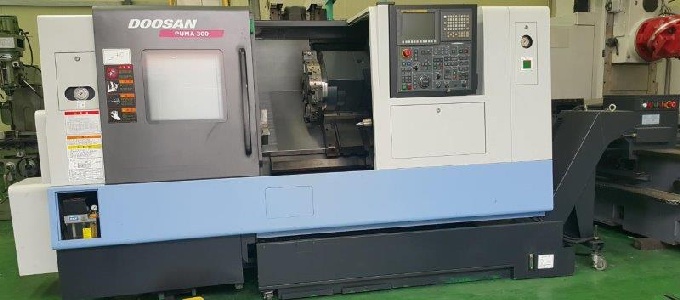

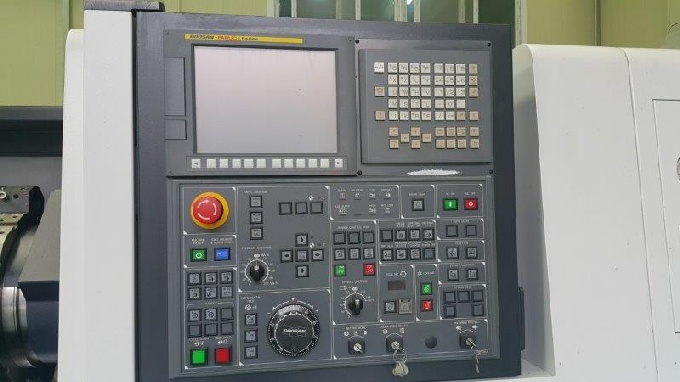

166282015DoosanPuma-300 CFanuc i Series

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide23.2" / 17.7"
 Maximum Turning Diameter / Maximum Turning Length15.7" / 26.6"
 Distance Between Centers27.2"
Spindle:Spindle Speeds Minimum - Maximum28 - 2,800 RPM
 Spindle Bore / Bar Capacity / Nose4.53" / 4.05" / A2-11
 Main Motor (30 min / continuous)35 / 25 HP

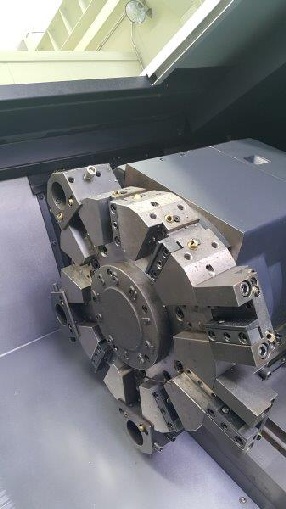

Turret:Number of Positions10 Stations
Travels:X-Axis Travel11.1"
 Z-Axis Travel26.84"
Tailstock:Stroke of Body / Quill26" / 3.94"
 Quill Diameter / Taper3.94" / #5 MT
Rapids:Rapid Traverse (X / Z )787 / 945 IPM
 Feed Rate (X & Z )0.04 - 157 IPM
Dimensions:Floor Space (L x W x H)142" x 72" x 72"
 Weight (approx)13,000 Lbs

 Equipped With

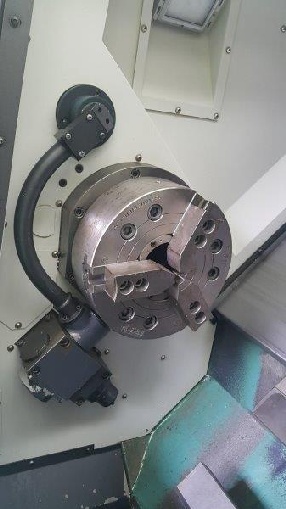

Additional Info.:12" 3-Jaw Hydraulic Chuck
 Tool Presetter
 Two (2) Speed Geared Head
 Ethernet Port
 Programmable Tailstock
 Chip Conveyor
 PC / MCIA Interface
 Box Ways
 Sixty Four (64) Offsets Pairs


Click Here To Print Quote - 16628

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos
DoosanPuma-300 C16628http://www.machinetools247.com/images/machines/16628-Doosan Puma-300 C.jpg
DoosanPuma-300 C16628http://www.machinetools247.com/images/machines/16628-Doosan Puma-300 C 1.jpg
DoosanPuma-300 C16628http://www.machinetools247.com/images/machines/16628-Doosan Puma-300 C 2.jpg
DoosanPuma-300 C16628http://www.machinetools247.com/images/machines/16628-Doosan Puma-300 C 3.jpg
DoosanPuma-300 C16628http://www.machinetools247.com/images/machines/16628-Doosan Puma-300 C 4.jpg
DoosanPuma-300 C16628http://www.machinetools247.com/images/machines/16628-Doosan Puma-300 C 5.jpg
DoosanPuma-300 C16628http://www.machinetools247.com/images/machines/16628-Doosan Puma-300 C 6.jpg
DoosanPuma-300 C16628http://www.machinetools247.com/images/machines/16628-Doosan Puma-300 C 7.jpg
