Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
161192011HaasTL-4Haas Control

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide35" / 16"
 Maximum Turning Diameter / Maximum Turning Length35" / 80"
 Distance Between Centers91"
Spindle:Spindle Speeds Minimum - Maximum50 - 500 RPM
 Spindle Bore / Bar Capacity / Nose10.81" / 10.81" / A1-20
 Main Motor (30 min / continuous)55 / 40 HP
Turret:Number of Positions4 Stations
Travels:X-Axis Travel18"
 Z-Axis Travel80"
Tailstock:Stroke of Body / Quill20" / 4.1"
 Quill Diameter / Taper5.9" / MT #5
Rapids:Rapid Traverse (X / Z )150 / 320 IPM
Dimensions:Floor Space (L x W x H)234" x 120" x 87"
 Weight (approx.)27,000 Lbs

 Equipped With

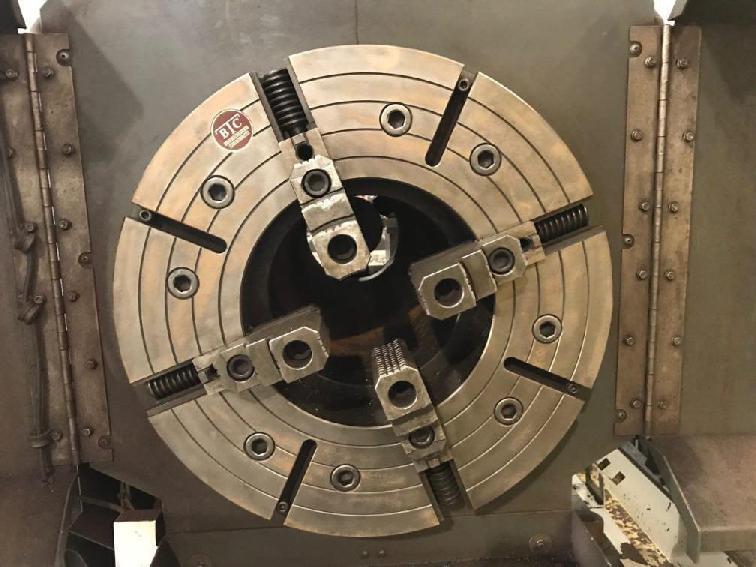

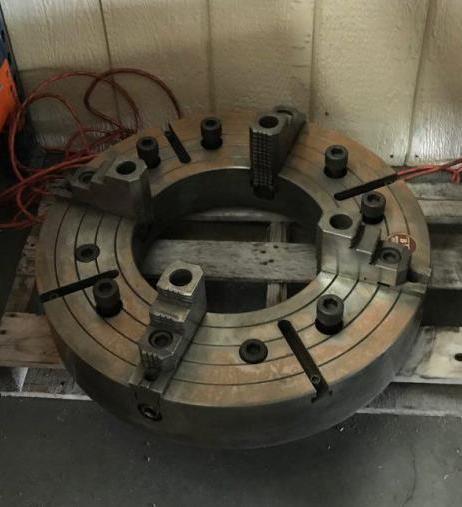

Additional Info.:32" 4-Jaw Manual Chucks
 RS-232 Port
 Chip Conveyor
 Two (2) Speed Geared Head

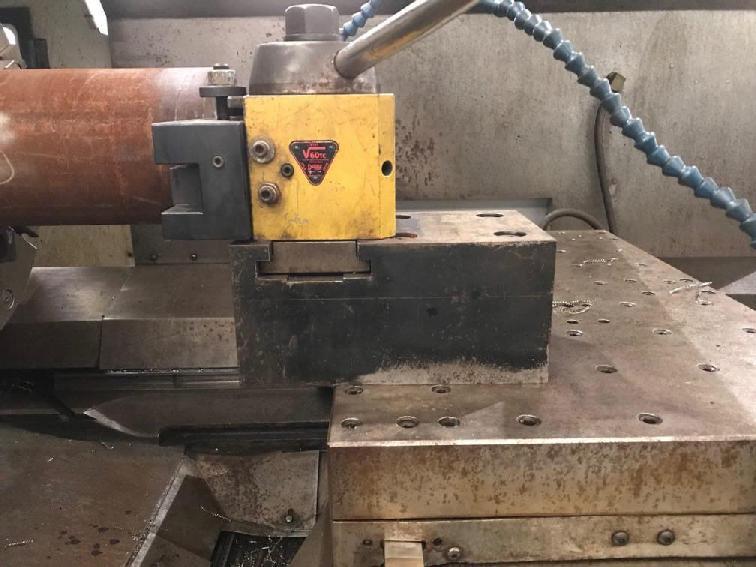

 Quick Change Tool Post

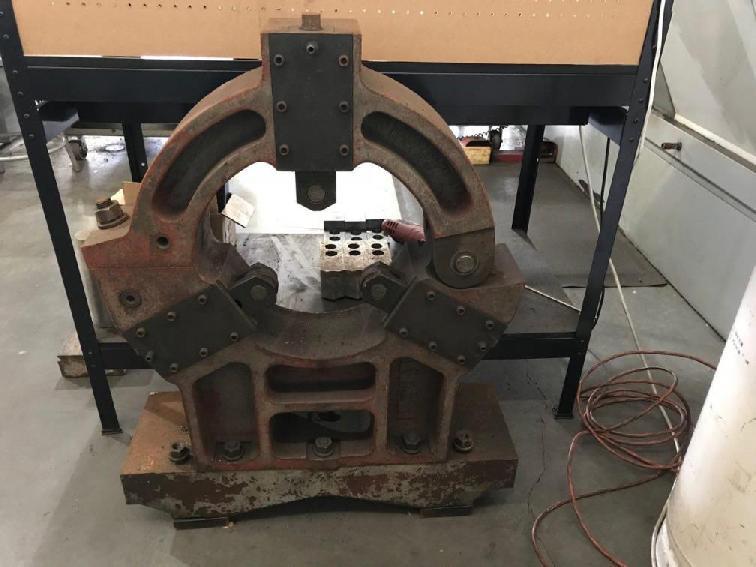

 Manual Steady Rest


Click Here To Print Quote - 16119

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

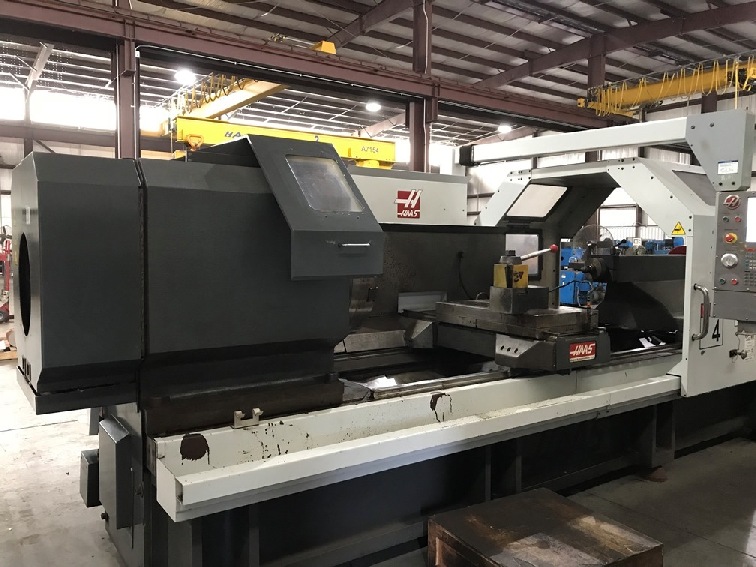

HaasTL-416119http://www.machinetools247.com/images/machines/16119-Haas TL-4.jpg

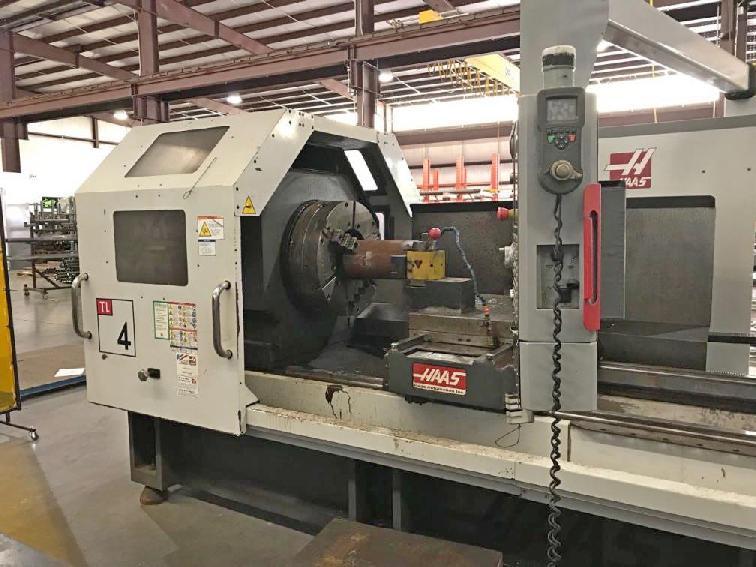

HaasTL-416119http://www.machinetools247.com/images/machines/16119-Haas TL-4 a.jpg

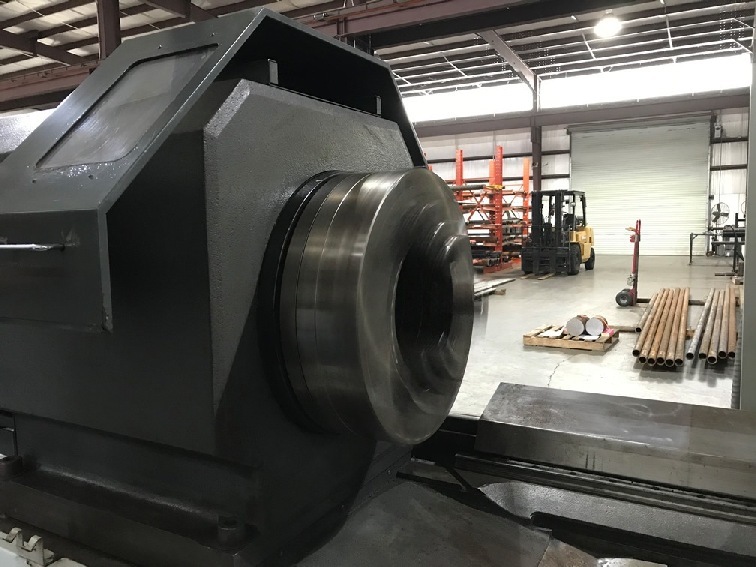

HaasTL-416119http://www.machinetools247.com/images/machines/16119-Haas TL-4 b.jpg
HaasTL-416119http://www.machinetools247.com/images/machines/16119-Haas TL-4 c.jpg
HaasTL-416119http://www.machinetools247.com/images/machines/16119-Haas TL-4 d.jpg
HaasTL-416119http://www.machinetools247.com/images/machines/16119-Haas TL-4 e.jpg
HaasTL-416119http://www.machinetools247.com/images/machines/16119-Haas TL-4 f.jpg
