Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
137131980/2013VDFU1270SFagor 8055

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide / Part Weight50" / 35" / 27,500 Lbs
 Maximum Turning Diameter / Maximum Turning Length32.25" / 118"
 Distance Between Centers282"
Spindle:Spindle Speeds Minimum - Maximum1 - 400 RPM
 Spindle Bore / Bar Capacity / Nose4.09" / 4.09" / A2-15
 Main Motor (30 min / continuous)54 / 40 HP
Turret:Number of Positions (CNC Controlled)8 Stations
Travels:X-Axis Travel18.45"
 Z-Axis Travel282"
Tailstock:Stroke of Body / Quill275" / 7.1"
 Quill Diameter / Taper5.13" / MT # 6
Dimensions:Floor Space (L x W x H)208" x 108" x 98"
 Weight (approx.)49,000 Lbs

 Equipped With
Additional Info.:40" Face Plate
 Chip Conveyor
 Power Tailstock
 Splash and Chip Gaurding
 Color Control With Graphics
 Boring Bar Attachement
 20" Steady Rest
 Remote Jog Handle
 Sliding Headstock - Maximum Swing In Gap 100" x 40"
 Coolant
 DNC Port
 New Spindle Drive (bardac)
 Rebuilt Spindle Motor
 Updated Drives
 Rebuilt Z-Axis Gear Box
 Threading


Click Here To Print Quote - 13713

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

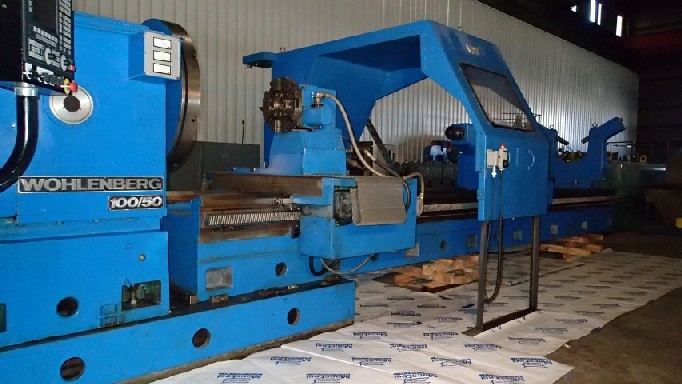

VDFU1270S13713http://www.machinetools247.com/images/machines/13713-VDF U1270S.jpg

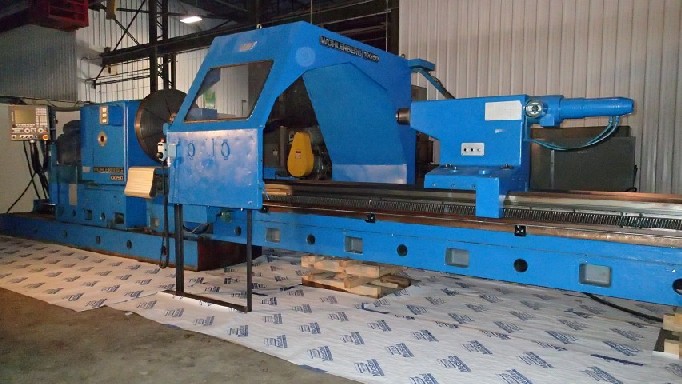

VDFU1270S13713http://www.machinetools247.com/images/machines/13713-VDF U1270S 1.jpg

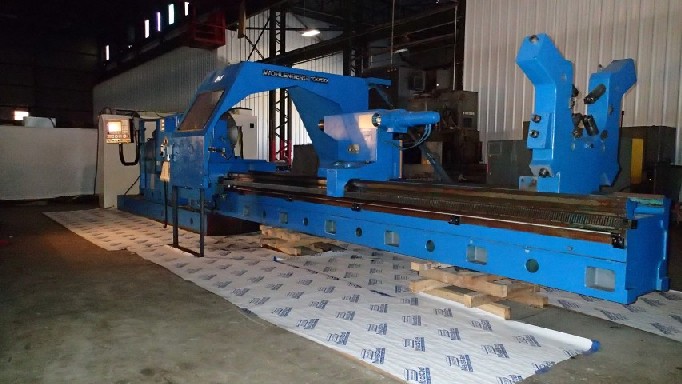

VDFU1270S13713http://www.machinetools247.com/images/machines/13713-VDF U1270S 2.jpg

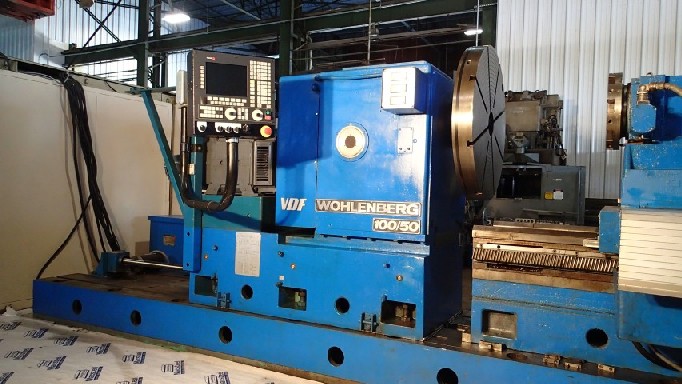

VDFU1270S13713http://www.machinetools247.com/images/machines/13713-VDF U1270S 3.jpg

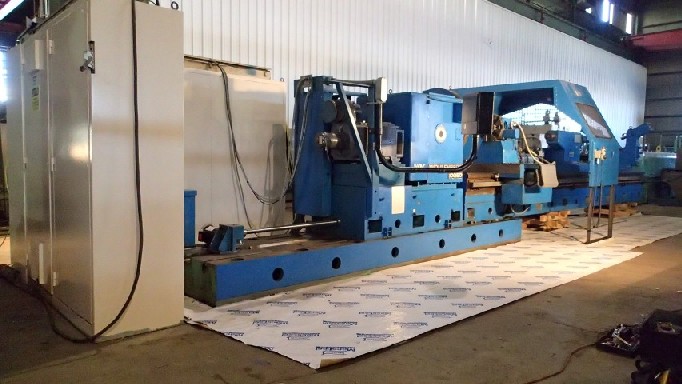

VDFU1270S13713http://www.machinetools247.com/images/machines/13713-VDF U1270S 4.jpg
