Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

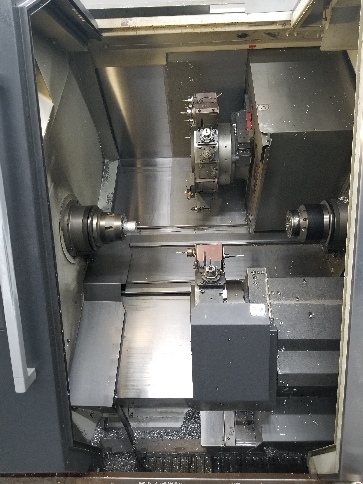

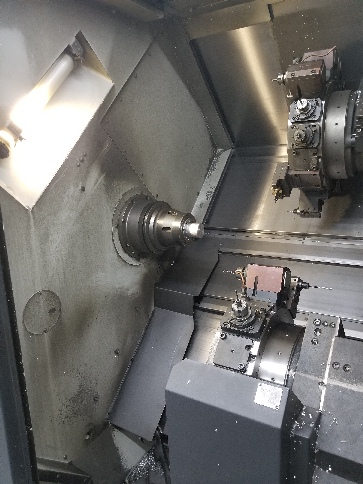

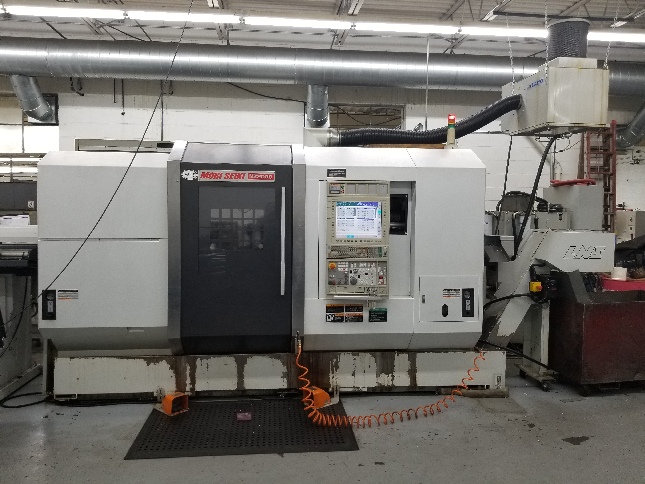

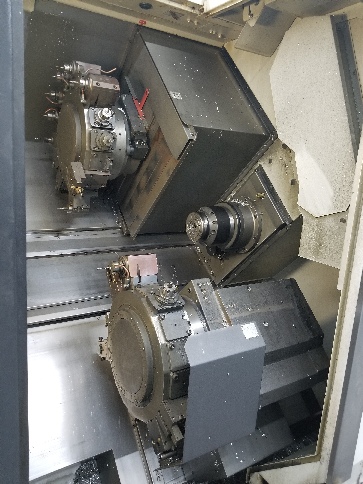

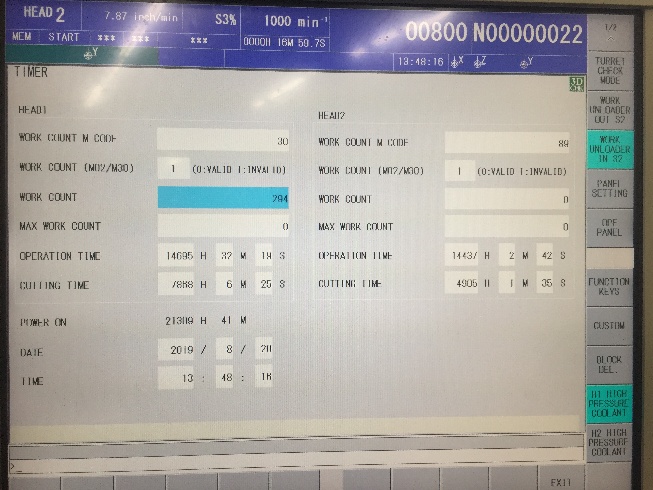

Click Machine ID Number Below to View Photos
16729

Machine ID	Year	Manufacturer	Model	Control
16729	2011	Mori-Seiki	NZ-2000 T2Y2	Mori-Seiki MSX-701 IV

	Description	Spec Values
Capacity:	Swing / Swing Over Cross Slide	31.5" / 12.5"
	Maximum Cutting Diameter / Maximum Turning Length	12.5" / 31.9"
	Distance Between Spindles	44"
Main Spindle:	Speeds	50 - 5,000 RPM
	Spindle Bore / Bar Capacity / Spindle Nose	2.9" / 2.5" / ASA-6
	Main Motor (30 min / continuous)	33 / 29 HP
Sub-Spindle:	Speeds	50 - 5,000 RPM
	Spindle Bore / Bar Cap / Spindle Nose	2.9" / 2.5" / ASA-6
	Motor (30 min. / cont.)	33 / 29 HP
Turrets:	Number of Positions (turret one / turret two) All Live	16 Tools Each All Live
Travels:	X-Axis Travel (turret one / turret two)	8.3" / 8.3"
	Z-Axis Travel (turret one / turret two)	31.9" / 31.9"
	Y-Axis Travel (turret one)	4.3"
	B-Axis Travel (sub-spindle)	36.2"
Rotary Tools:	Rotary Tool Speed	60 - 6,000 RPM
	Rotary Tool Motor (turret one / turret two)	10 / 7.5 HP
Rapids:	Rapid Traverse (X / Z / Y)	1,181 / 1,968 / 1,024 IPM
	Sub Spindle Rapid Traverse	1,574 IPM
Dimensions:	Floor Space (L x W x H)	156" x 146" x 94"
	Weight (approx)	20,000 Lbs

	Equipped With
Additioanl Info.:	8" Kitagawa BB-208 Hydraulic Chucks Both Spindles
	CAPPS Conversational Programming
	Work Piece Unloader / Single Hand (Right Spindle)
	Manual Tool Presetter Both Turrets
	Parts Exit Conveyor
	Y-Axis Milling Capability on Upper Turret
	Coolant Through Turrets (1,000 psi)
	Turbo Chip Conveyor
