Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

Click Machine ID Number Below to View Photos
16554

Machine ID	Year	Manufacturer	Model	Control

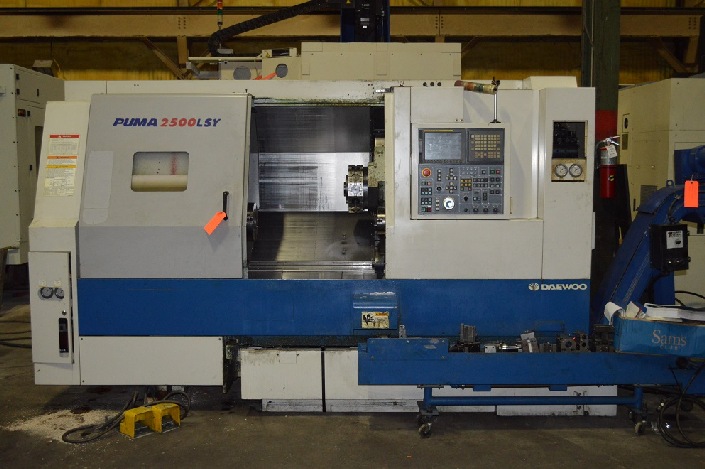

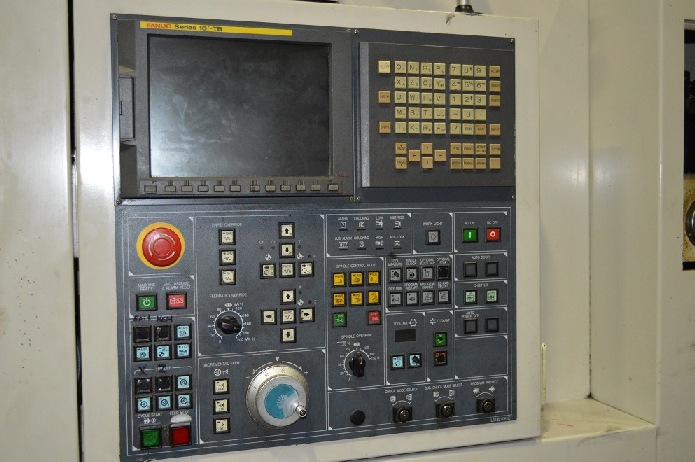

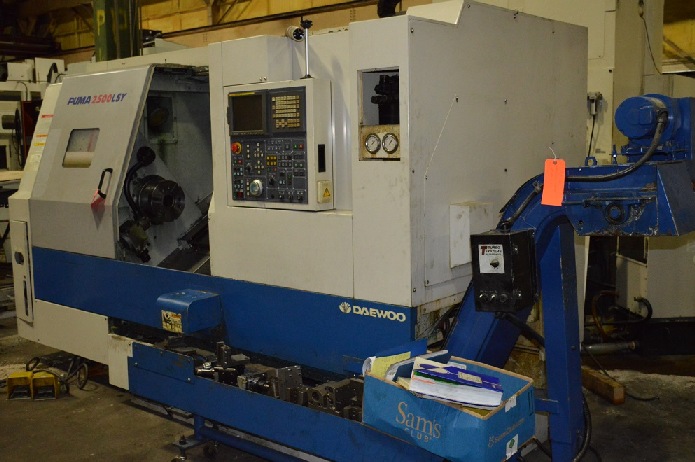

16554	2005	Daewoo	Puma-2500 LSY	Fanuc 18iTB

	Description	Spec Values
Capacity:	Swing / Swing Over Cross Slide	23.62" / 21.65"
	Maximum Turning Diameter Main / Sub	12.9" / 10.24"
	Maximum Turning Length / Distance Between Spindles	29.5" / 43.7"

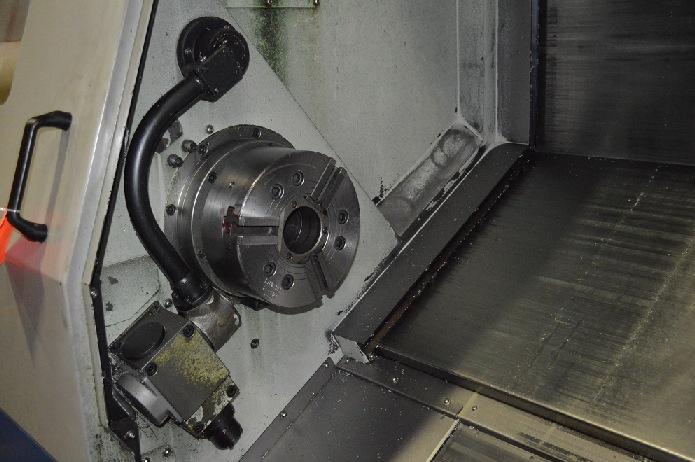

Main Spindle:	Speeds	35 - 3,500 RPM
	Spindle Bore / Bar Cap / Spindle Nose	3.385" / 2.992" / A2-8
	Motor (30 min. / cont.)	30 / 25 HP

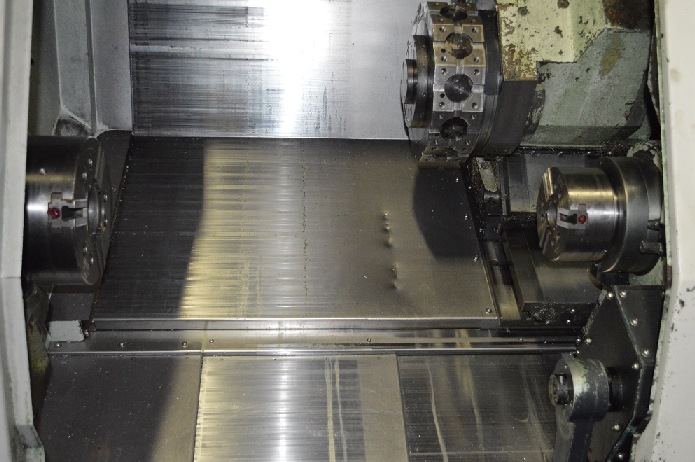

Sub-Spindle:	Speeds	60 - 6,000 RPM
	Spindle Bore / Bar Cap / Spindle Nose / Indexing	1.77" / 1.275" / A2-5
	Motor (30 min. / cont.)	10 / 7.5 HP

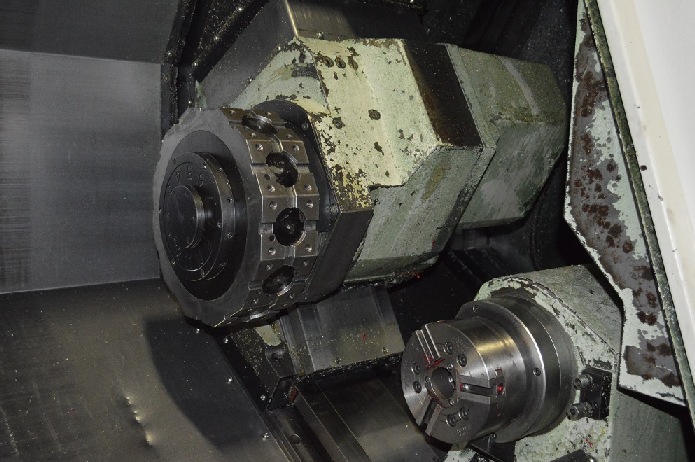

Turrets:	Number of Positions	12 Stations
Travels:	X-Axis Travel	9.8"
	Z-Axis Travel	32.67"
	Y-Axis Travel	3.93" +/-
	B-Axis Travel (sub-spindle)	32.67"
	C-Indexing	360,000°
Rotary Tools:	Rotary Tool Speed	6,000 RPM
	Rotary Tool Motor	5 HP
Rapids:	Rapid Traverse (X / Z / Y)	787 / 945 / 295 IPM
	Sub Spindle Rapid Traverse	787 IPM
Dimensions:	Floor Space (L x W x H)	140" x 67" x 82"
	Weight (approx)	12,000 Lbs

	Equipped With
	Parts Catcher
	Parts Conveyor
	Ethernet Port
	RS-232 Port
	Bar Feedd Interface

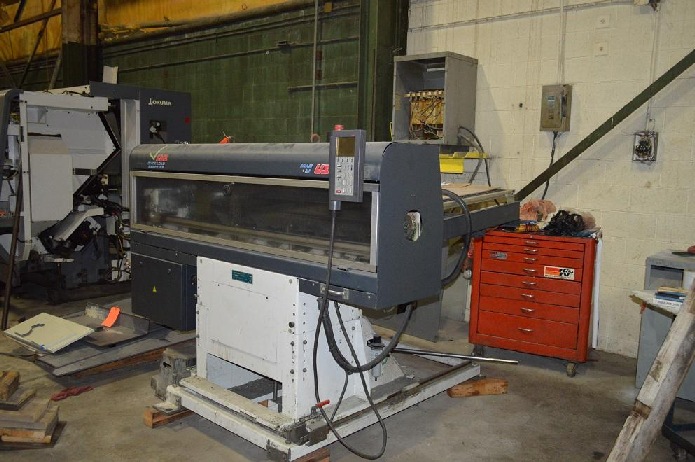

	LNS Quick Load Feed
Additional Info.:	10" 3-Jaw Hydraulic Chuck Main, 6" 3-Jaw Hydraulic Chuck Sub
	Tool Setter
	Chip Conveyor
	Tool Life Management
	Rigid Tapping
