Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

Click Machine ID Number Below to View Photos
16377

Machine IDYearManufacturerModelControl

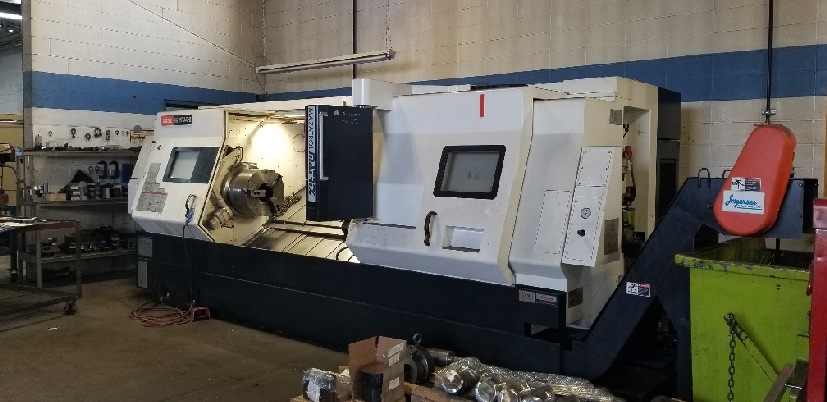

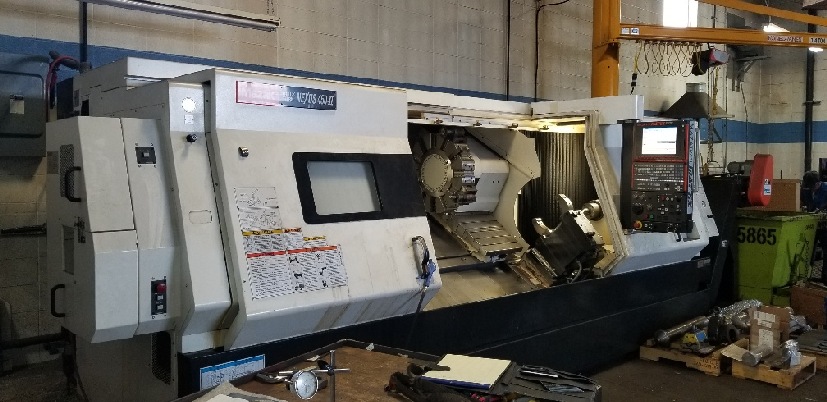

163772011MazakQuick Turn Nexus-450 IIMazatrol Matrix
 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide33.268" / 24.2"
 Maximum Turning Diameter / Maximum Turning Length22.835" / 83.55"
 Distance Between Centers84"
Spindle:Spindle Speeds Minimum - Maximum4 - 2,000 RPM
 Spindle Bore / Bar Capacity / Nose7.23" / 7.23" / A2-15
 Main Motor (30 min / continuous)50 / 45 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel13.375"
 Z-Axis Travel83.55"
Tailstock:Stroke of Body / Quill72.5" / 5.1"
 Quill Diameter / Taper4.13" / MT #5
Rapids:Rapid Traverse (X & Z )1,181 IPM
Dimensions:Floor Space (L x W x H)200" x 90" x 80"
 Weight (approx.)20,000 Lbs

 Equipped With

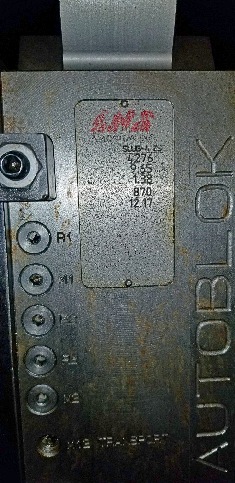

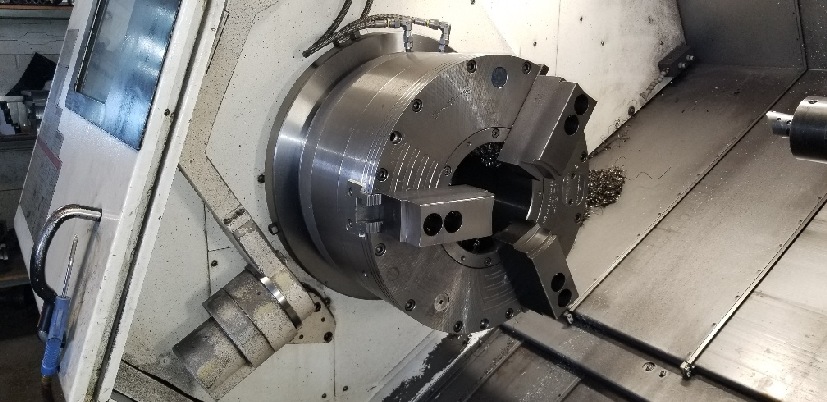

Additional Info.:18" 3-Jaw Air Chuck (autoblock ep460-185)
 Conversational Programming
 Graphic Display
 Chip Conveyor
 NC Controlled Programmable Tailstock (ball screw)

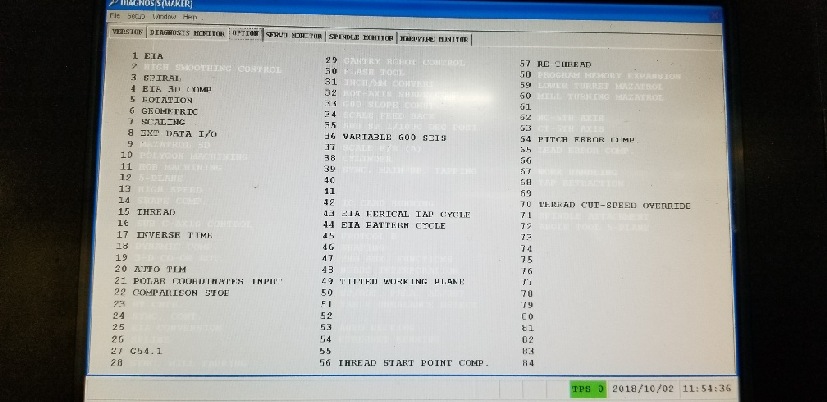

 EIA / ISO Input Function
 Auto Tool Length Measurement
 Thread Variable
 User Macros
 EIA Pattern Cycle
 Helical Tap Cycle
 Thread-Cut Speed Override
 Spiral, EIA 3D Compensation
 Threading Start Point Compensation
 Geometric
 Polar Coordinate Input
 Pitch Error Compensation

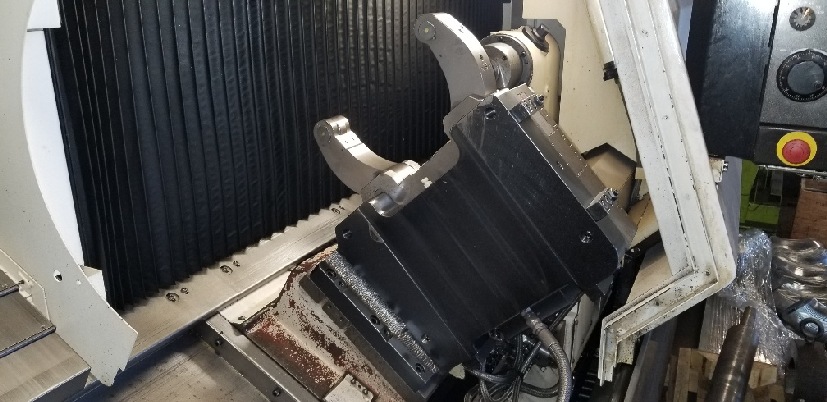

 Hydraulic Steady Rest
