Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

Click Machine ID Number Below to View Photos
16283

Machine ID	Year	Manufacturer	Model	Control

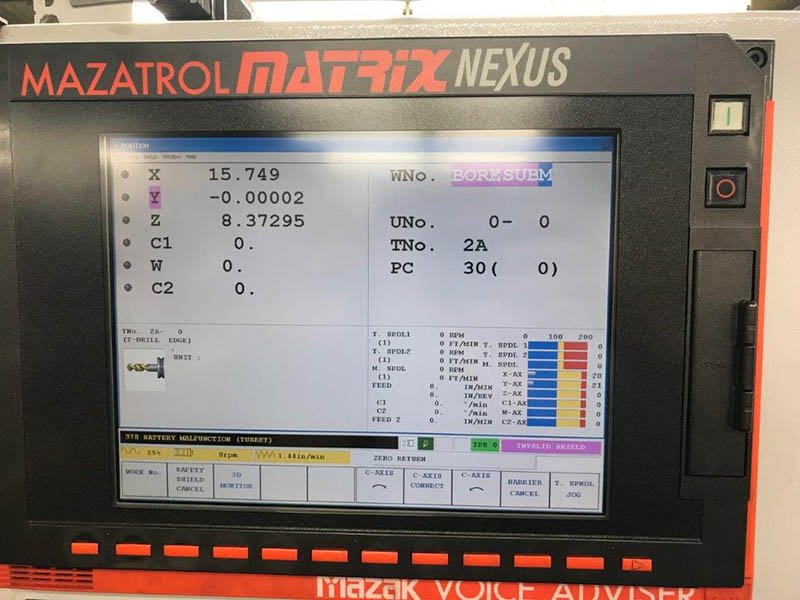

16283	2007	Mazak	Quick Turn Nexus-250 MSY	Mazatrol Fusion 640 T

	Description	Spec Values
Capacity:	Maximum Swing / Swing Over Cross Slide	26.5" / 16.04"
	Maximum Turning Diameter / Length	14.75" / 21.27"
Main Spindle:	Speeds	40 - 4,000 RPM
	Spindle Bore / Bar Cap / Spindle Nose	3.46" / 3" / A2-86
	Motor (30 min / continuous)	35 / 30 HP

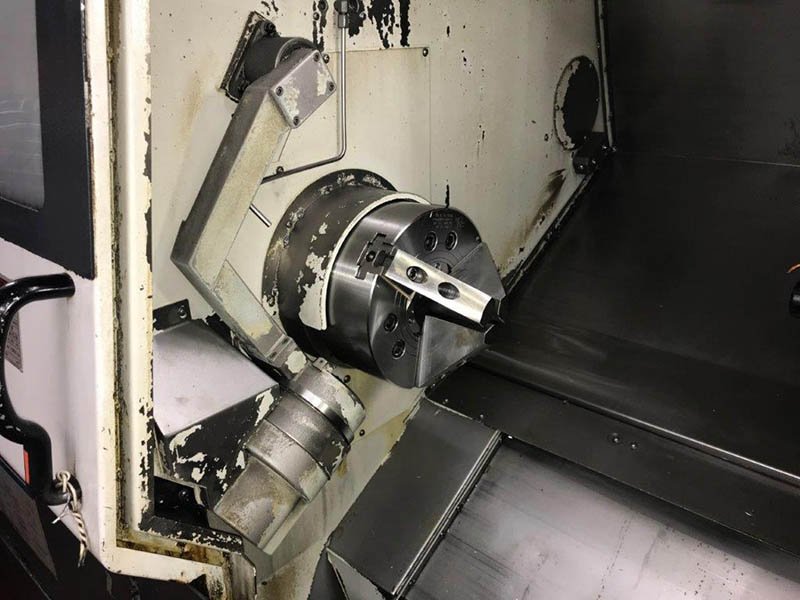

Sub Spindle:	Speeds	60 - 6,000 RPM
	Spindle Bore / Bar Cap / Spindle Nose	1.22" / .85" / A2-6
	Motor (30 min / continuous)	15 / 10 HP

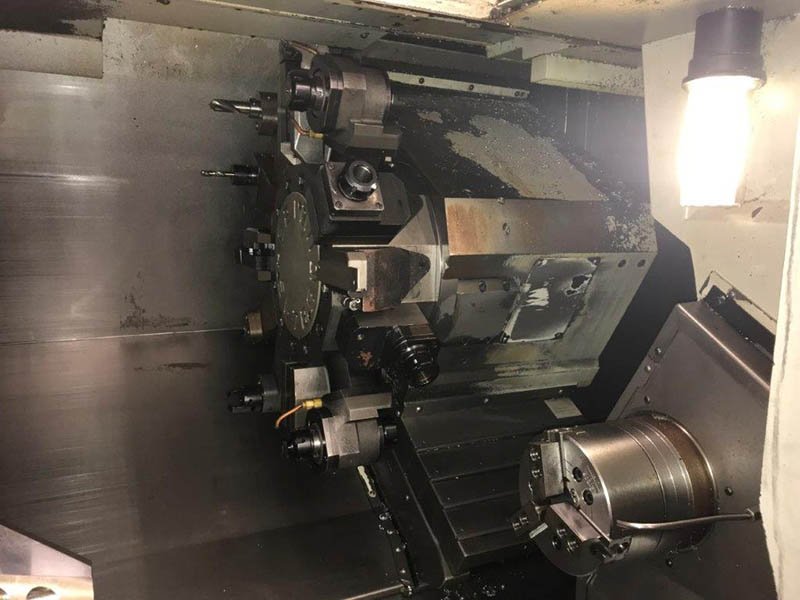

Turret:	Number of Positions	12 Positions - All Live
Travels:	X-Axis Travel	9"
	Z-Axis Travel	22.63"
	Y-Axis Travel	+/- 2"
	B-Axis Travel (sub-spindle)	22.701"
	C-Axis Indexing	360,000°
Rotary Tools:	Rotary Tool Speed	0 - 4,500 RPM
	Rotary Tool Motor	7.5 HP
Rapids:	Rapid Traverse (X, Z & B / Y )	1,181 / 826 IPM
Dimensions:	Floor Space	119" x 70" x 75"
	Weight (approx)	12,000 Lbs

	Equipped With

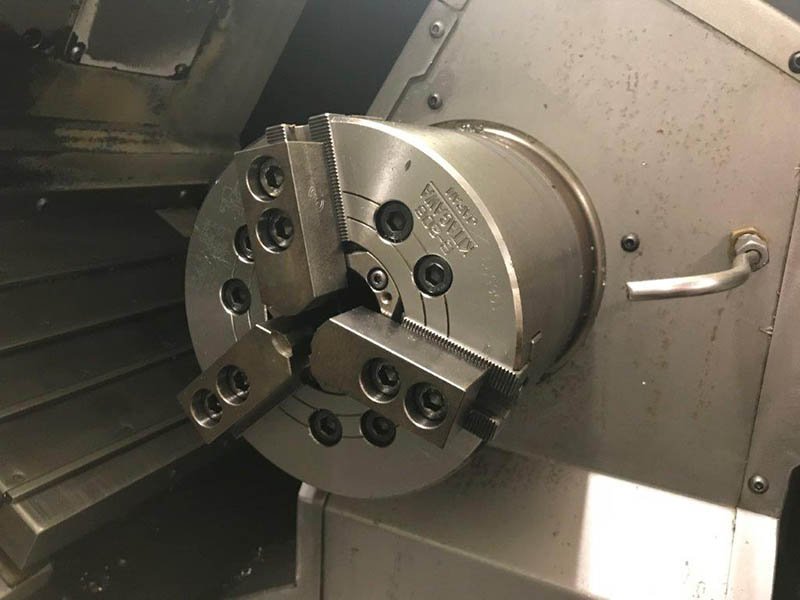

Additional Info.:	10" 3-Jaw Hydraulic Chuck Main Spindle, 6" 3-Jaw Hydraulic Chuck Sub
	Automatic Tool Eye
	Chip Conveyor
	RS-232 Interface
	Background Tool Path Check
	EIA 3D Comparison
	Floppy Disk
	Scaling
	Live Holders
	Tool Breakage Detection
	Tool Wear Compensation
	Transformer
	Threading
	Synchronous Mill Tapping
	EIA Helica Tapping
	Auto Peck Threading
	Polar Coordinate Input
	EIA Pattern Cycle
	C-Axis Both Spindles
