Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

Click Machine ID Number Below to View Photos
16177

Machine IDYearManufacturerModelControl

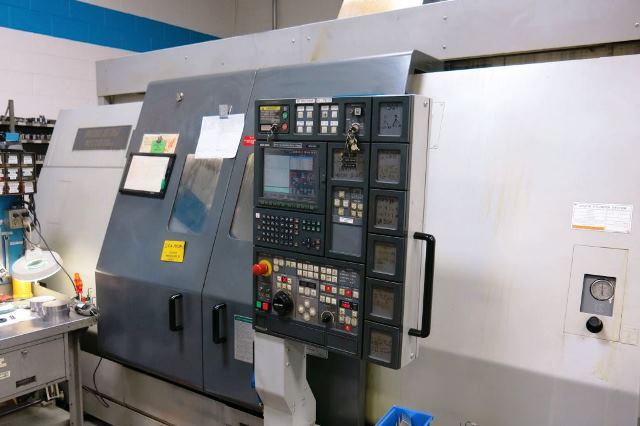

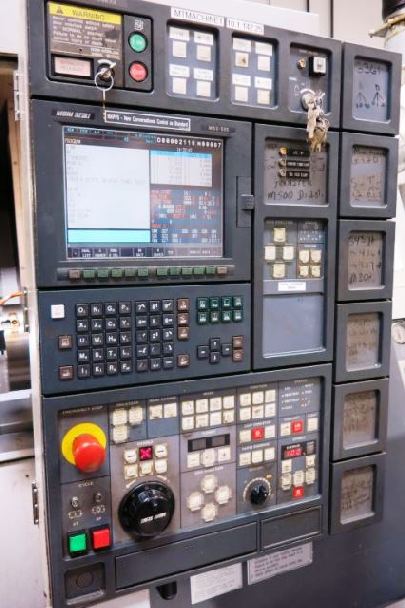

161772004Mori-SeikiMT-2000 AISMori-Seiki MSX-501 (Fanuc 18iT)
 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle33.4" / 17.3 / 29.9"
 Maximum Turning Diameter Main / Sub21.6" / 21.6"
 Maximum Turning Length / Distance Between Spindles40.1" / 50.5"
Main Spindle:Speeds40 - 4,500 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.9" / 2.5" / A2-6
 Motor (30 min. / cont.)30 / 20 HP
Sub-Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.2" / 1.75" / A2-5
 Motor (30 min. / cont.)20 / 10 HP
Turrets:Number of Positions - Turret / ATC12 Stations / 120 ATC
Travels:X-Axis Travel (main spindle)22.5"
 Z-Axis Travel42.4"
 Y-Axis Travel3.1" +/-
 B-Axis Travel (Gimble Head)120° +/-
 C-Indexing360,000°
Rotary Tools:Rotary Tool Speed12,000 RPM
 Rotary Tool Motor10 HP
Rapids:Rapid Traverse (X & Z, Y / C)945 / 629 / 300 IPM
 Sub Spindle Rapid Traverse787 IPM
Dimensions:Floor Space (L x W x H)131" x 66" x 72"
 Weight (approx)28,000 Lbs

 Equipped With

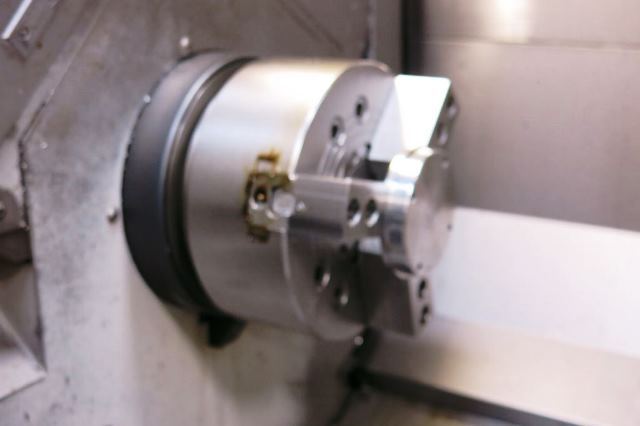

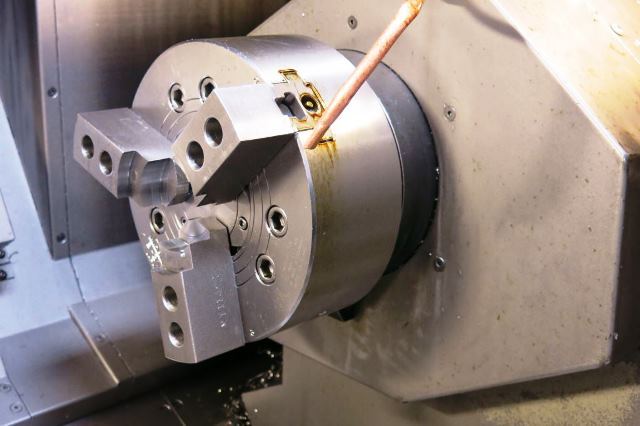

Additional Info.:8" 3-Jaw Chuck On Main Spindle, 6" 3-Jaw Chuck On Sup Spindle

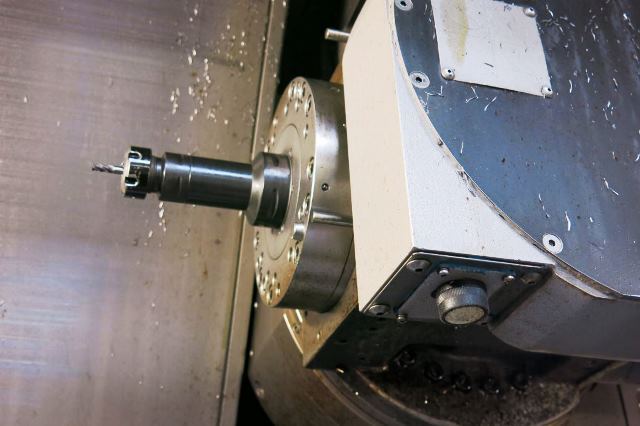

 Rigid Tapping Milling Head
 Cylindrical and Helical Interpolation
 MAPPS II Programming

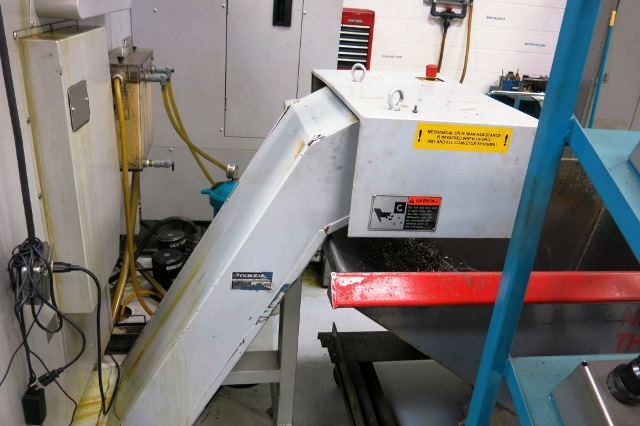

 Chip Conveyor
 64 Tool Off-Sets
 Capto Tool Holders
 Parts Catcher
