Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

Click Machine ID Number Below to View Photos
16102

Machine ID	Year	Manufacturer	Model	Control

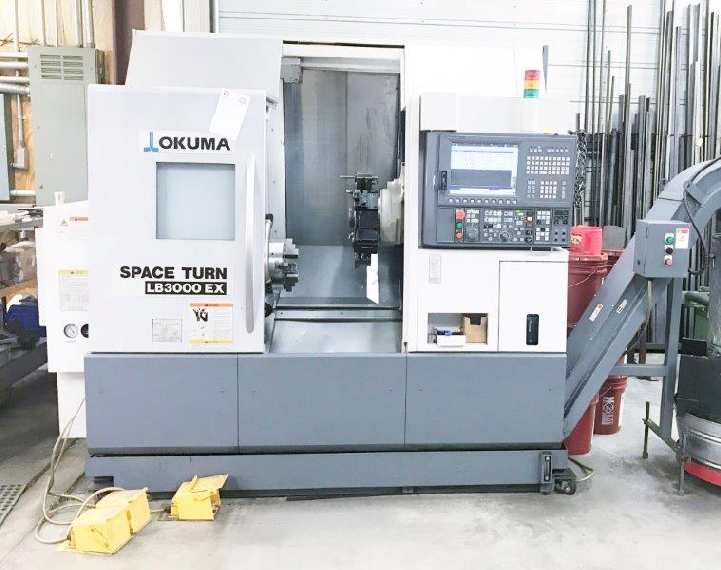

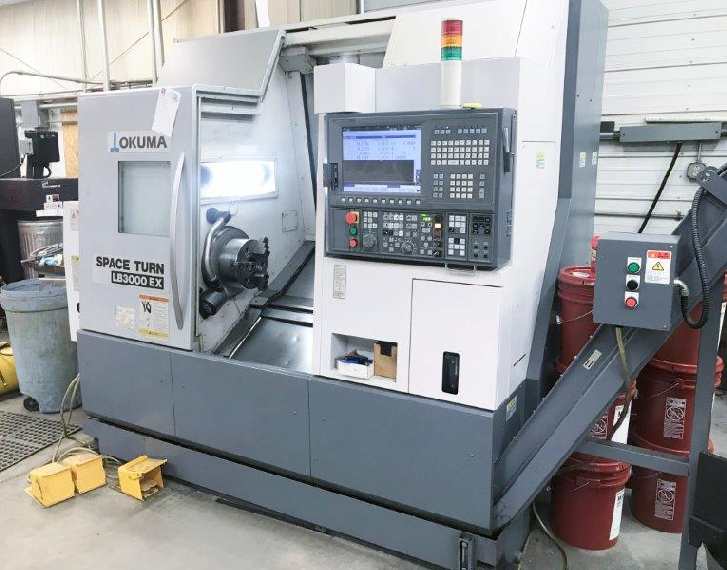

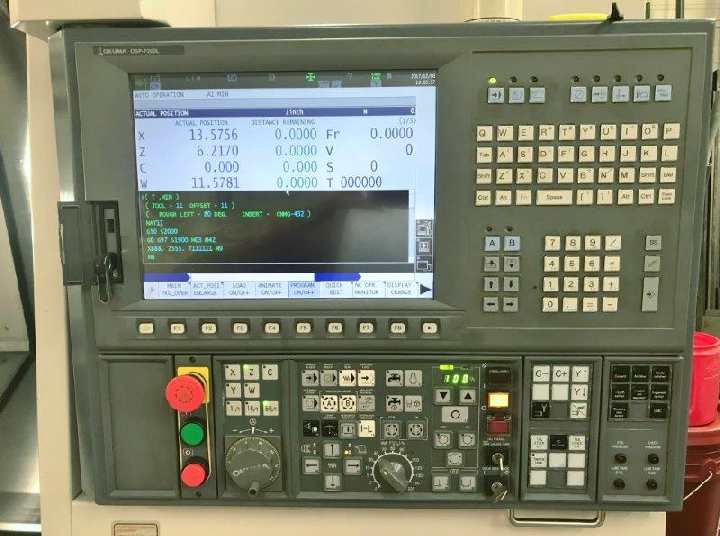

16102	2008	Okuma	LB-3000 EX MY	OSP-P200L

	Description	Spec Values
Capacity:	Swing / Swing Over Cross Slide	22.38" / 18.5"
	Maximum Turning Diameter / Maximum Turning Length	13.4" / 22.24"
	Distance Between Centers	26.3"
Spindle:	Spindle Speeds Minimum - Maximum	42 - 4,200 RPM
	Spindle Bore / Bar Capacity / Nose	3.15" / 2.5" / A2-8
	Main Motor (30 min / continuous)	30 / 20 HP

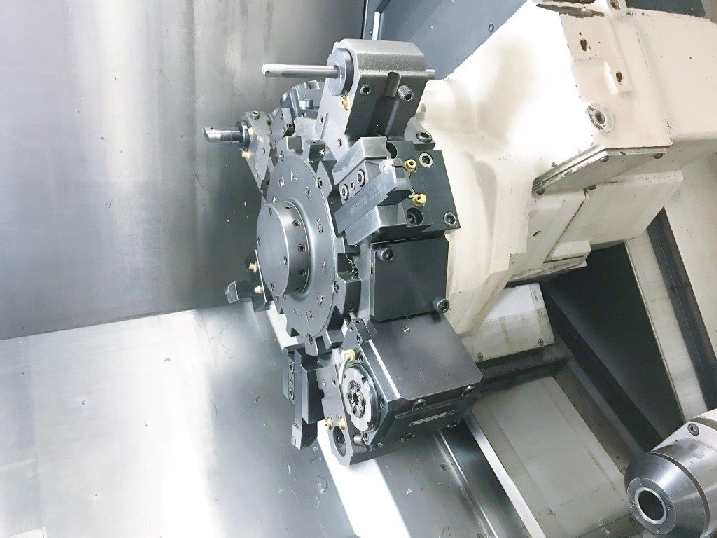

Turret:	Number of Positions	12 Stations
Travels:	X-Axis Travel	10.24"
	Z-Axis Travel	22.24"
	Y-Axis Travel	4.72" +/-
Rotary Tools:	Rotary Tool Speed	20 - 6,000 RPM
	Rotary Tool Motor (30 min. / continuous)	10 / 5 HP
Tailstock:	Stroke of Body / Quill	19.3" / 4.72"
	Quill Diameter / Taper	3.54" / MT #5
Rapids:	Rapid Traverse (X / Z )	984 / 1,181 IPM
Dimensions:	Floor Space (L x W x H)	108" x 74" x 76"
	Weight (approx.)	13,000 Lbs

	Equipped With

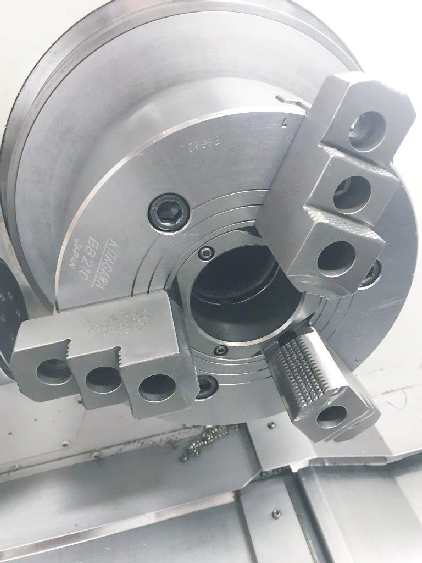

Additional Info.:	10" 3-Jaw Kitagawa Hydraulic Chuck
	RS-232 Port
	Chip Conveyor
	Touch Setter
	Programmable Tailstock

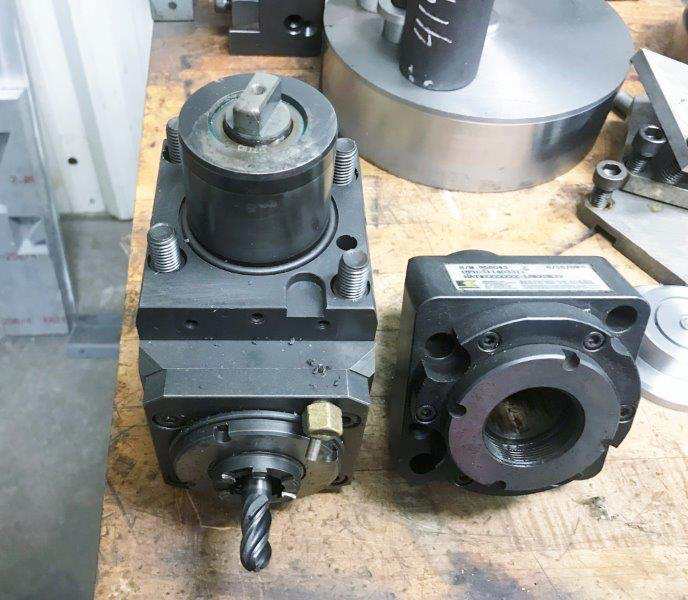

	Live Holders
	Synchronous Tapping
	Lap 4
	Tool Wear Compensation
	Spindle Orientation
	3D Animation
	Tool Life Management
	M-Axis Orientation
	Thermal Compensation
	HI-G Control
	Pitch Error Compensation
	Turret Position Compensation
