Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

Click Machine ID Number Below to View Photos
15760

Machine ID	Year	Manufacturer	Model	Control

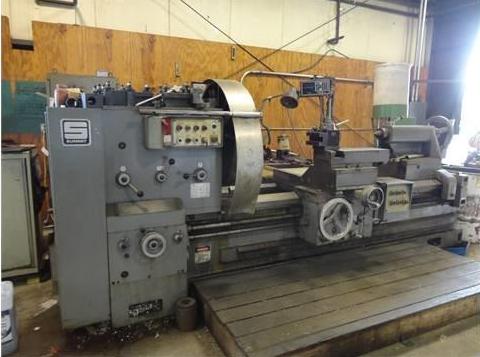

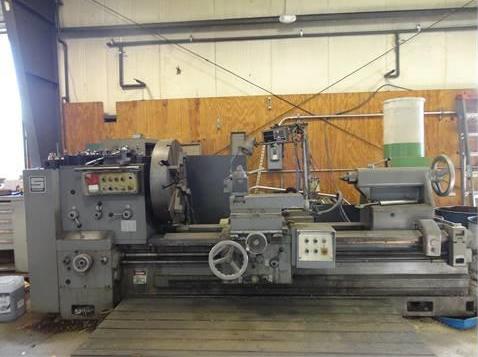

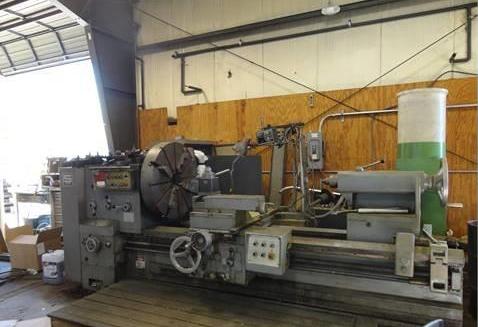

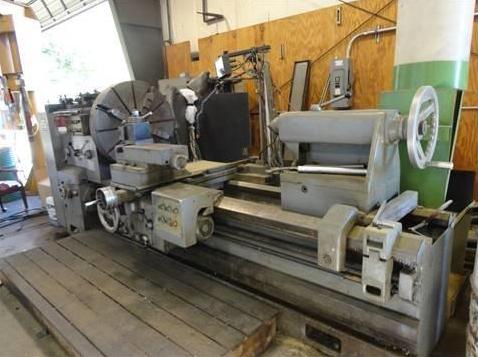

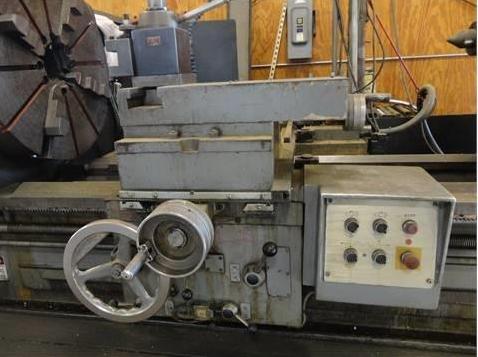

15760	1993	Summit	40DC

	Description	Spec Values
Capacity:	Swing Over Bed / Swing Over Cross Slide	40" / 26.25"
	Swing in Gap / Length of Gap	52.25" / 15.75"
	Distance Between Centers	80"
Spindle:	Spindle Speeds Minimum - Maximum (12)	22 - 500 RPM
	Main Motor (HP)	30 HP
	Spindle Bore / Through Hole	5.5" / 5.5" / D1-8
	Thread Range Metric (54) / Inch (64)	0.75 - 643mm / .5625 - 64
	Feed Range Longitudinal / Cross (60) IPR	.0054 - 5.6 / .0027 - 2.8
Tailstock:	Stroke of Body / Quill	72" / 8 7/8"
	Quill Diameter / Taper	3" / MT # 5
Dimensions:	Floor Space (L x W x H)	158" x 73" x 70"
	Weight (approx.)	15,000 Lbs

	Equipped With
Additional Info.:	33.5" 4-Jaw Chuck
	Thread Chasing Dial

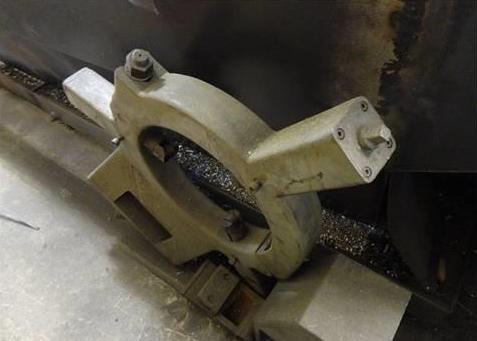

	Follow Rest
	Taper Attachement
	Power Rapid Traverse

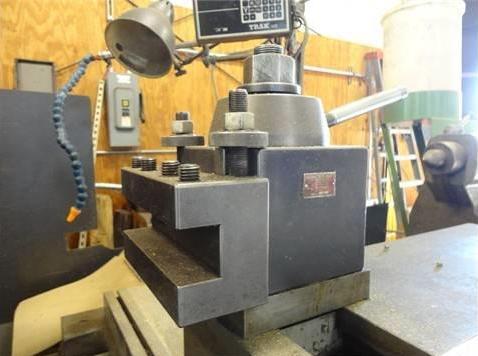

	Aloris Tool Post
	Coolant Pump

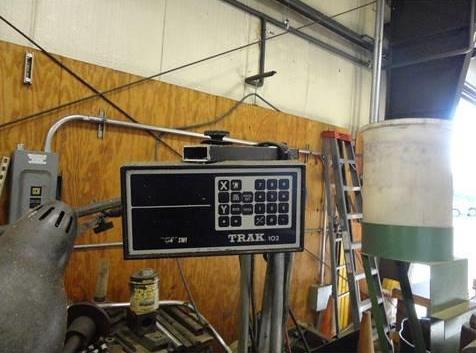

	Trak Two (2) Axis DRO
	Spedester Digital DC Drive
