At Machine Tools 24-7 we never stop working to serve your machine tool needs

Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

Click Machine ID Number Below to View Photos
15527

Machine IDYearManufacturerModelControl

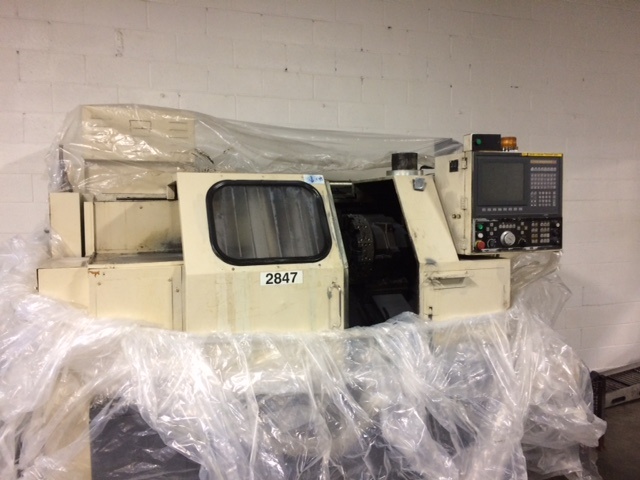

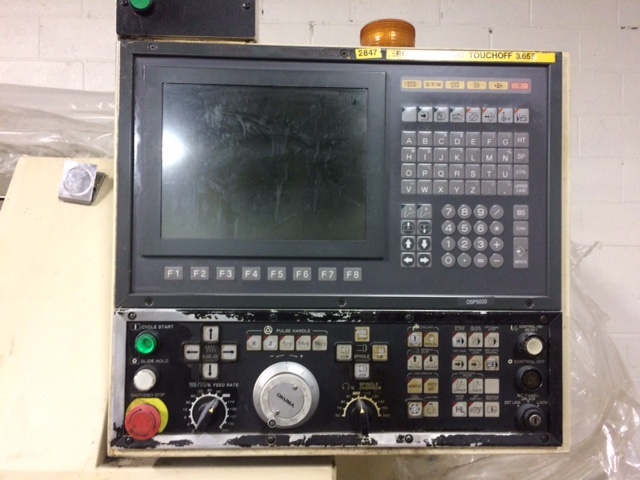

155271996OkumaLB-15 II BBOSP-5020L
 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide15.75" / 8.27"
 Maximum Turning Diameter / Maximum Turning Length9.84" / 19.69"
 Distance Between Centers22"
Spindle:Spindle Speeds Minimum - Maximum30 - 3,800 RPM
 Spindle Bore / Bar Capacity / Nose3.15" / 2.75" / A2-8
 Main Motor (30 min / continuous)30 / 20 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel5.91"
 Z-Axis Travel20.47"
Tailstock:Stroke of Body / Quill16" / 3.1"
 Quill Diameter / Taper3.13" / MT #4
Rapids:Rapid Traverse (X & Z )591 IPM
Dimensions:Floor Space (L x W x H)96" x 70" x 62"
 Weight (approx.)9,000 Lbs

 Equipped With
Additional Info.:10” 3-Jaw Chuck
 Hydraulic Tailstock
 IGF

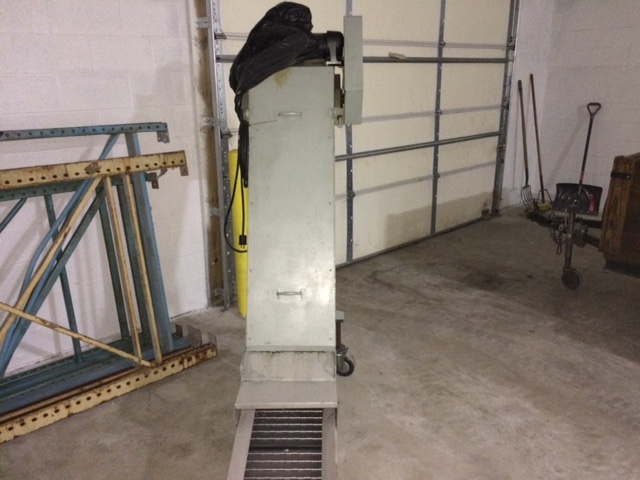

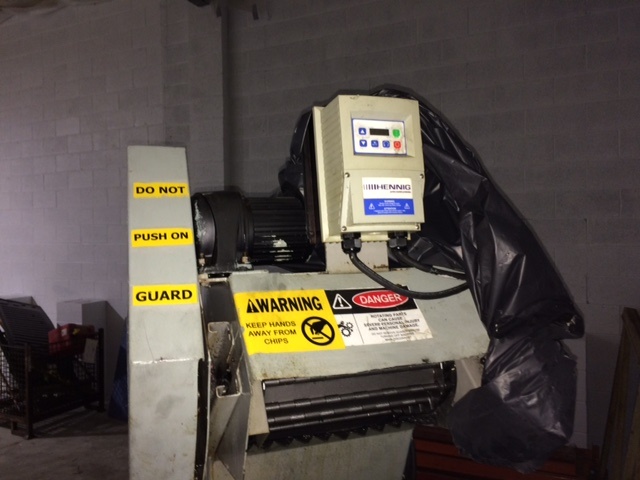

 Chip Conveyor
 Lap 4
 Auto Chamfer
 Animation
 Thread Point Off-Sets
 Two (2) Spare M-Codes
 MacMan
 User Task II
 Cycle Time Reduction
 60M Tape Storage

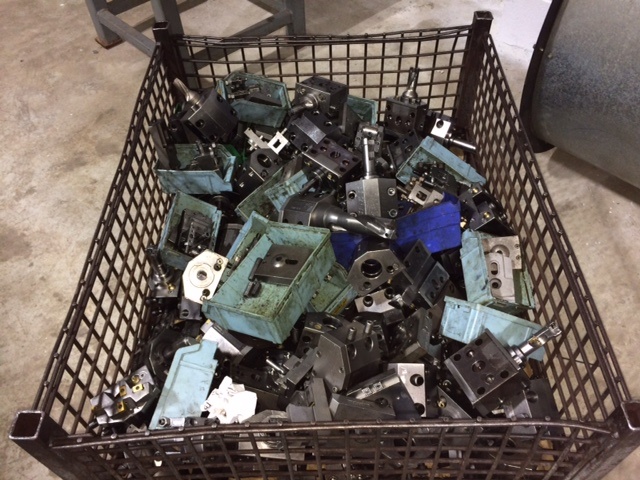

 Tooling









Contact Us For All Your Machine Tool Needs.  We, Buy, Sell and Trade All Types of Machine Tools.

Let Us Know If You Have Any Machines For Sale

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.

ManufacturerModelMachine IDMachine Photos
OkumaLB-15 II BB15527http://www.machinetools247.com/images/machines/15527-Okuma LB-15 II BB.jpg
OkumaLB-15 II BB15527http://www.machinetools247.com/images/machines/15527-Okuma LB-15 II BB 1.jpg
OkumaLB-15 II BB15527http://www.machinetools247.com/images/machines/15527-Okuma LB-15 II BB 2.jpg
OkumaLB-15 II BB15527http://www.machinetools247.com/images/machines/15527-Okuma LB-15 II BB 3.jpg
OkumaLB-15 II BB15527http://www.machinetools247.com/images/machines/15527-Okuma LB-15 II BB 4.jpg
OkumaLB-15 II BB15527http://www.machinetools247.com/images/machines/15527-Okuma LB-15 II BB 5.jpg
