Below are the specs we have on file for this machine. Please contact Machine Tools 24-7 if you have any questions.

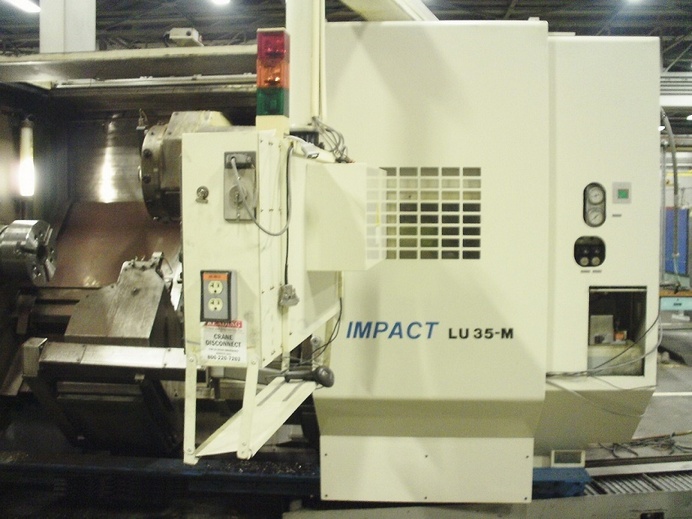

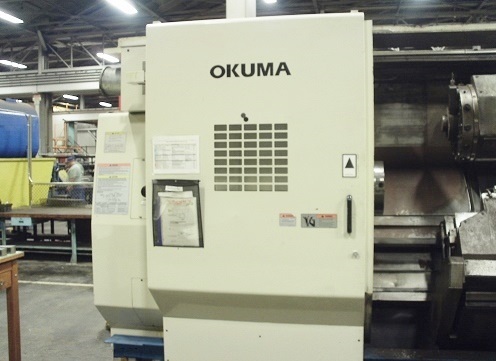

Click Machine ID Number Below to View Photos
14678

Machine ID	Year	Manufacturer	Model	Control

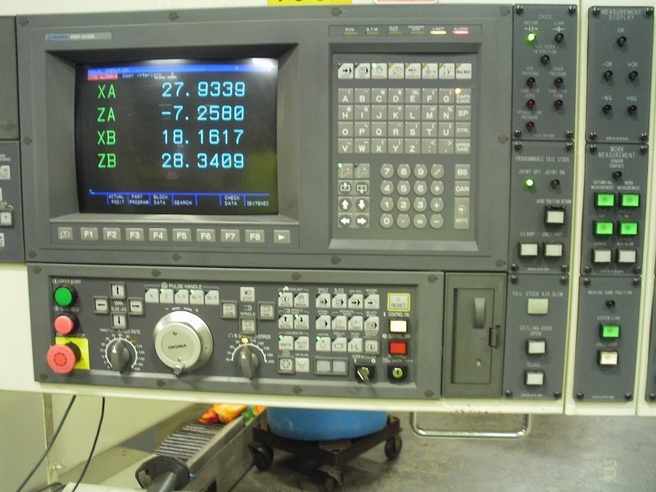

14678	1999	Okuma	LU-35 M 2SC - 850	OSP-U100L

	Description	Spec Values
Capacity:	Maximum Swing / Swing Over Carriage / Length	29.13" / 18.90" / 36.22"
	Maximum Turning Diameter Upper / Lower	21.65" / 14.17"
Main Spindle:	Speeds	14 - 3,200 RPM
	Spindle Bore / Bar Cap / Spindle Nose	3.54" / 3.15" / A2-8
	Motor (30 min. / cont.)	50 / 40 HP
Turrets:	Number of Positions (turret one / turret two)	12 / 10 Tools Each
Travels:	X-Axis Travel (turret one / turret two)	14.96" / 9.84"
	Z-Axis Travel (turret one / turret two)	36.22" / 34.44"
Rotary Tools:	Rotary Tool Speed	20 - 2,000 RPM
	Rotary Tool Motor (30 min. / continuous)	7 / 5 HP
Rapids:	Rapid Traverse (X / Z)	591 / 787 IPM
Tailstock:	Stroke of Body / Quill	28" / 6.69"
	Quill Diameter / Taper	4.72" / # 5 MT
Dimensions:	Floor Space (L x W x H)	147" x 102" x 90"
	Weight (approx)	30,000 Lbs

	Equipped With
Additional Info.:	15" 3-Jaw Hydraulic Chuck
	Chip Conveyor
	Hydraulic Steady Rest
	RS-232 Port
	Cycle Time Reduction
	Animation
	MacMan
	Lap 4
	Nose Radius Compensation 2B
	Programmable Tailstock
	User Task 2
	Tool Life Management
	Cycle Time Calculation
	Inch / Metric Switchable
	RS-232C Port
	Chip Conveyor
	Expanded Auto Chamfering

Let Us Know If You Have Any Machines For Sale
