Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

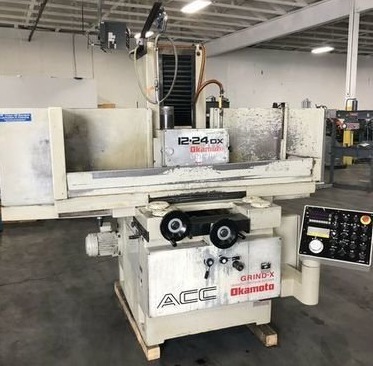

166352000OkamotoACC-1224 DX

 DescriptionSpec Values
Capacity:Chuck Length x Width24" x 12" / 925 Lbs
 Maximum Height Under Wheel13.6"
Travels:X-Longitudinal29.5"
 Y-Cross13.5"
Grinding Wheel:Wheel Diameter / Width / Hole12" / 1.5" / 5"
Motor:Spindle Motor / RPM5 HP / 1,800 RPM
 Hydraulic Motor5 HP
Feeds:Feed Rate Table / Cross0 - 82 / 4 - 40 FPM
Dimensions:Floor Space (L x W x H)108" x 78" x 70"
 Weight (approx.)5,600 Lbs

 Equipped With

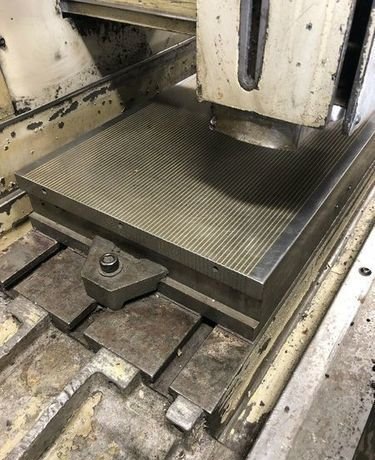

Additional Info.:12" x 24" Magnetic Chuck
 Choice of Versatile Grinding Patterns
 Programmable Incremental Downfeed
 Coolant System With Separator
 Sparkout
 Single Line DRO
 Servo Downfeed


Click Here To Print Quote - 16635

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos
OkamotoACC-1224 DX16635http://www.machinetools247.com/images/machines/16635-Okamoto ACC-1224 DX.jpg
OkamotoACC-1224 DX16635http://www.machinetools247.com/images/machines/16635-Okamoto ACC-1224 DX 1.jpg
OkamotoACC-1224 DX16635http://www.machinetools247.com/images/machines/16635-Okamoto ACC-1224 DX 2.jpg
OkamotoACC-1224 DX16635http://www.machinetools247.com/images/machines/16635-Okamoto ACC-1224 DX 3.jpg
OkamotoACC-1224 DX16635http://www.machinetools247.com/images/machines/16635-Okamoto ACC-1224 DX 4.jpg
OkamotoACC-1224 DX16635http://www.machinetools247.com/images/machines/16635-Okamoto ACC-1224 DX 5.jpg
