Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
155031974TarnowTUJ

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Cross Slide22" / 14.5"
 Swing in Gap / Length of Gap31.5" / 11.25"
 Distance Between Centers70"
Spindle:Spindle Speeds Minimum - Maximum20 - 1,800 RPM
 Main Motor (HP)6.7 HP
 Spindle Bore / Through Hole3.5" / 3.5" / D1-11
 Thread Range Inch1/4 - 56 TPI / .5 - 112MM
 Feed Rates - Longitudinal.0007" - .720" IPR
 Feed Rates - Cross.0004" - .360" IPR
Tailstock:Stroke of Body / Quill65" / 6"
 Quill Diameter / Taper4" / MT # 5
Dimensions:Floor Space (L x W x H)120" x 60" x 70"
 Weight (approx.)7,000 Lbs

 Equipped With

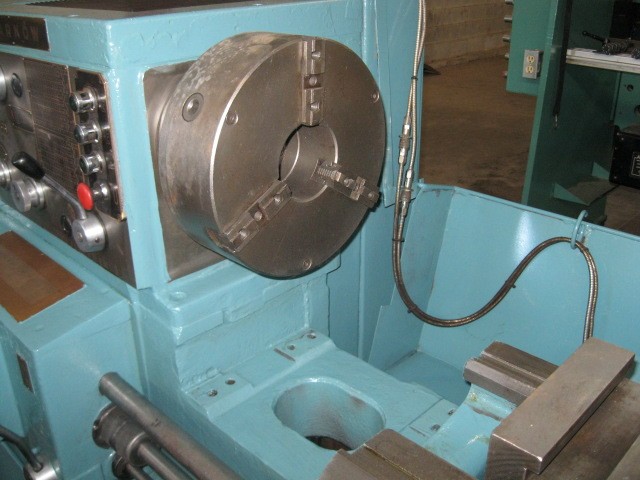

Additional Info.:12” 3-Jaw Chuck
 Hardened and Ground Bed Ways
 Chip Pan
 Threading Dial
 Coolant Pump
 Four (4) Way Toolpost

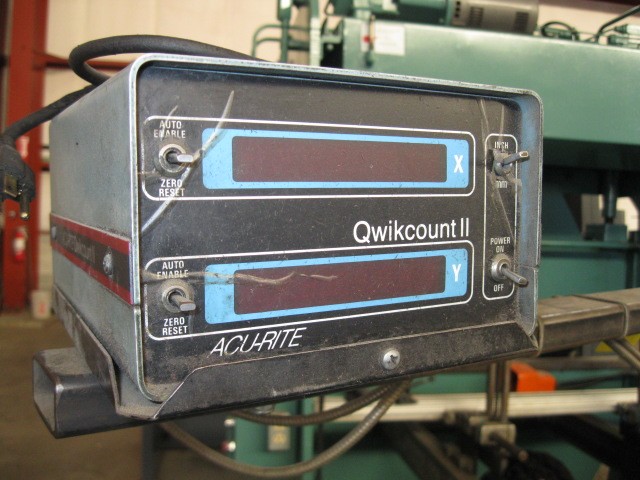

 Accurite QuickCount II DRO's


Click Here To Print Quote - 15503

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

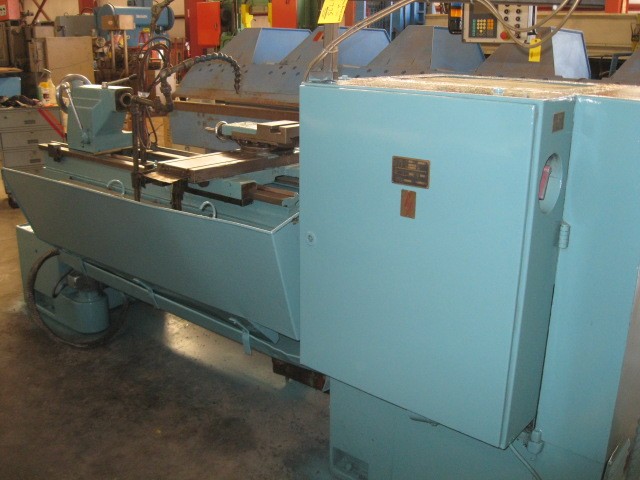

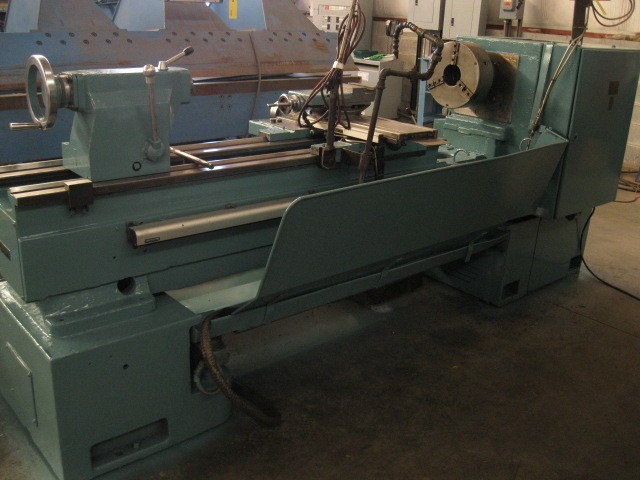

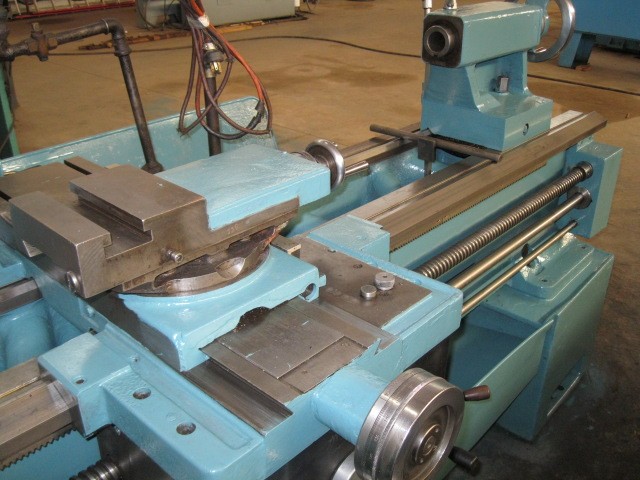

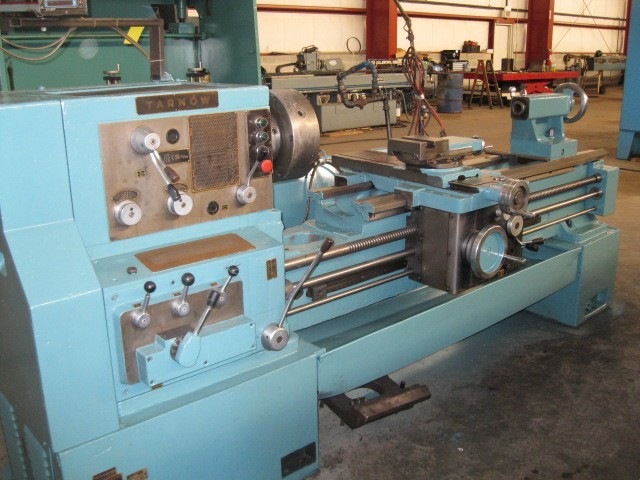

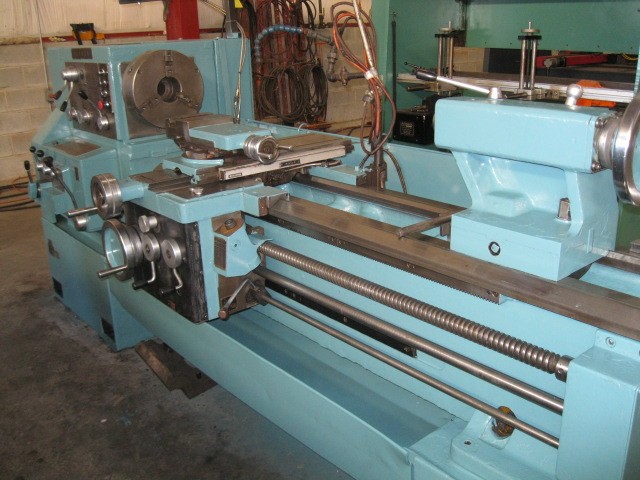

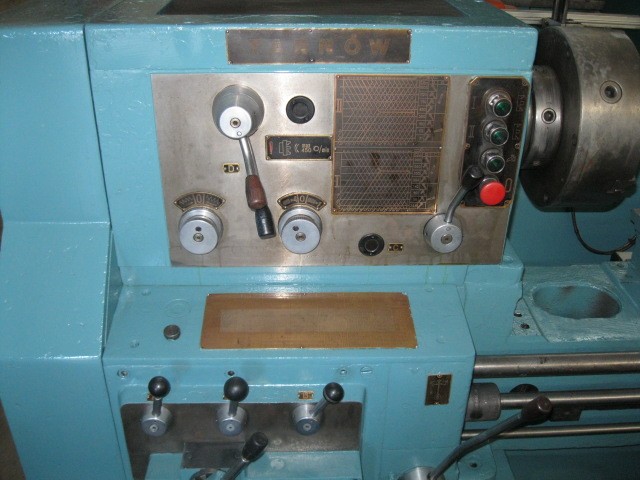

TarnowTUJ15503http://www.machinetools247.com/images/machines/15503-Tarnow TUJ.jpg
TarnowTUJ15503http://www.machinetools247.com/images/machines/15503-Tarnow TUJ 1.jpg
TarnowTUJ15503http://www.machinetools247.com/images/machines/15503-Tarnow TUJ 2.jpg
TarnowTUJ15503http://www.machinetools247.com/images/machines/15503-Tarnow TUJ 3.jpg
TarnowTUJ15503http://www.machinetools247.com/images/machines/15503-Tarnow TUJ 4.jpg
TarnowTUJ15503http://www.machinetools247.com/images/machines/15503-Tarnow TUJ 5.jpg
TarnowTUJ15503http://www.machinetools247.com/images/machines/15503-Tarnow TUJ 6.jpg
TarnowTUJ15503http://www.machinetools247.com/images/machines/15503-Tarnow TUJ 7.jpg
