Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
154342012Hyundai-WiaLV-500 LFanuc 32iA

 DescriptionSpec Values
Capacity:Table / Chuck Diameter / Maximum Swing15" / 23.2"
 Maximum Cutting Diameter / Maximum Cutting Height21.6" / 23..6"
Spindle:Spindle Speeds20 - 2,000 RPM
 Motor43 HP
Turret:Number of Positions (all can be live)8 Stations
 X-Axis Travel (horizontal travel)12.7"
 Z-Axis Travel24.617"
Rapids:Rapid Traverse (X / Z)787 / 708 IPM
Dimensions:Floor Space (L x W x H)109" x 77" x 105"
 Weight (approx)23,000 Lbs

 Equipped With
Additional Info.:15" 3-Jaw Hydraulic Chuck
 High / Low Chucking Pressure
 Chip Conveyor
 Rigid Tapping


Click Here To Print Quote - 15434

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

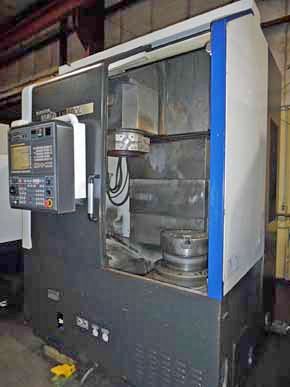

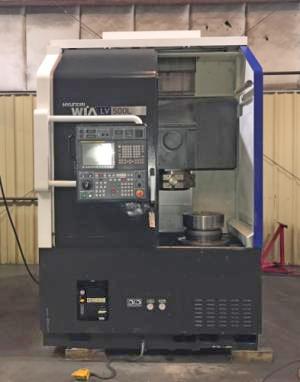

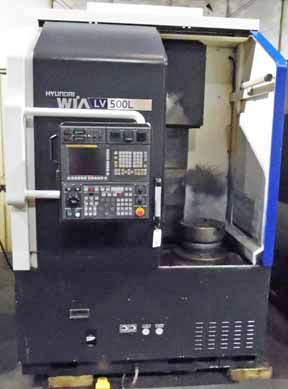

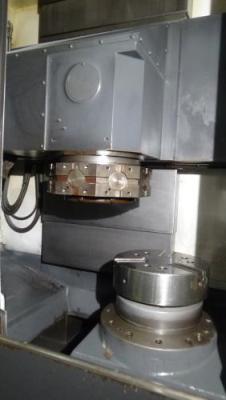

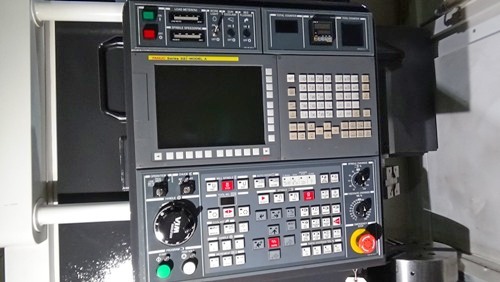

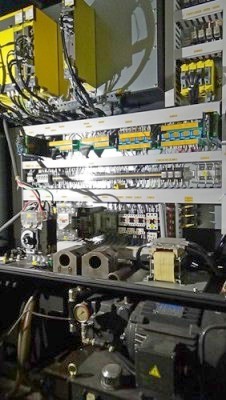

Hyundai-WiaLV-500 L15434http://www.machinetools247.com/images/machines/15434-Hyundai-Wia LV-500 L.jpg
Hyundai-WiaLV-500 L15434http://www.machinetools247.com/images/machines/15434-Hyundai-Wia LV-500 L 1.jpg
Hyundai-WiaLV-500 L15434http://www.machinetools247.com/images/machines/15434-Hyundai-Wia LV-500 L 2.jpg
Hyundai-WiaLV-500 L15434http://www.machinetools247.com/images/machines/15434-Hyundai-Wia LV-500 L 3.jpg
Hyundai-WiaLV-500 L15434http://www.machinetools247.com/images/machines/15434-Hyundai-Wia LV-500 L 4.jpg
Hyundai-WiaLV-500 L15434http://www.machinetools247.com/images/machines/15434-Hyundai-Wia LV-500 L 5.jpg
