Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
164712013Nakamura-TomeWY-250 LFanuc 31iA

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide11.2" / 9.84"
 Maximum Cutting Diameter (turret one & turret two)8.858"
 Maximum Turning Length / Distance Between Spindles42.83" / 47.24"
Main Spindle:Speeds40 - 4,500 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.15" / 2.55" / A2-6
 Motor (30 min. / cont.)18 / 12 HP
Sub-Spindle:Speeds50 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.48" / 2" / A2-5
 Motor (30 min. / cont.)20 / 15 HP
Turrets:Number of Positions (turret one / turret two) 12 Live x 224 / 24 Tools Each
Travels:X-Axis Travel (turret one X1 / turret two X2)6.31" / 6.29"
 Z-Axis Travel (turret one Z1 / turret two Z2)22.83" / 22.83"
 Y-Axis Travel3.973" +/-
 B-Axis Travel (sub-spindle)24.41"
Rotary Tools:Rotary Tool Speed100 - 6,000 RPM
 Rotary Tool Motor (30 min. / cont. turret one & turret two)10 / 5 HP
Rapids:Rapid Traverse (X & B / Z / Y / B)708 / 1,416 / 393 IPM
 Cutting Feed Rate188 IPM
Dimensions:Floor Space (L x W x H)193" x 132" x 95"
 Weight (approx)28,000 Lbs

 Equipped With
Additional Info.:Collet Chuck Main Spindle & Sub Spindle
 Chip Conveyor
 Miscellaneous Tooling
 Tool Presetter on Both Spindles
 Nine (9) Axis Control, Four (4) Simultaneously
 Canned Cycle
 Circular Interpolation
 Custom Macro
 Helical Interpolation
 Conversational Control
 High Pressure Coolant
 Parts Catcher
 Ridig Tapping
 Parts Ejector


Click Here To Print Quote - 16471

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

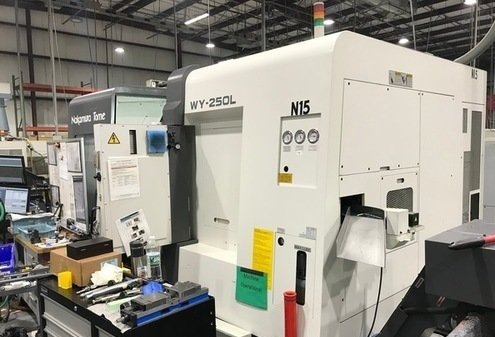

Nakamura-TomeWY-250 L16471http://www.machinetools247.com/images/machines/16471-Nakamura-Tome WY-250 L.jpg

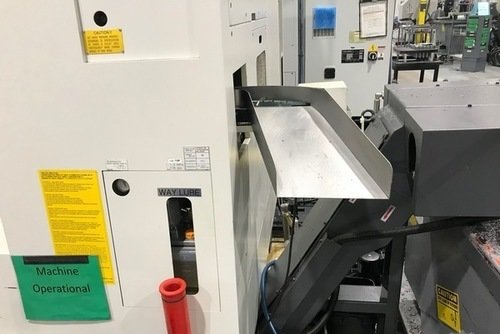

Nakamura-TomeWY-250 L16471http://www.machinetools247.com/images/machines/16471-Nakamura-Tome WY-250 L 1.jpg

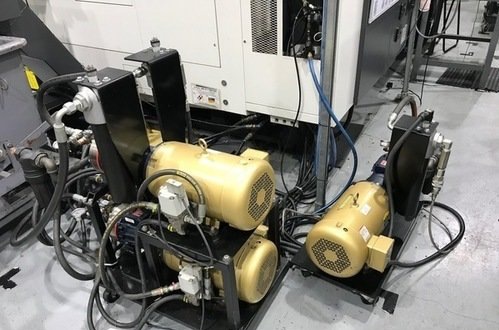

Nakamura-TomeWY-250 L16471http://www.machinetools247.com/images/machines/16471-Nakamura-Tome WY-250 L 2.jpg

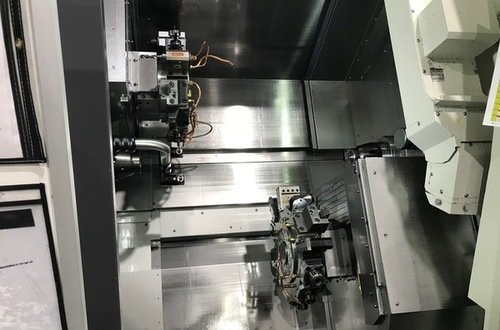

Nakamura-TomeWY-250 L16471http://www.machinetools247.com/images/machines/16471-Nakamura-Tome WY-250 L 3.jpg

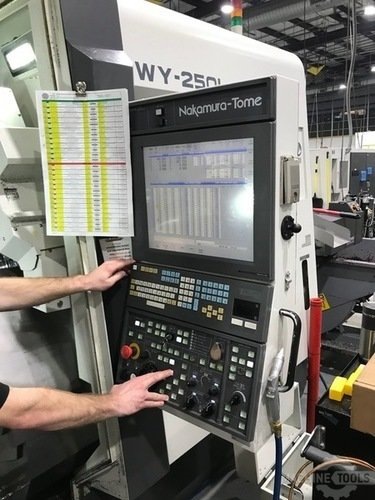

Nakamura-TomeWY-250 L16471http://www.machinetools247.com/images/machines/16471-Nakamura-Tome WY-250 L 4.jpg

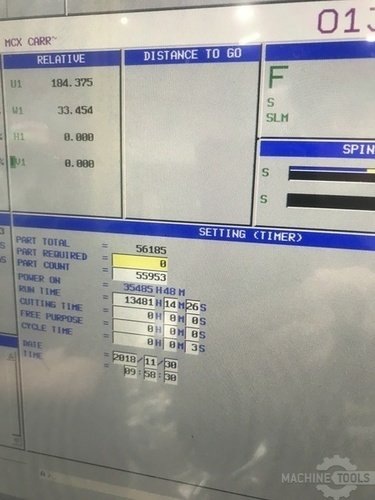

Nakamura-TomeWY-250 L16471http://www.machinetools247.com/images/machines/16471-Nakamura-Tome WY-250 L 5.jpg
