At Machine Tools 24-7 we never stop working to serve your machine tool needs

Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
162142012HaasVF-7-50Haas Control

 DescriptionSpec Values
Table:Table Size84" x 28"
 Maximum Table Load4,000 Lbs
Travels:X-Axis Travel84"
 Y-Axis Travel32"
 Z-Axis Travel30"
 Spindle Nose to Table Top4" - 34"
Spindle:Spindle Speeds Minimum - Maximum75 - 7,500 RPM
 Spindle Taper50 Taper
 Main Motor Geared Head40 / 30 HP
Tool Changer:Tool Changer Positions (side mount)30 ATC
Rapids:Rapid Traverse (X, Y & Z)600 IPM
Dimensions:Floor Space (L x W x H)185" x 103" x 103"
 Weight (approx.)26,000 Lbs

 Equipped With
Additional Info.:4th Axis Interface
 Rigid Tapping
 Chip Augers
 USB Port
 Visual Quick Code
 Enhanced Remote Jog Handle
 Two (2) Speed Geared Head
 Intuitive Programming System
 Coolant Through Spindle (300 psi)
 Wireless Intuitive Probing System
 Coordinate Rotation and Scaling
 Spindle Orientation
 Macros
 High Intensity Lighting
 Early Power Failure Detection
 Auto Air Gun
 Auxiliary Coolant Filtration System
 Chip Conveyor
 Ethernet Port


Click Here To Print Quote - 16214

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

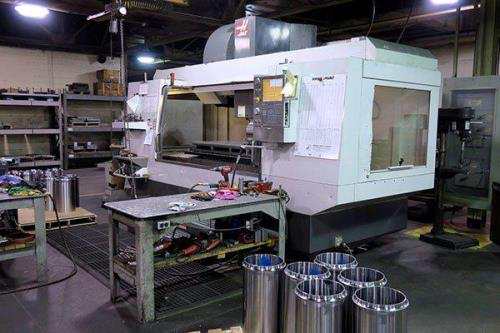

HaasVF-7-5016214http://www.machinetools247.com/images/machines/16214-Haas VF-7-50.jpg

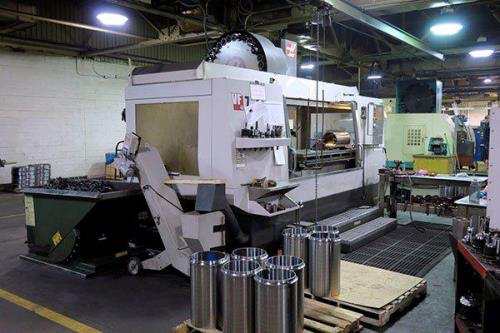

HaasVF-7-5016214http://www.machinetools247.com/images/machines/16214-Haas VF-7-50 a.jpg

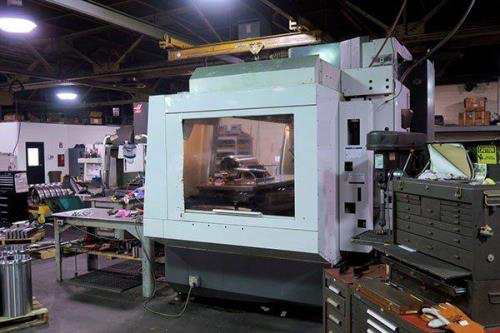

HaasVF-7-5016214http://www.machinetools247.com/images/machines/16214-Haas VF-7-50 b.jpg

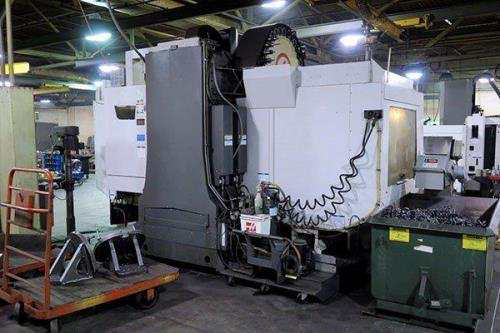

HaasVF-7-5016214http://www.machinetools247.com/images/machines/16214-Haas VF-7-50 c.jpg

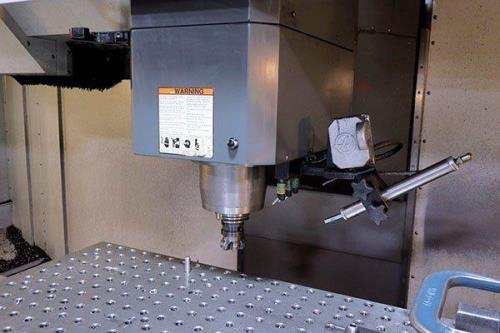

HaasVF-7-5016214http://www.machinetools247.com/images/machines/16214-Haas VF-7-50 d.jpg

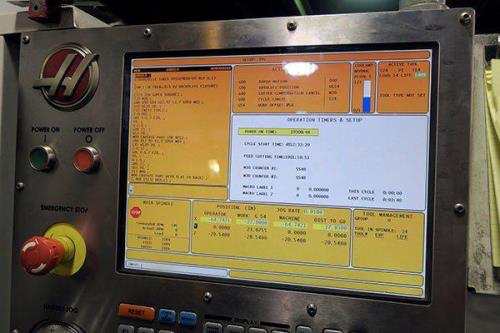

HaasVF-7-5016214http://www.machinetools247.com/images/machines/16214-Haas VF-7-50 e.jpg
