Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
161352009ChironFZ-15WFanuc 18iMB

 DescriptionSpec Values
Pallet:Pallet Size (2-pallets) / Max. Load Lbs25.99" x 15.748"
 Maximum Table Load660 Lbs
Travels:X-Axis Travel21.654"
 Y-Axis Travel15.748"
 Z-Axis Travel16.73"
 Spindle Nose to Table Top8.2" - 19.213"
Spindle:Spindle Speeds Minimum - Maximum20 - 10,500 RPM
 Spindle Taper40 Taper
 Main Motor (30 min. / cont.)20 / 10 HP
Tool Changer:Tool Changer Positions20 Positions
Rapids:Rapid Traverse (X, Y & Z)1,600 IPM
 Cutting Feed Rate1,600 IPM
Dimensions:Floor Space (L x W x H)125" x 90" x 126"
 Weight (approx.)15,000 Lbs

 Equipped With
Additional Info:Drill Cycles
 M and T Functions
 Chip Conveyor
 PCMCIA Slot
 Macro B Sub Routine
 Look Ahead
 Contour Compensation
 3D Interpolation
 Helical Interpolation
 Circular Interpolation
 Multi Tap Transformer
 Auxiliary Ninety Two (92) Gallon
 RS-232 Port
 NC Diagnosis
 AC Servo Motors All Axes
 Donaldson / Torit Mist Collector
Note:2006 Machine, Installed New in 2009


Click Here To Print Quote - 16135

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

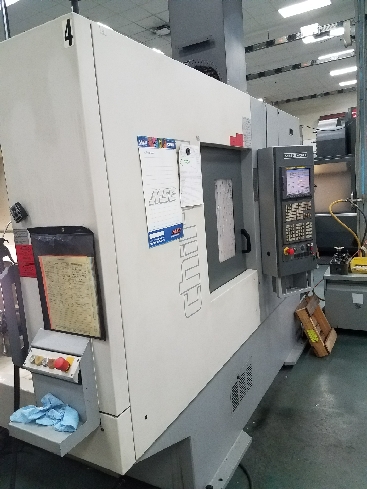

ChironFZ-15W16135http://www.machinetools247.com/images/machines/16135-Chiron FZ-15W.jpeg

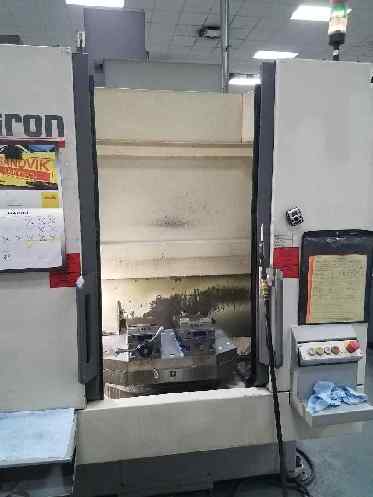

ChironFZ-15W16135http://www.machinetools247.com/images/machines/16135-Chiron FZ-15W 1.jpeg

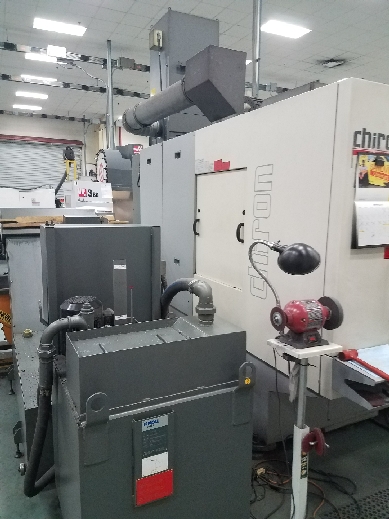

ChironFZ-15W16135http://www.machinetools247.com/images/machines/16135-Chiron FZ-15W 2.jpeg
