Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

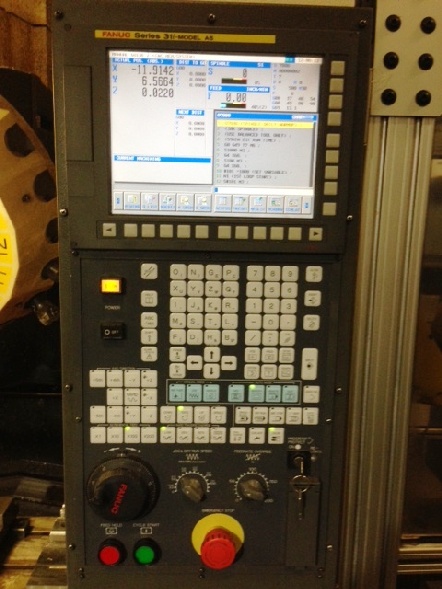

161212006FanucRobodrill A-T21iEFanuc 16iMB

 DescriptionSpec Values
Table:Table Size / Maximum Table Load25" x 15.8" / 660 Lbs
Travels:X-Axis Travel25"
 Y-Axis Travel18"
 Z-Axis Travel15"
Spindle:Spindle Speeds10 - 10,000 RPM
 Spindle Taper30 Taper (BT)
 Main Motor (30 min / continuous)7.4 / 5 HP

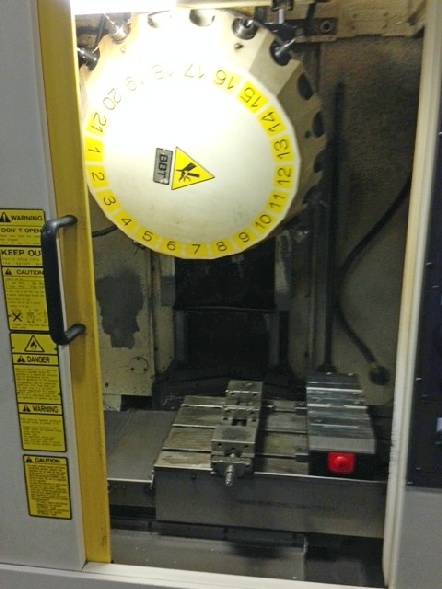

Tool Changer:Tool Changer Pos. / Indexing - Tool-to Tool / Chip to Chip21 ATC / 1.2 / 2.3 Sec.
Rapids:Rapid Traverse (X, Y & Z )2,126 IPM
 Feed Rate1,181 IPM
Dimensions:Floor Space (L x W x H)83" x 80" x 90"
 Weight (approx.)5,000 Lbs

 Equipped With

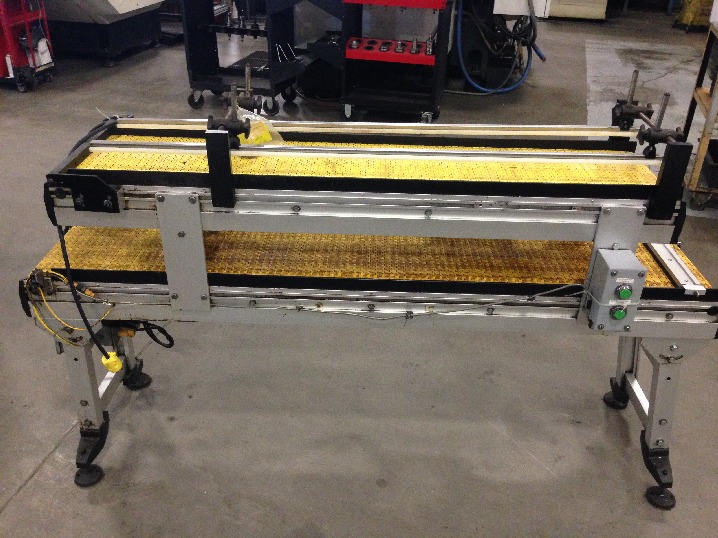

 Parts Conveyor
Additional Info.:Rigid Tapping
 Coolant Tank & Pump
 Big Plus Spindle
 Hydraulic Package (3,000 psi)

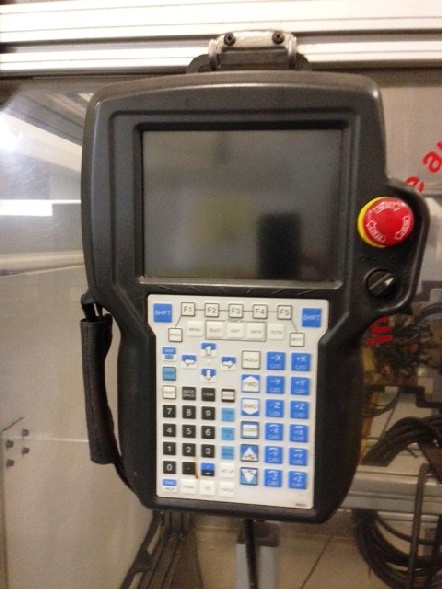

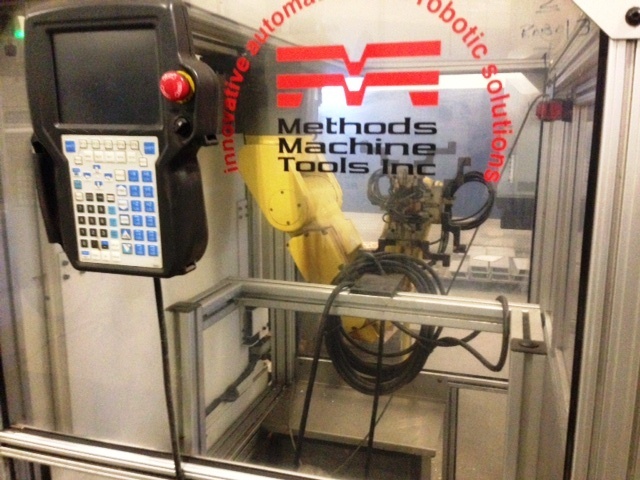

 Robot Interface
 Manuals
 Tools Life Management
 Chip Flush System for Fixtures
 Automatic Side Door
 Workpiece Air Blast

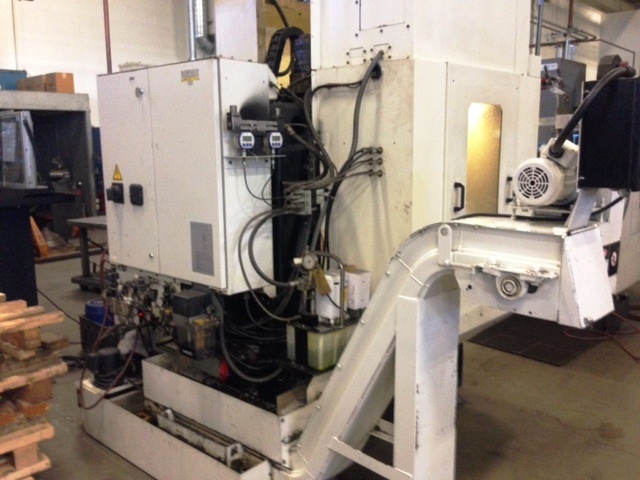

 Chip Conveyor
 Renishaw Laser Probe

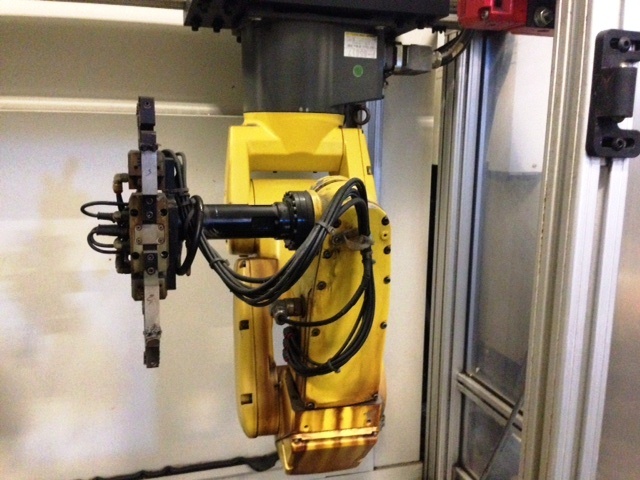

 Robot Parts Load / Unload
 Coolant Through Spindle Ready - No Pump


Click Here To Print Quote - 16121

Click Here To Email Quote Request - 16121

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos
FanucRobodrill A-T21iE16121http://www.machinetools247.com/images/machines/16121-Fanuc Robodrill A-T21iE.jpg
FanucRobodrill A-T21iE16121http://www.machinetools247.com/images/machines/16121-Fanuc Robodrill A-T21iE 1.jpg
FanucRobodrill A-T21iE16121http://www.machinetools247.com/images/machines/16121-Fanuc Robodrill A-T21iE 2.jpg
FanucRobodrill A-T21iE16121http://www.machinetools247.com/images/machines/16121-Fanuc Robodrill A-T21iE 3.jpg
FanucRobodrill A-T21iE16121http://www.machinetools247.com/images/machines/16121-Fanuc Robodrill A-T21iE 4.jpg
FanucRobodrill A-T21iE16121http://www.machinetools247.com/images/machines/16121-Fanuc Robodrill A-T21iE 5.jpg
FanucRobodrill A-T21iE16121http://www.machinetools247.com/images/machines/16121-Fanuc Robodrill A-T21iE 6.jpg
