At Machine Tools 24-7 we never stop working to serve your machine tool needs

Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

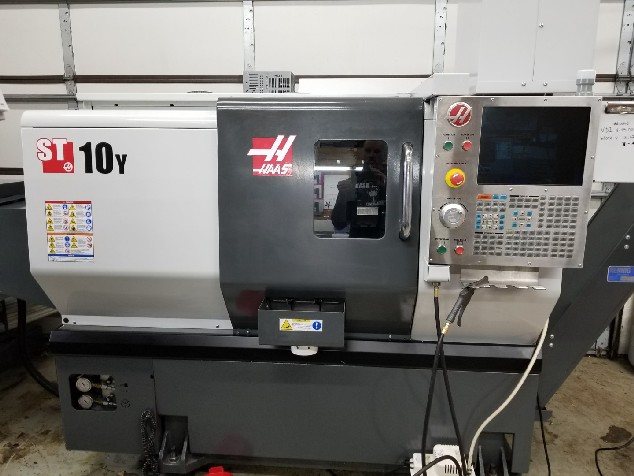

160452016HaasST-10 YHaas Control

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide25.25" / 16.25"
 Maximum Turning Diameter / Maximum Turning Length14" / 14"
Spindle:Spindle Speeds Minimum - Maximum60 - 6,000 RPM
 Spindle Bore / Bar Capacity / Nose2.31" / 1.75" / A2-5
 Main Motor (30 min / continuous)15 / 10 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel7.88"
 Z-Axis Travel14"
 Y-Axis Travel2" +/-
Rotary Tools:Rotary Tool Speed20 - 3,000 RPM
 Rotary Tool Motor (30 min. / continuous)7.5 HP
Rapids:Rapid Traverse (X / Z / Y )945 / 1,200 / 500 IPM
Dimensions:Floor Space (L x W x H)128" x 80" x 75"
 Weight (approx.)7,000 Lbs

 Equipped With

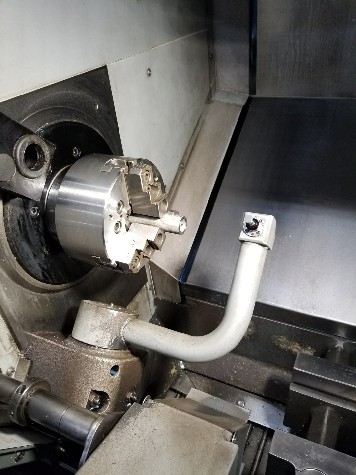

Additional Info.:6.5" 3-Jaw Hydrualic Chuck
 Ethernet Port
 USB Port
 Tool Presetter
 RS-232 Port
 Parts Catcher

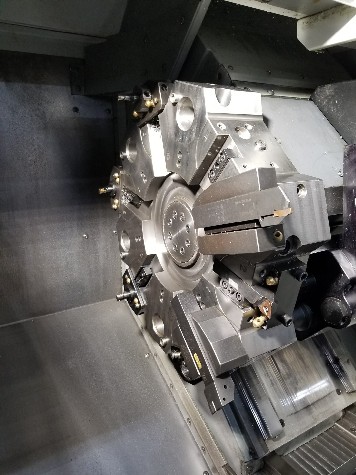

 Hybrid Turret
 Rigid Tapping

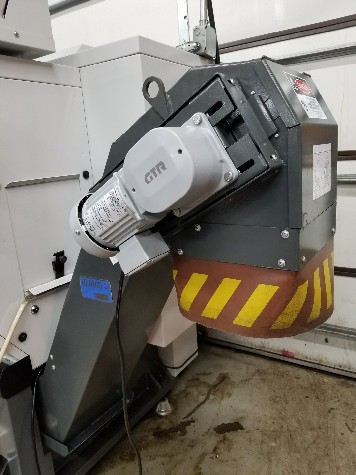

 Chip Conveyor
 Spindle Orientation
 Bar Feed Interface

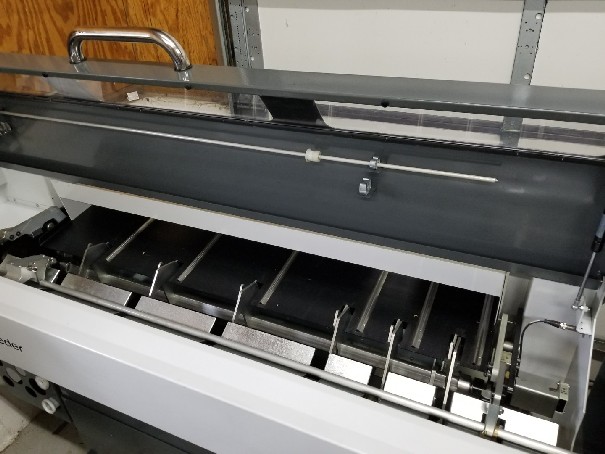

 Haas Servo Bar 300 Bar Feed


Click Here To Print Quote - 16045

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos
HaasST-10 Y16045http://www.machinetools247.com/images/machines/16045-Haas ST-10 Y.jpg
HaasST-10 Y16045http://www.machinetools247.com/images/machines/16045-Haas ST-10 Y 1.jpg
HaasST-10 Y16045http://www.machinetools247.com/images/machines/16045-Haas ST-10 Y 2.jpg
HaasST-10 Y16045http://www.machinetools247.com/images/machines/16045-Haas ST-10 Y 3.jpg
HaasST-10 Y16045http://www.machinetools247.com/images/machines/16045-Haas ST-10 Y 4.jpg
HaasST-10 Y16045http://www.machinetools247.com/images/machines/16045-Haas ST-10 Y 5.jpg
