Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

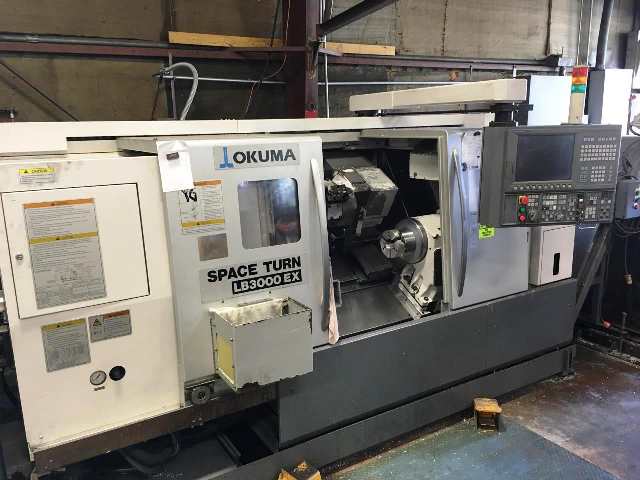

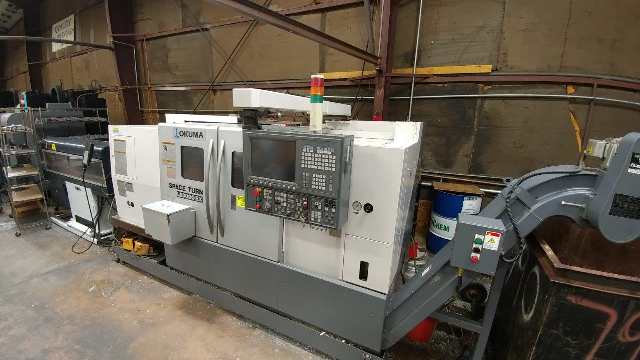

157702010OkumaLB-3000 EX BB MWOSP-P200LA

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide22.38" / 18.5"
 Maximum Turning Diameter / Maximum Turning Length16.14" / 29.87"
 Distance Between Spindles42.72"
Main Spindle:Spindle Speeds Minimum - Maximum42 - 4,200 RPM
 Spindle Bore / Bar Capacity / Nose3.58" / 2.75" / A2-8
 Main Motor (30 min / continuous)40 / 30 HP
Sub Spindle:Speeds180 - 4,200 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.94" / 2.44" / JIS Flat
 Motor (30 min / continuous)15 / 10 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.23"
 Z-Axis Travel39.17"
 W-Axis Travel35.24"
Rotary Tools:Rotary Tool Speed45 - 6,000 RPM
 Rotary Tool Motor (30 min. / continuous)10 / 5 HP
Rapids:Rapid Traverse (X / Y / Z )984 / 492 / 1,181 IPM
 Feed Rate (X & Z )0.04 - 497 IPM
Dimensions:Floor Space (L x W x H)129.9" x 74.9" x 84.7"
 Weight (approx)18,700 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Hydraulic Chuck Main, 6.5" 3-Jaw Hydraulic Chuck Sub
 RS-232 Port
 Chip Conveyor
 Parts Catcher
 IGF Conversational Progamming
 Touch Setter

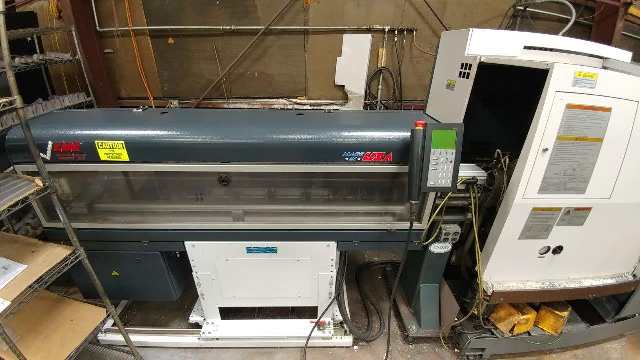

 LNS Quick Load Servo S3 Bar Feed
 Two (2) Sets of Spare M-Codes
Note:Low Hours
 Lap 4
 User Task II
 High Pressure Coolant
 Mac Man
 Spindle Orientation
 3D Animation
 Load Monitor
 Barfeed Interface
 Nose Radius B
 Tool Life Management
 Tool Wear Compensation


Click Here To Print Quote - 15770

Click Here To Email Quote Request - 15770

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos
OkumaLB-3000 EX BB MW15770http://www.machinetools247.com/images/machines/15770-Okuma LB-3000 EX BB MW.jpg
OkumaLB-3000 EX BB MW15770http://www.machinetools247.com/images/machines/15770-Okuma LB-3000 EX BB MW 1.jpg
OkumaLB-3000 EX BB MW15770http://www.machinetools247.com/images/machines/15770-Okuma LB-3000 EX BB MW 2.jpg
