Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
157511998HurcoBMC-4020 HTUltramax SSM

 DescriptionSpec Values
Table:Table Size47" x 19.7"
 Maximum Table Load1,100 Lbs
Travels:X-Axis Travel40"
 Y-Axis Travel20"
 Z-Axis Travel24"
Spindle:Spindle Speeds Minimum - Maximum0 - 8,000 RPM
 Spindle Taper40 Taper
 Main Motor (30 min. / continuous)20 / 15 HP
 Spindle Nose To Table Top6" - 30"
 Cutting Feed Rate0.1 - 450 IPM
Tool Changer:Tool Changer Positions24 ATC
Rapids:Rapid Traverse (X, Y & Z)590 IPM
Dimensions:Floor Space (L x W x H)135" x 100" x 112"
 Weight (approx.)15,000 Lbs

 Equipped With
Additional Info.:Rigid Tapping
 RS-232 Port
 Standard Cooling System
 Transformer
 Kurt Vise
 Remote Jog Handle


Click Here To Print Quote - 15751

Click Here To Email Quote Request - 15751

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

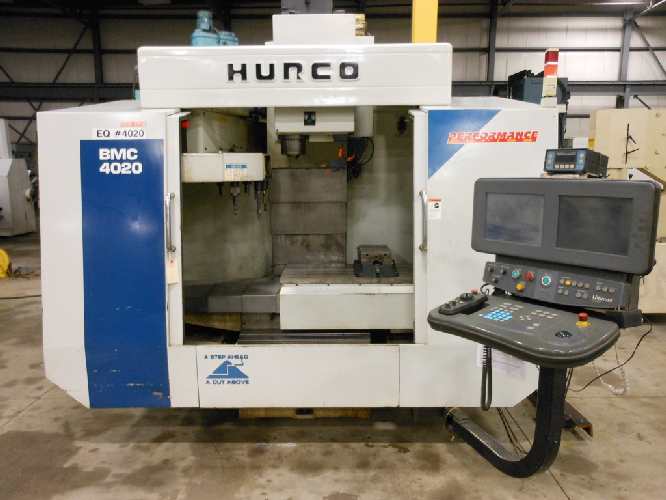

HurcoBMC-4020 HT15751http://www.machinetools247.com/images/machines/15751-Hurco BMC-4020 HT.jpg
