Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

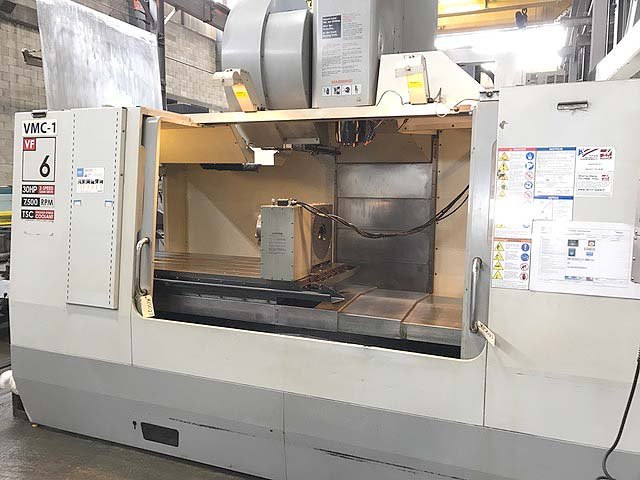

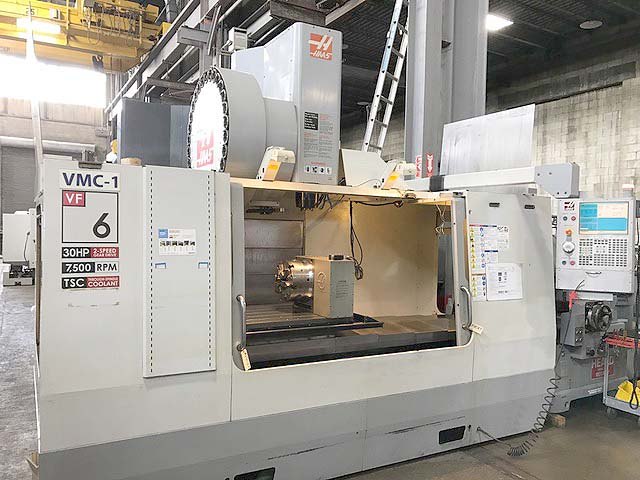

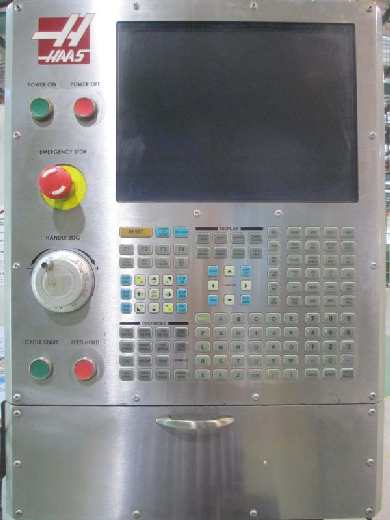

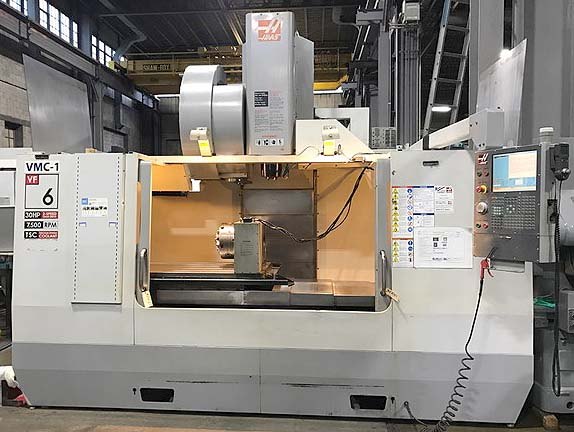

157342009HaasVF-6-50Haas Control

 DescriptionSpec Values
Table:Table Size64" x 28"
 Maximum Table Load4,000 Lbs
Travels:X-Axis Travel64"
 Y-Axis Travel32"
 Z-Axis Travel30"
 Spindle Nose to Table Top5" - 35"
Spindle:Spindle Speeds Minimum - Maximum50 - 7,500 RPM
 Spindle Taper50 Taper
 Main Motor30 HP
Tool Changer:Tool Changer Positions (side mount)30 ATC
Rapids:Rapid Traverse (X / Y & Z)540 / 600 IPM
 Feed Rate500 IPM
Dimensions:Floor Space (L x W x H)156" x 123" x 130"
 Weight (approx.)23,000 Lbs

 Equipped With
Additional Info.:Programmable Coolant
 Chip Auger
 Rigid Tapping
 4th Axis Interface
 Macros
 High Intensity Lighting
 Coordinate Rotation & Scaling
 Two (2) Speed Geared Head
 RS-232 Port

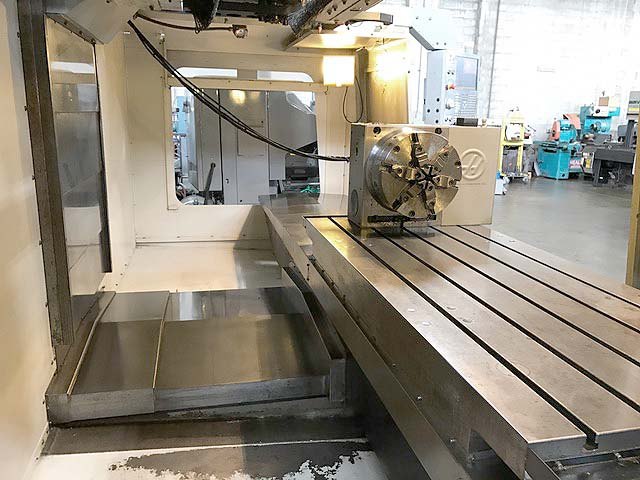

 Haas HRT-450 Rotary Table With Tailstock
 Spindle Orientation
 Coolant Through Spindle
 Spindle Probing System
 Remote Jog Handle


Click Here To Print Quote - 15734

Click Here To Email Quote Request - 15734
