Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
157232008HaasVF-4 SS APCHaas Control

 DescriptionSpec Values
Table:Table Size52" x 18"
 Maximum Table Load3,500 Lbs
Travels:X-Axis Travel50"
 Y-Axis Travel20"
 Z-Axis Travel25"
 Spindle Nose to Table Top4" - 29"
Spindle:Spindle Speeds Minimum - Maximum0 - 12,000 RPM
 Spindle Taper40 Taper
 Main Motor30 / 20 HP
Tool Changer:Tool Changer Positions (side mount)24 + 1 ATC
Rapids:Rapid Traverse1,400 IPM
 Cutting Feed Rate833 IPM
Dimensions:Floor Space (L x W x H)118" x 110" x 120"
 Weight (approx.)13,500 Lbs

 Equipped With
Additional Info.:4th & 5th Axis Interface
 Rigid Tapping
 Chip Auger
 Coordinate Rotation and Scaling
 Side Mount Tool Changer
 Programmable Coolant
 Spindle Orientation

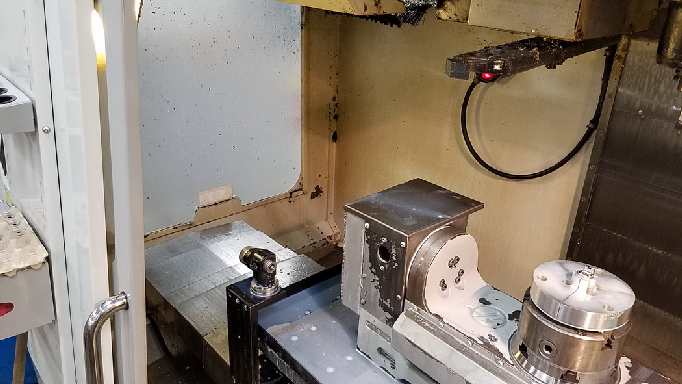

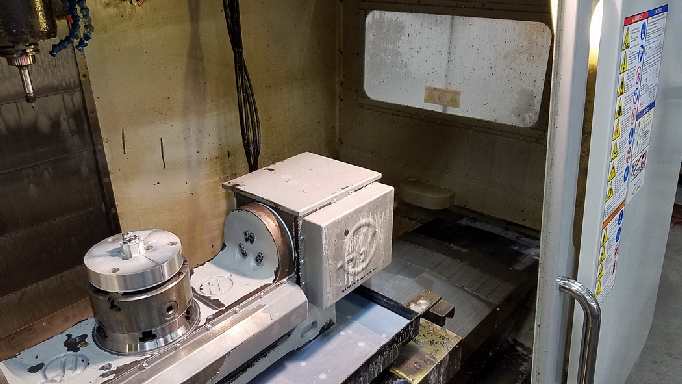

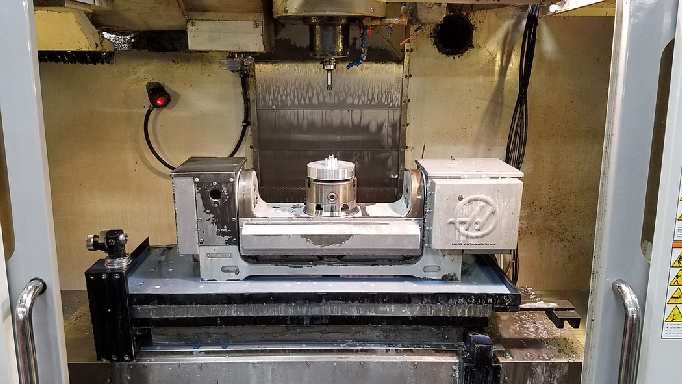

 Haas TR-160 Tilt Rotary Table
 Ethernet Port
 Macros
 Haas Automatic Pallet Changer
 16 Meg of Memory
 Intuitive Programming System
 Wireless Intuitive Probing Package
 Coolant Through Spindle
 Mist Collector
 Haas Automatic Pallet Changer
 High Speed Machining


Click Here To Print Quote - 15723

Click Here To Email Quote Request - 15723

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

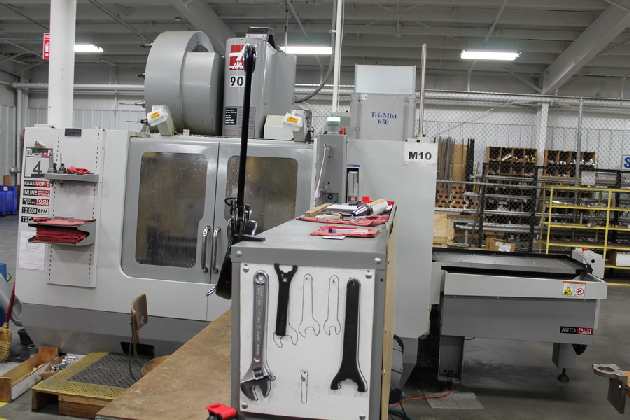

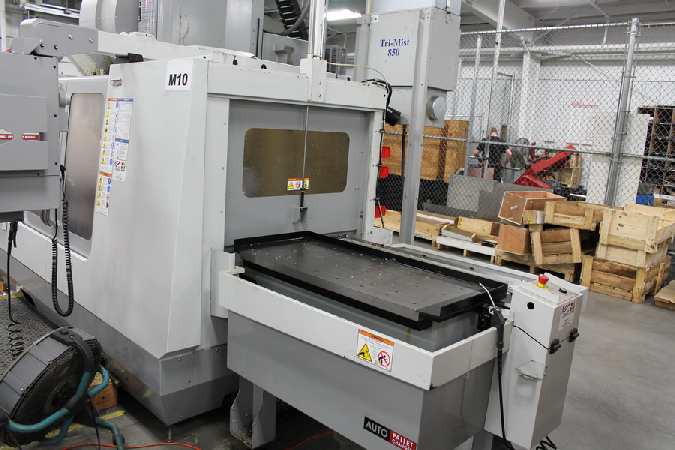

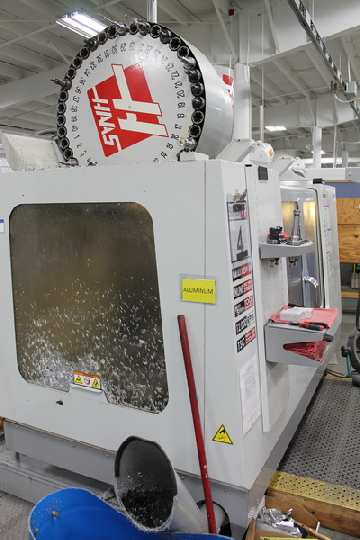

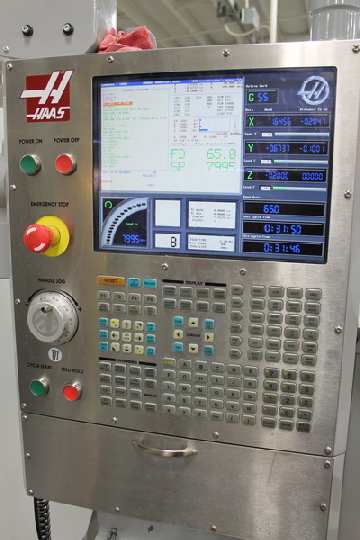

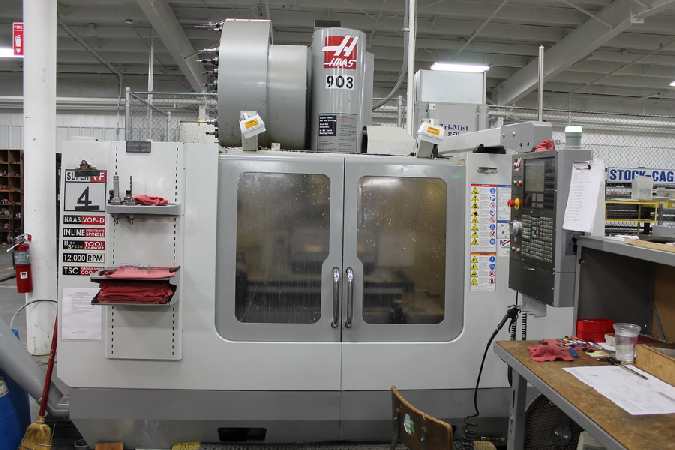

HaasVF-4 SS APC15723http://www.machinetools247.com/images/machines/15723-Haas VF-4 SS APC.jpg
HaasVF-4 SS APC15723http://www.machinetools247.com/images/machines/15723-Haas VF-4 SS APC 1.jpg
HaasVF-4 SS APC15723http://www.machinetools247.com/images/machines/15723-Haas VF-4 SS APC 2.jpg
HaasVF-4 SS APC15723http://www.machinetools247.com/images/machines/15723-Haas VF-4 SS APC 3.jpg
HaasVF-4 SS APC15723http://www.machinetools247.com/images/machines/15723-Haas VF-4 SS APC 4.jpg
HaasVF-4 SS APC15723http://www.machinetools247.com/images/machines/15723-Haas VF-4 SS APC 5.jpg
HaasVF-4 SS APC15723http://www.machinetools247.com/images/machines/15723-Haas VF-4 SS APC 6.jpg
HaasVF-4 SS APC15723http://www.machinetools247.com/images/machines/15723-Haas VF-4 SS APC 7.jpg
