Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
157072006HaasEC-400Haas Control

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets) / Change Time (seconds)15.75" x 15.75" / 0.8
 Pallet Indexing / Table Load360,000° / 660 Lbs
Travels:X-Axis Travel20"
 Y-Axis Travel20"
 Z-Axis Travel20"
Spindle:Spindle Speeds Minimum - Maximum50 - 12,000 RPM
 Spindle Taper40 Taper CT
 Main Motor (30 min / continuous)40 / 30 HP
 Spindle Center to Table Top3.1" - 37.8"
Tool Changer:Tool Changer Positions (side mount)40 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip)2.1 / 3.7 Sec.
Rapids:Rapid Traverse (X, Y & Z )1,000 IPM
 Feed Rate0.01 - 833 IPM
Dimensions:Floor Space (L x W x H)133" x 131" x 104"
 Weight (approx.)22,000 Lbs

 Equipped With
Additional Info.:Rigid Tapping
 3.5" Floppy
 Chip Auger
 Programmable Coolant
 Remote Jog Handle
 Internal High Voltage Transformer
 High Speed Machining
 Power Fault Detection Module
 User Macros


Click Here To Print Quote - 15707

Click Here To Email Quote Request - 15707

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.

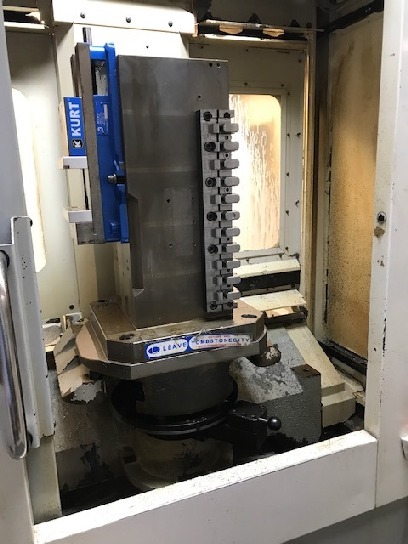

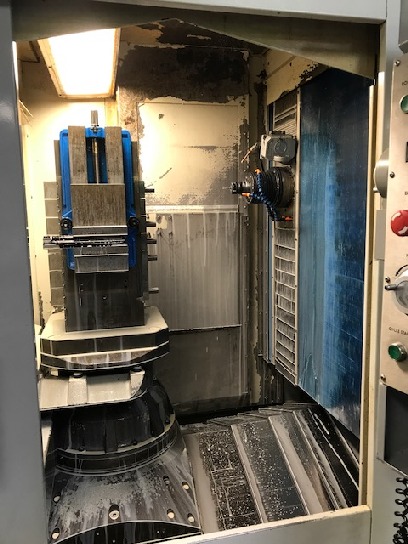

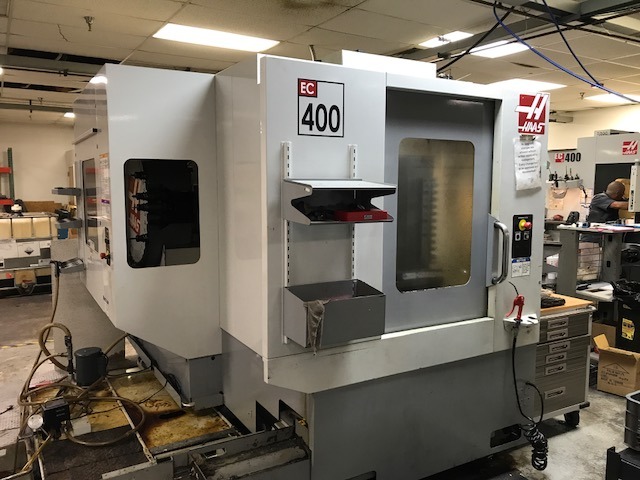

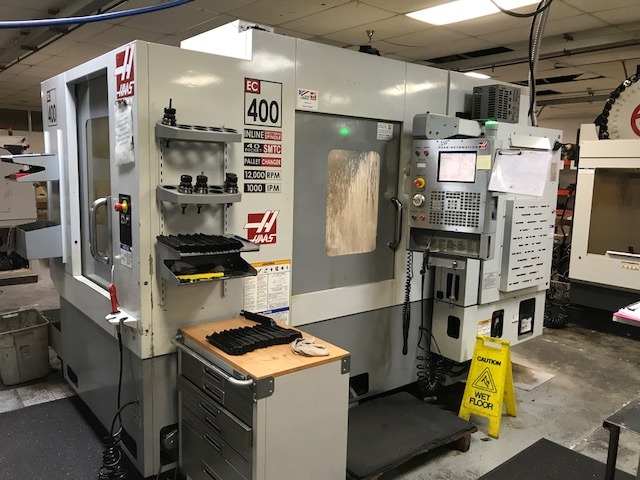

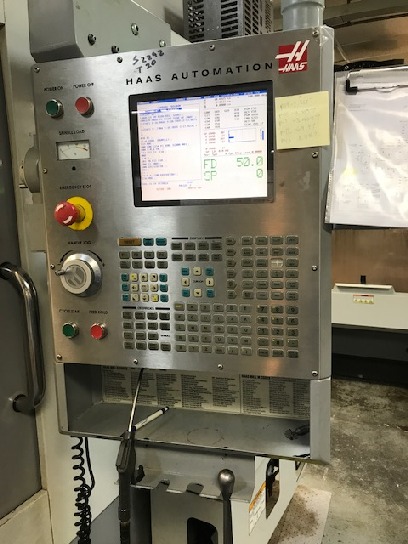

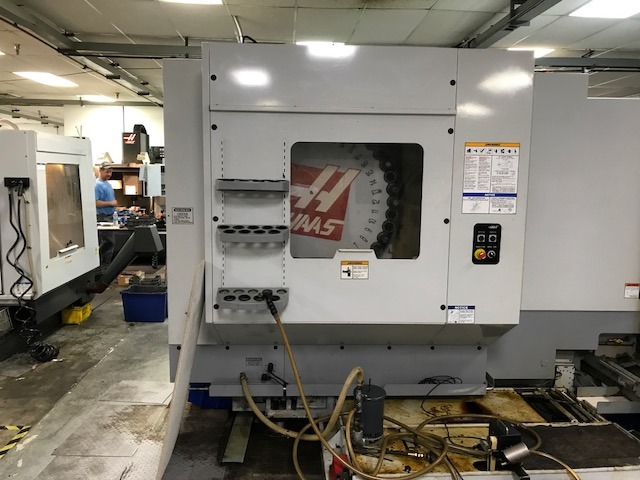

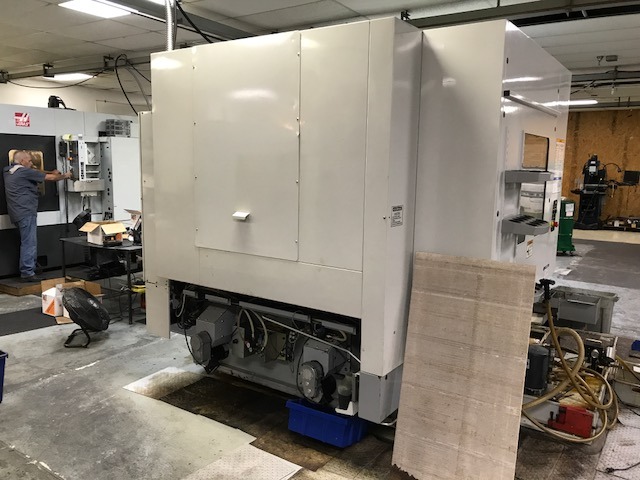

ManufacturerModelMachine IDMachine Photos
HaasEC-40015707http://www.machinetools247.com/images/machines/15707-Haas EC-400.jpg
HaasEC-40015707http://www.machinetools247.com/images/machines/15707-Haas EC-400 a.jpg
HaasEC-40015707http://www.machinetools247.com/images/machines/15707-Haas EC-400 b.jpg
HaasEC-40015707http://www.machinetools247.com/images/machines/15707-Haas EC-400 c.jpg
HaasEC-40015707http://www.machinetools247.com/images/machines/15707-Haas EC-400 d.jpg
HaasEC-40015707http://www.machinetools247.com/images/machines/15707-Haas EC-400 e.jpg
HaasEC-40015707http://www.machinetools247.com/images/machines/15707-Haas EC-400 f.jpg
