Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
156782014YCMDCV-2012BFanuc MXP-200FB

 DescriptionSpec Values
Table:Table Size78" x 43.3"
 Distance Between Columns / Maximum Table Load52.6" / 8,818 Lbs
Travels:X-Axis Travel78"
 Y-Axis Travel47.24"
 Z-Axis Travel30"
 Spindle Nose to Table Top7.8" - 37.8"
Spindle:Spindle Speeds Minimum - Maximum (2 geared ranges)100 - 10,000 RPM
 Spindle Taper50 Taper
 Main Motor30 / 25 HP
Tool Changer:Tool Changer Positions32 ATC
Rapids:Rapid Traverse (X & Y / Z)590 / 394 IPM
 Cutting Feed Rate0.4 - 196.9 IPM
Dimensions:Floor Space (L x W x H)215" x 138" x 162"
 Weight (approx.)48,000 Lbs

 Equipped With
Additional Info.:Rigid Tap
 Enclosure
 Dual Chip Auger
 Chip Conveyor
 Helical Interpolation
 Cutting Air Blast
 Spindle Air Blast
 Oil Skimmer
 Remote Jog Handle
Note:2013 Machine Installed in 2014


Click Here To Print Quote - 15678

Click Here To Email Quote Request - 15678

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

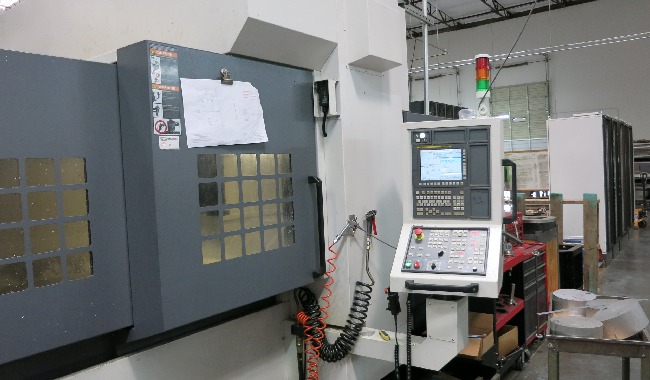

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B.jpg

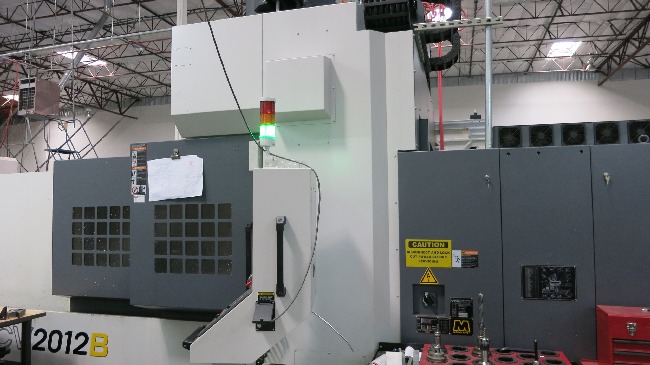

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B 1.jpg

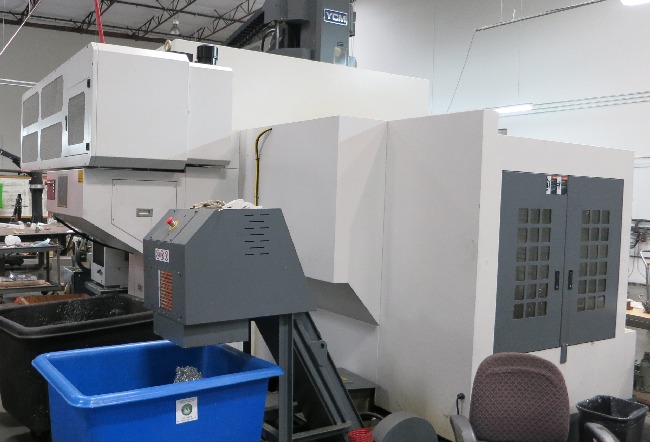

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B 2.jpg

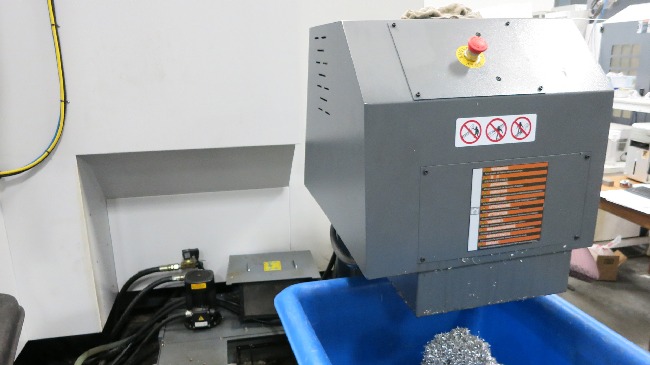

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B 3.jpg

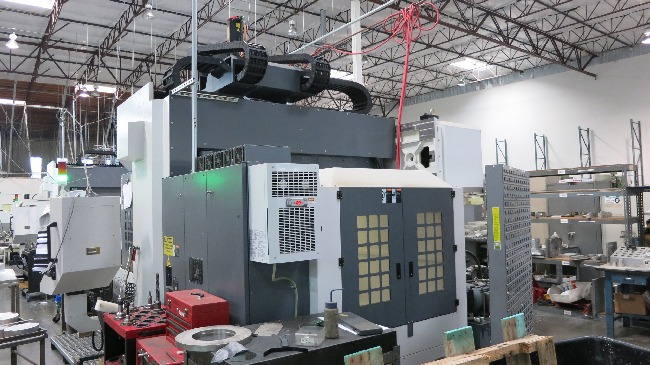

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B 4.jpg

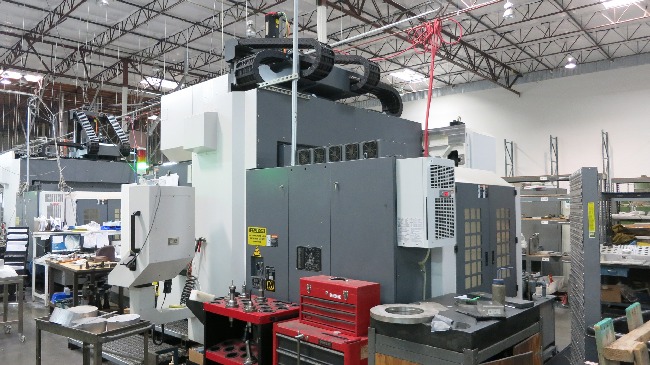

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B 5.jpg

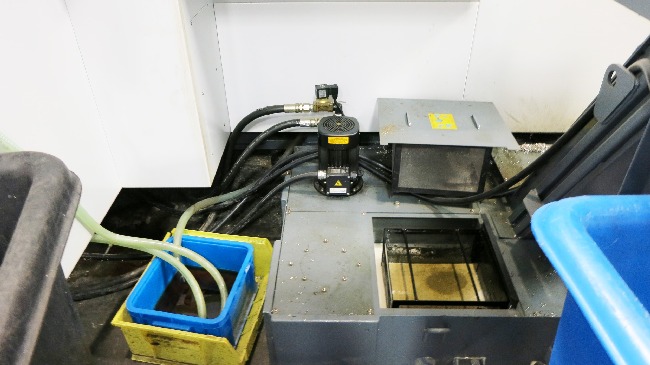

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B 6.jpg

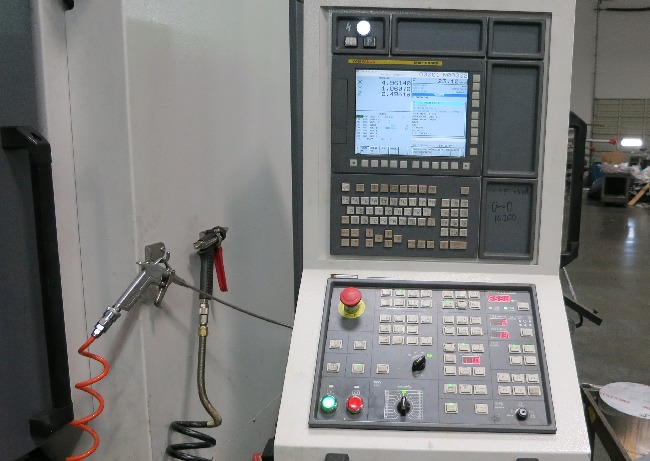

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B 7.jpg

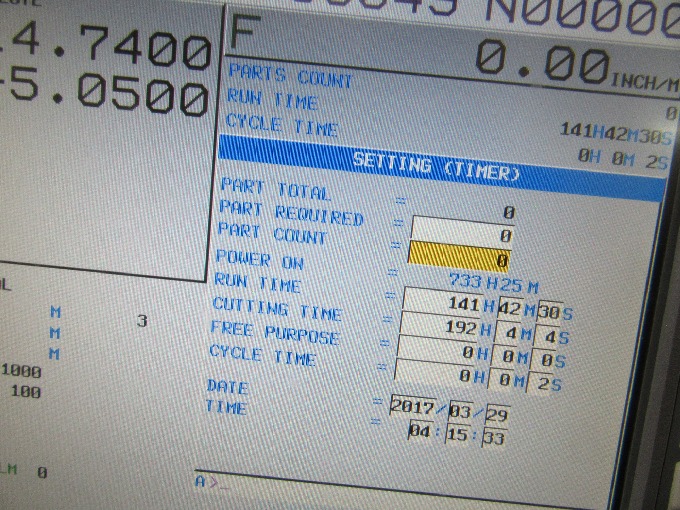

YCMDCV-2012B15678http://www.machinetools247.com/images/machines/15678-YCM DCV-2012B 8.jpg
