Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
156202017KentKMV-22PFanuc 0iMD

 DescriptionSpec Values
Table:Table Size86.5" x 65"
 Distance Between Columns / Maximum Table Load81" / 25,000 Lbs
Travels:X-Axis Travel87"
 Y-Axis Travel79"
 Z-Axis Travel43"
 Spindle Nose to Table Top9.44" - 44.9"
Spindle:Spindle Speeds Minimum - Maximum (2 geared ranges)60 - 6,000 RPM
 Spindle Taper50 Taper
 Main Motor35 / 30 HP
Tool Changer:Tool Changer Positions32 ATC
Rapids:Rapid Traverse (X, Y & Z)472 IPM
 Cutting Feed Rate0.4 - 393 IPM
Dimensions:Floor Space (L x W x H)243" x 183" x 178"
 Weight (approx.)65,000 Lbs

 Equipped With
Additional Info.:Two (2) Speed ZF Gear Box 2 Speed ZF Gear Box
 High Speed Skip Function
 Chip Conveyor
 AICC-II
 Coolant Through Spindle (300 psi, 1,000 psi ready)
 Helical Interpolation
 4th Axis Ready
 Remote Jog Handle
 1 Gig Data Server
 Tool Life Measurement
 Tool Length Measurement
 Oil Cooled Ball-Screws and Spindle
 Spindle Air Blast
 Air Conditioned Electrical Cabinet
 Spare M-Codes
 Air Thru Spindle
 8” Column Riser Blocks X-Axis
 Twin Auger Type Chip Conveyors
 Chip Conveyor
 Manual Guide-I
Note:New Machine, Warranty, Installation and Training


Click Here To Print Quote - 15620

Click Here To Email Quote Request - 15620

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

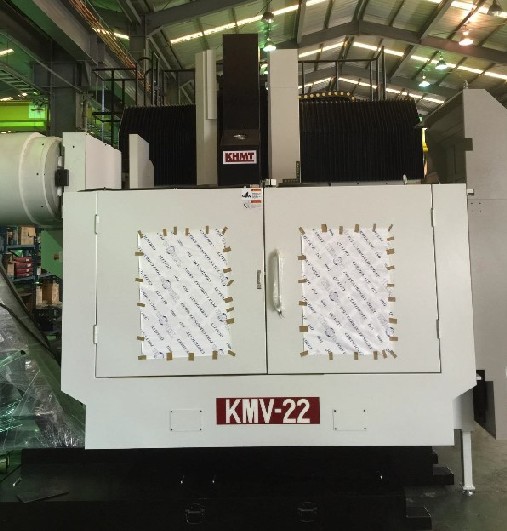

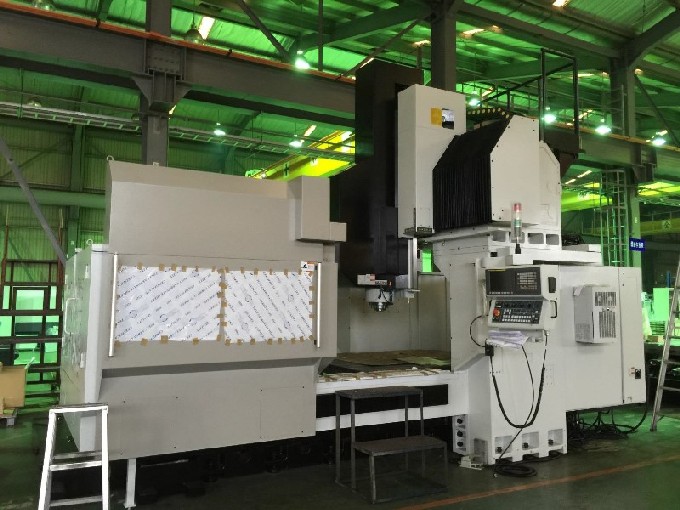

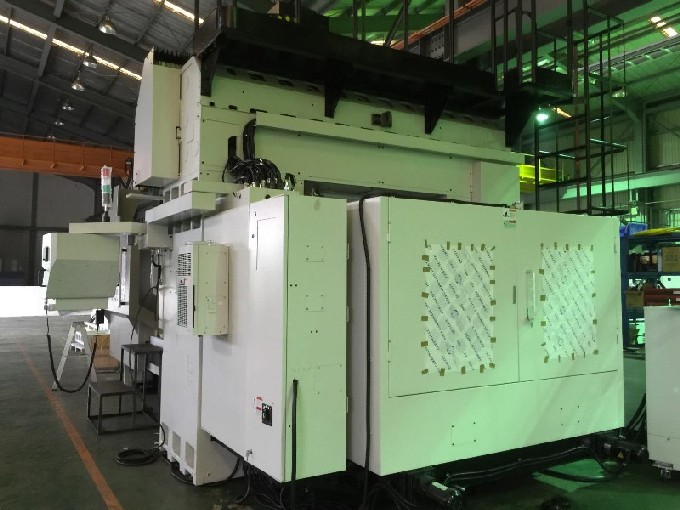

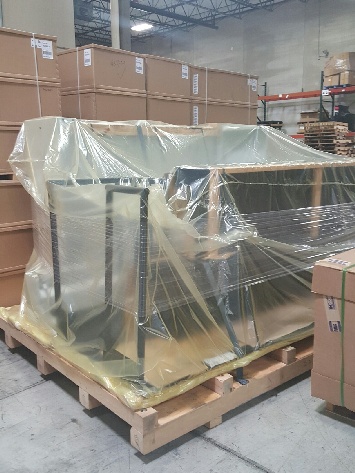

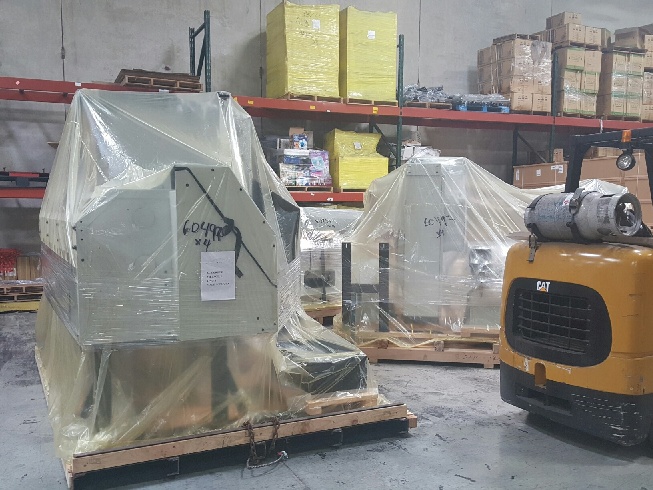

KentKMV-22P15620http://www.machinetools247.com/images/machines/15620-Kent KMV-22P.jpg
KentKMV-22P15620http://www.machinetools247.com/images/machines/15620-Kent KMV-22P 1.jpg
KentKMV-22P15620http://www.machinetools247.com/images/machines/15620-Kent KMV-22P 2.jpg
KentKMV-22P15620http://www.machinetools247.com/images/machines/15620-Kent KMV-22P 3.jpg
KentKMV-22P15620http://www.machinetools247.com/images/machines/15620-Kent KMV-22P 4.jpg
