Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

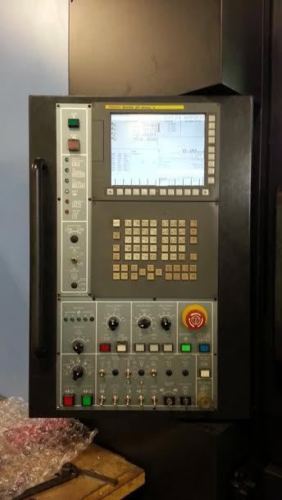

155802010DoosanHP-5100Fanuc 31iMA

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets)19.7" x 19.7"
 Pallet Indexing / Table Load360,000° / 1,100 Lbs
Travels:X-Axis Travel33.5"
 Y-Axis Travel27.6"
 Z-Axis Travel29.5"
Spindle:Spindle Speeds Minimum - Maximum50 - 14,000 RPM
 Spindle Taper40 Taper (bt)
 Main Motor (30 min / continuous)30 / 20 HP
 Spindle Center to Table Top5.9" - 35.4"

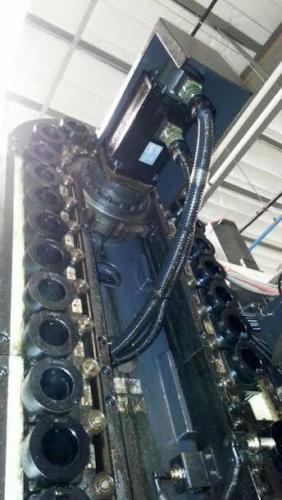

Tool Changer:Tool Changer Positions60 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip)1.5 / 4 Sec.
Rapids:Rapid Traverse (X, Y & Z )2,362 IPM
 Feed Rate944 IPM
Dimensions:Floor Space (L x W x H)215" x 113" x 120"
 Weight (approx.)34,000 Lbs

 Equipped With
Additional Info.:Coolant Through Spindle
 Magnetic Chip Conveyor
 Tool Life Management

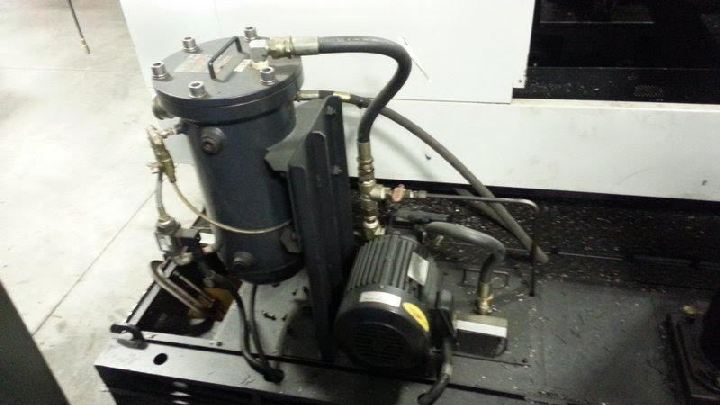

 High Pressure Coolant System
 Coolant Filtration System
 Spindle Chiller

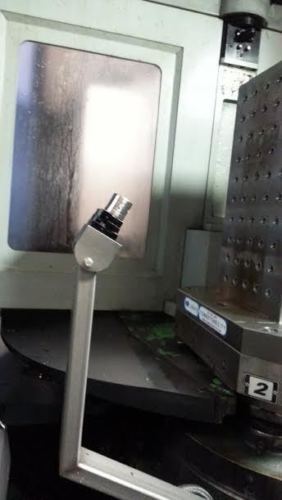

 Tool Probe

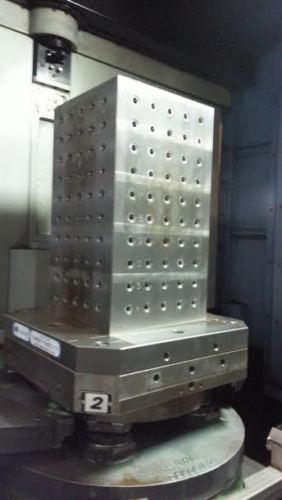

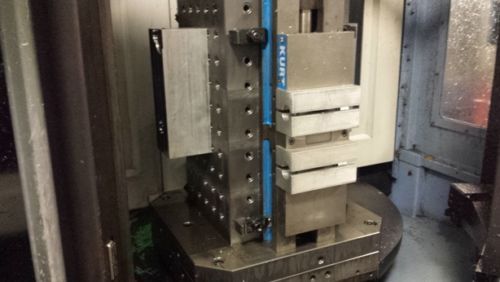

 Two (2) Tombstones
Note:New Spindle Installed in 2016, 10 Hours Use Since Then


Click Here To Print Quote - 15580

Click Here To Email Quote Request - 15580

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

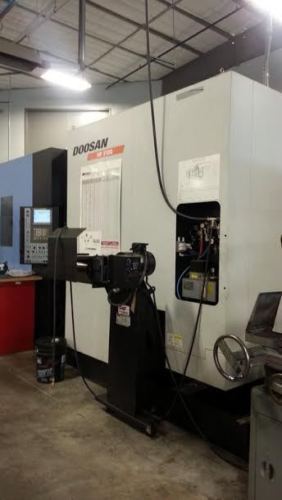

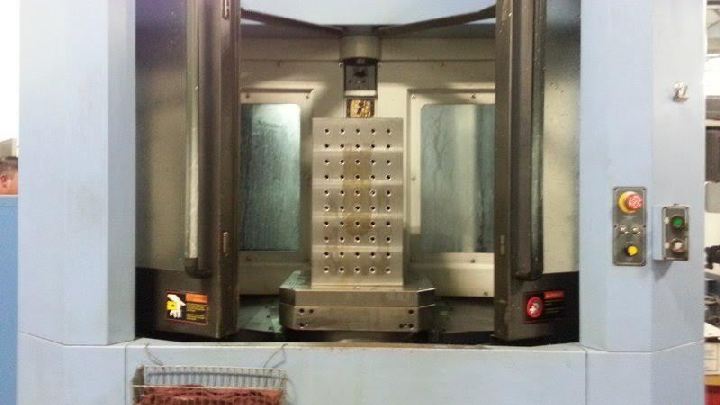

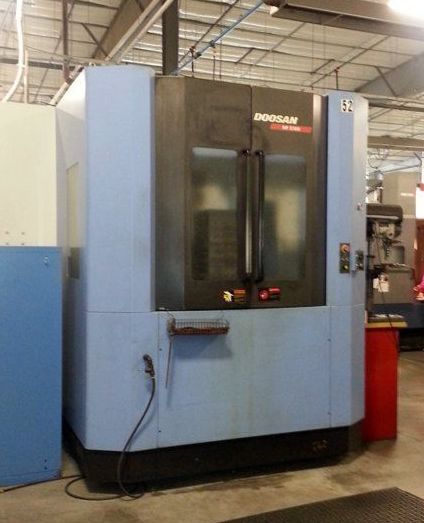

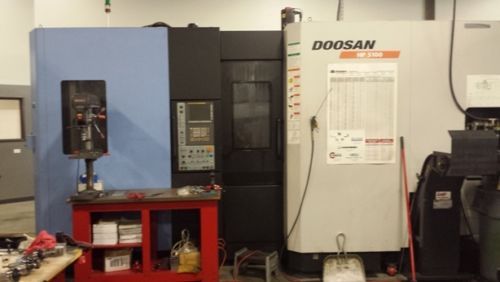

DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 a.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 b.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 c.jpg

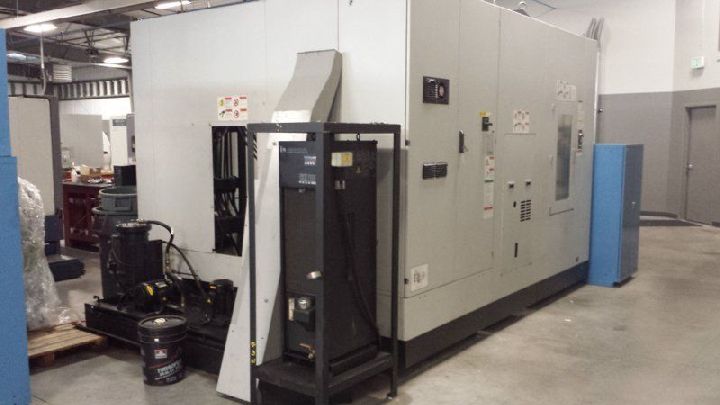

DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 d.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 e.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 f.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 g.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 h.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 i.jpg
DoosanHP-510015580http://www.machinetools247.com/images/machines/15580-Doosan HP-5100 j.jpg
