Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
155602015HwacheonHi-Tech 350 YMCFanuc OiTD

 DescriptionSpec Values
16.54Swing / Swing Over Cross Slide27.56" / 21.65"
 Maximum Turning Diameter / Maximum Turning Length27.6" / 26.02"
 Distance Between Centers30"
Spindle:Spindle Speeds Minimum - Maximum35 - 3,500 RPM
 Spindle Bore / Bar Capacity / Nose3.54" / 2.99" / A2-8
 Main Motor (30 min / continuous)30 / 25 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel11"
 Z-Axis Travel31.1"
 Y-Axis Travel4.7"
Rotary Tools:Rotary Tool Speed4,000 RPM
 Rotary Tool Motor7 HP
Tailstock:Stroke of Body / Quill26" / 4.72"
 Quill Diameter / Taper3.94" / MT # 5
Rapids:Rapid Traverse (X & Z )708 IPM
Dimensions:Floor Space (L x W x H)185" x 84" x 90"
 Weight (approx.)16,000 Lbs

 Equipped With
Additioanl Info.:10" 3-Jaw Hydraulic Chuck
 Auto Door
 Chip Conveyor
 Two (2) Speed Geared Head
 Parts Catcher
 Chuck Air Blast
 Programmable Tailstock
 Tooleye
 Tool Life Management
 Bar Feed Interface
 Eight (8) Extra M Codes
 Live Holders
 RS-232 Port


Click Here To Print Quote - 15560

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

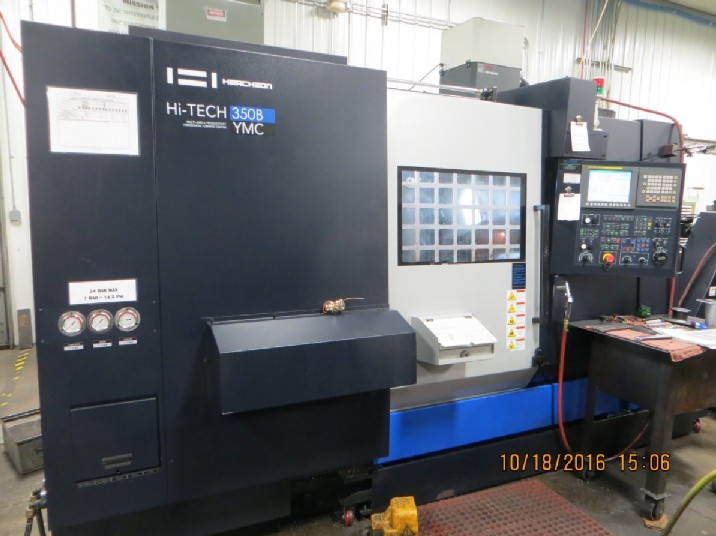

HwacheonHi-Tech 350 YMC15560http://www.machinetools247.com/images/machines/15560-Hwacheon Hi-Tech 350 YMC.jpg

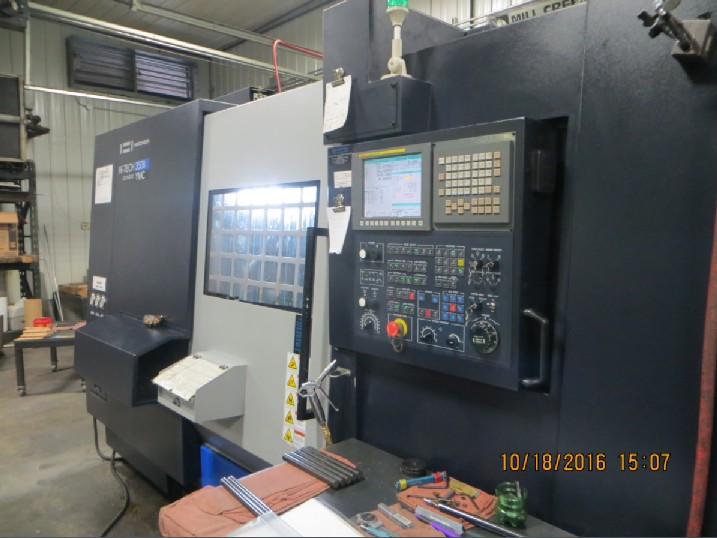

HwacheonHi-Tech 350 YMC15560http://www.machinetools247.com/images/machines/15560-Hwacheon Hi-Tech 350 YMC 1.jpg

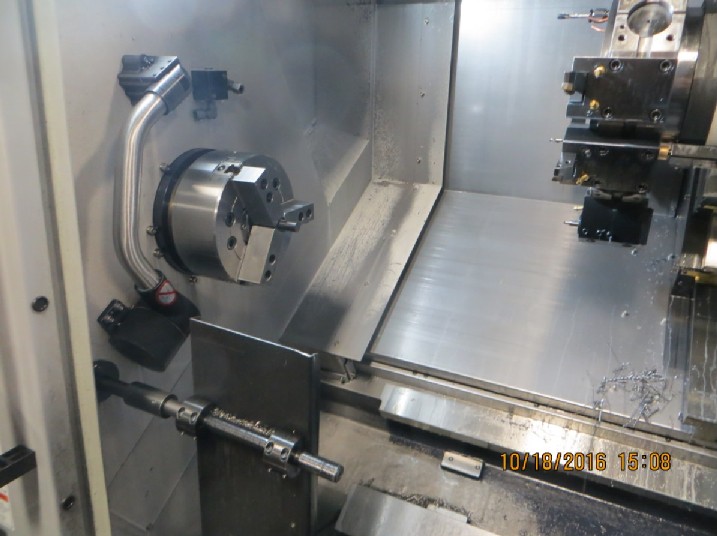

HwacheonHi-Tech 350 YMC15560http://www.machinetools247.com/images/machines/15560-Hwacheon Hi-Tech 350 YMC 2.jpg
HwacheonHi-Tech 350 YMC15560http://www.machinetools247.com/images/machines/15560-Hwacheon Hi-Tech 350 YMC 3.jpg
