Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
154982012DoosanLynx-220 LMFanuc OiTD

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide20.08" / 16.3"
 Maximum Turning Diameter / Maximum Turning Length9.84" / 21.65"
 Distance Between Centers22"
Spindle:Spindle Speeds Minimum - Maximum40 - 4,000 RPM
 Spindle Bore / Bar Capacity / Nose2.56" / 2.01" / A2-5
 Main Motor (30 min / continuous)20 / 15 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel6.9"
 Z-Axis Travel21.65"
Rotary Tools:Rotary Tool Speed40 - 4,000 RPM
 Rotary Tool Motor (30 min. / continuous)5 HP
Tailstock:Stroke of Body / Quill20" / 3.15"
 Quill Diameter / Taper2.53" / MT # 4
Rapids:Rapid Traverse (X / Z )1,181 / 1,417 IPM
Dimensions:Floor Space (L x W x H)104" x 63" x 64"
 Weight (approx.)7,700 Lbs

 Equipped With
Additional Info.:6" 3-Jaw Hydraulic Chuck
 Parts Catcher
 Tool Setter
 Chip Conveyor

Click Here To Print Quote - 15498

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>


ManufacturerModelMachine IDMachine Photos

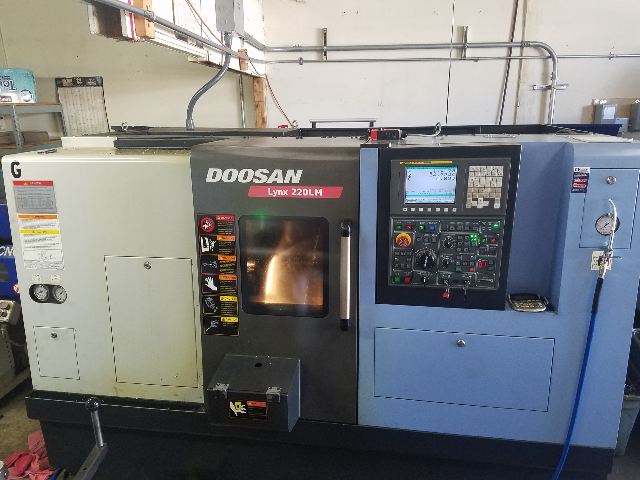

DoosanLynx-220 LM15498 Lynx-220 LM.jpg

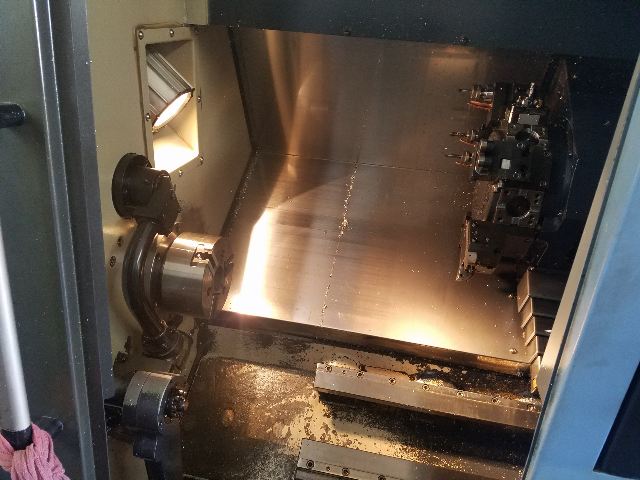

DoosanLynx-220 LM15498 Lynx-220 LM 1.jpg

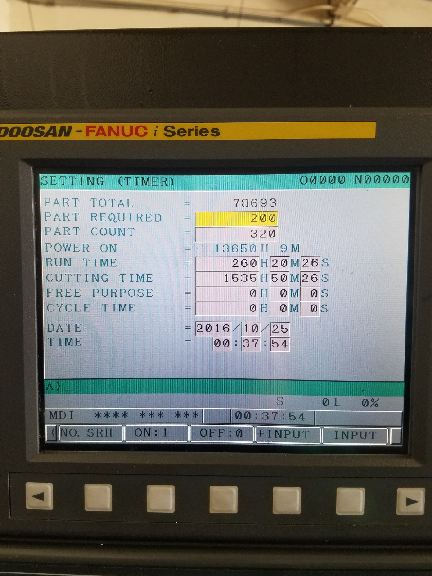

DoosanLynx-220 LM15498 Lynx-220 LM 2.jpg
