Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
153262007KitamuraHX-400iFFanuc 16iMB

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets)15.7" x 15.7"
 Pallet Indexing / Table Load360,000° / 880 Lbs
Travels:X-Axis Travel28.9"
 Y-Axis Travel24"
 Z-Axis Travel24"
Spindle:Spindle Speeds Minimum - Maximum50 - 13,000 RPM
 Spindle Taper40 Taper
 Main Motor (30 min / continuous)30 / 20 HP
 Spindle Center to Table Top2" - 27"
Tool Changer:Tool Changer Positions50 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip)1.3 / 3.9 Sec.
Rapids:Rapid Traverse (X, Y & Z )1,969 IPM
 Feed Rate0.01 - 1,181 IPM
Dimensions:Floor Space (L x W x H)244" x 113" x 126"
 Weight (approx.)38,500 Lbs

 Equipped With
Additional Info.:High Pressure Coolant System
 Helical Interpolation
 Coordinate Rotation & Scaling
 Color Graphics
 Spindle Oil Chiller
 Rigid Tapping
 Chip Conveyor
 Coolant Through Spindle
 Two (2) Speed Geared Head
 Transformer


Click Here To Print Quote - 15326

Click Here To Email Quote Request - 15326

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

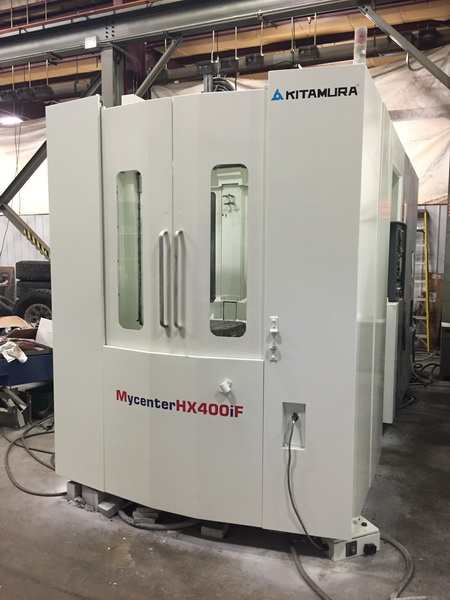

KitamuraHX-400iF15326http://www.machinetools247.com/images/machines/15326-Kitamura HX-400iF.jpg

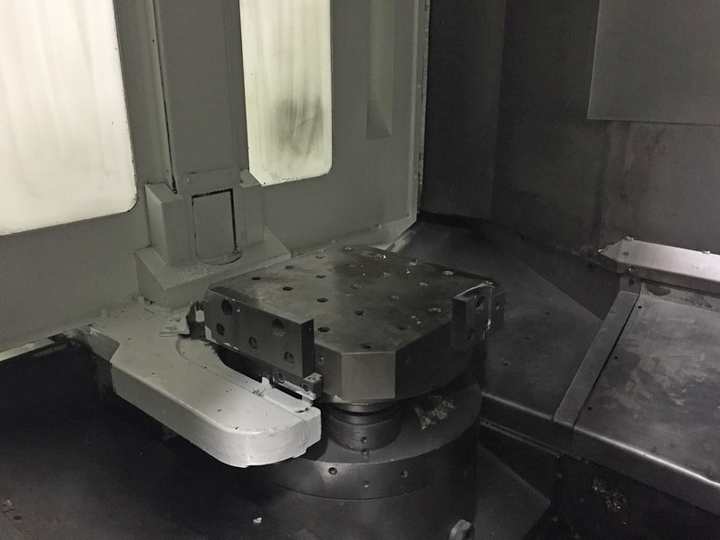

KitamuraHX-400iF15326http://www.machinetools247.com/images/machines/15326-Kitamura HX-400iF 1.jpg

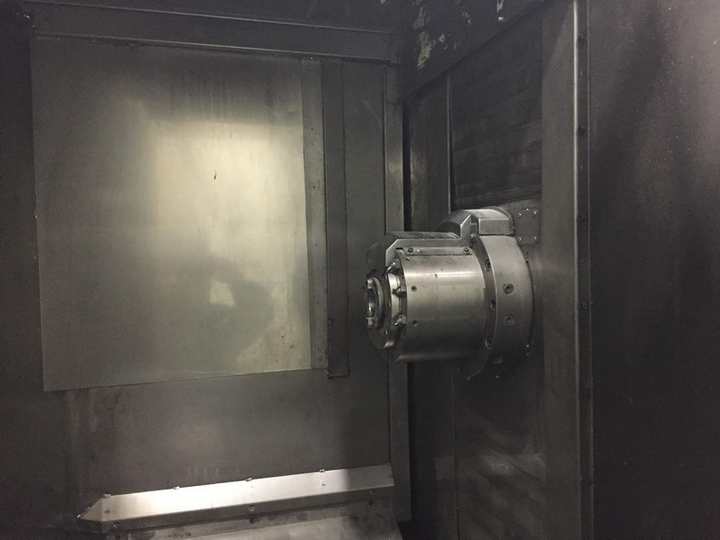

KitamuraHX-400iF15326http://www.machinetools247.com/images/machines/15326-Kitamura HX-400iF 2.jpg
