Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
153002011OkumaMA-600 HBOSP-P200M

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets)24.8" x 24.8"
 Pallet Indexing / Table Load360,000° / 2,640 Lbs
Travels:X-Axis Travel39.37"
 Y-Axis Travel35.43"
 Z-Axis Travel39.37"
Spindle:Spindle Speeds Minimum - Maximum50 - 6,000 RPM
 Spindle Taper50 Taper
 Main Motor (30 min / continuous)60 / 55 HP
 Spindle Center to Table Top2.76" – 39.37"
Tool Changer:Tool Changer Positions81 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip)1.3 / 3.9 Sec.
Rapids:Rapid Traverse (X, Y & Z )2,362 IPM
 Feed Rate2,362 IPM
Dimensions:Floor Space (L x W x H)239" x 137" x 126"
 Weight (approx.)58,000 Lbs

 Equipped With
 Multi- Tap Transformer
 Tool Life Management
 Load Monitor
 Cycle Time Reduction
 Chip Conveyor
 Coolant Through Spindle (1,000 psi)
 Remote Jog Handle
 Coolant Chiller
 Coolant Filtration
 Spindle Air Blow
 Shower Coolant
 Transformer
 USB Ports
 Ethernet Port
 Tool Offsets (300 sets)
 IMAP
 Synchronous Tapping
 HI-Cut Pro
 Touch Sensor
 Thermal Compensation
 MayFran Concept 2000 With Hard Turn Package
 Big Plus Spindle
 ATC Axpandable to 240 Pockets
 Two (2) Spare Pallets
 Renishaw MP700 Probe With Auto Gauging
 High Torque Spindle Upgrade
Additional Info.:Tool Breakage Detection
 User Task II
 Schedule Programming
 Helical Cutting


Click Here To Print Quote - 15300

Click Here To Email Quote Request - 15300

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

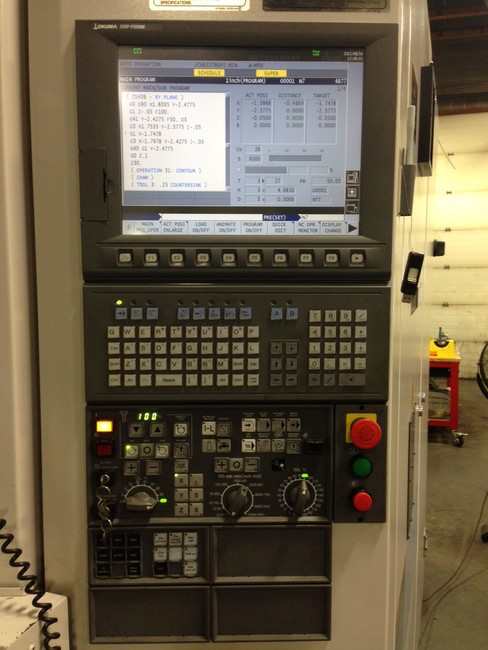

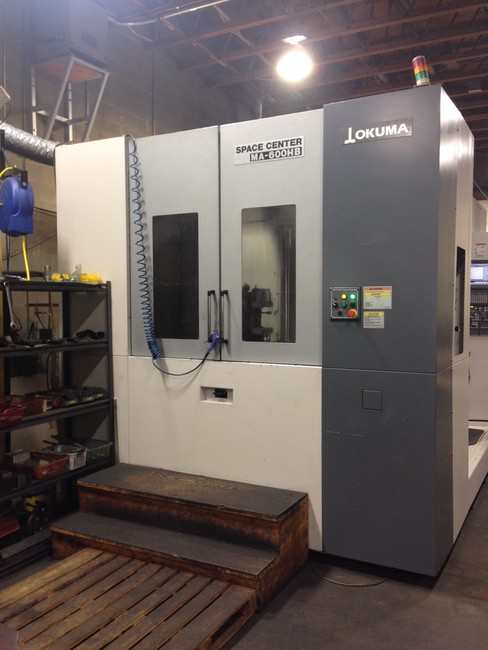

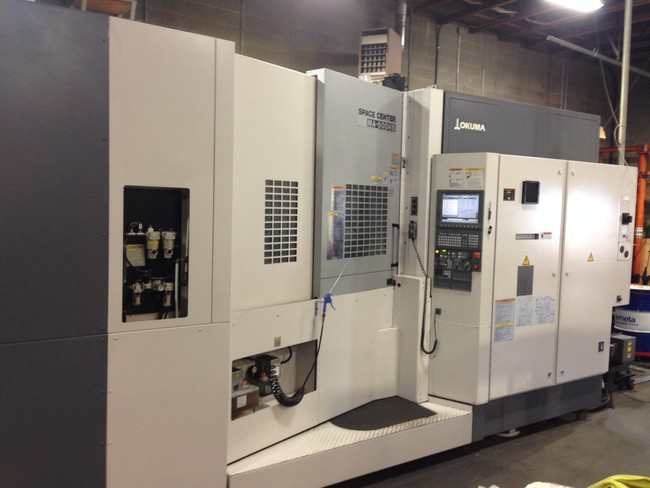

OkumaMA-600 HB15300http://www.machinetools247.com/images/machines/15300-Okuma MA-600 HB.jpg
