Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
152152007HaasEC-1600Haas Control
152152007HaasEC-1600Haas Control

 DescriptionSpec Values
Table:Table Size / Table Load64" x 32" / 10,000 Lbs
 Rotary Table / Rotary Table Indexing30" / 360,000°
Travels:X-Axis Travel64"
 Y-Axis Travel40"
 Z-Axis Travel32"
Spindle:Spindle Speeds Minimum - Maximum50 - 10,000 RPM
 Spindle Taper50 Taper
 Main Motor (30 min / continuous)30 / 20 HP
Tool Changer:Tool Changer Positions50+ 1 ATC
Rapids:Rapid Traverse (X, Y & Z )540 IPM
 Feed Rate0.01 - 500 IPM
Dimensions:Floor Space (L x W x H)173" x 135" x 119"
 Weight (approx.)32,500 Lbs

 Equipped With
Additional Info.:Two (2) Speed Geared Head
 Dual Chip Augers
 Enhanced Remote Jog Handle
 Built-In 4th Axis Rotary Table
 Coolant Through Spindle
 16 Meg of Memory
 Coordinate Rotation & Scaling
 Intuitive Programming
 Spindle Orientation
 Programmable Coolant
 Early Power Failure Detection Module
 Visual Quick Code Probing System
 Rigid Tapping
 Auxillary Coolant Filtration System
 Ethernet Port
 Hard Drive - 40 Gig
 Wireless Probing System
 USB Port
 Haas HRT-310 Rotary Table
 5th Axis Interface
Note:Under 250 Cutting Hours on Machine. 2007 Machine Installed in Late 2008


Click Here To Print Quote - 15215

Click Here To Email Quote Request - 15215

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

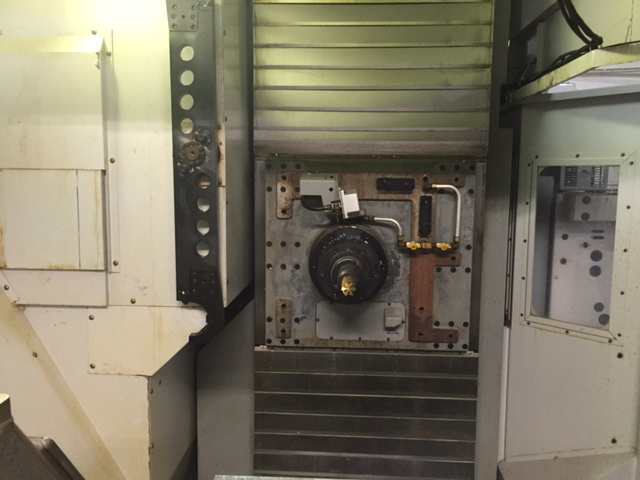

HaasEC-160015215http://www.machinetools247.com/images/machines/15215-Haas EC-1600.jpg

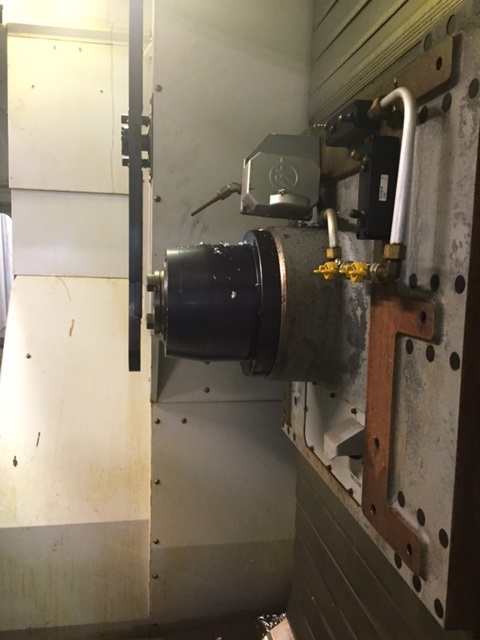

HaasEC-160015215http://www.machinetools247.com/images/machines/15215-Haas EC-1600 a.jpg

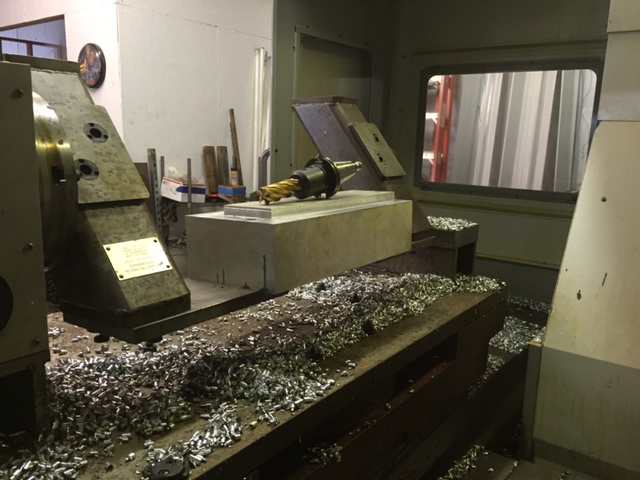

HaasEC-160015215http://www.machinetools247.com/images/machines/15215-Haas EC-1600 b.jpg

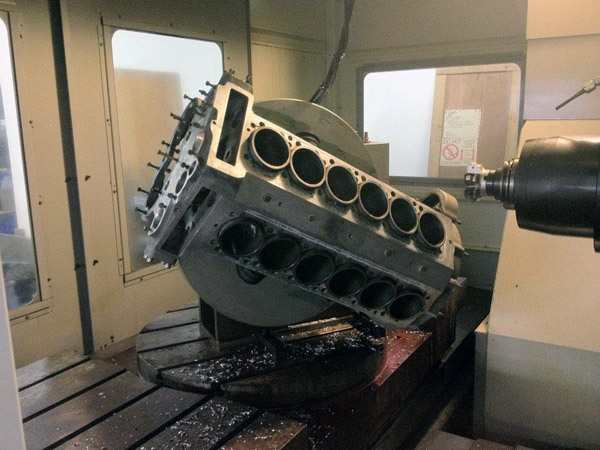

HaasEC-160015215http://www.machinetools247.com/images/machines/15215-Haas EC-1600 c.jpg

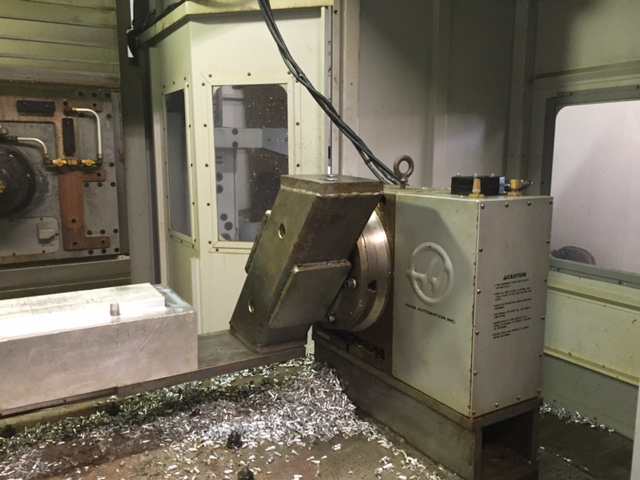

HaasEC-160015215http://www.machinetools247.com/images/machines/15215-Haas EC-1600 d.jpg

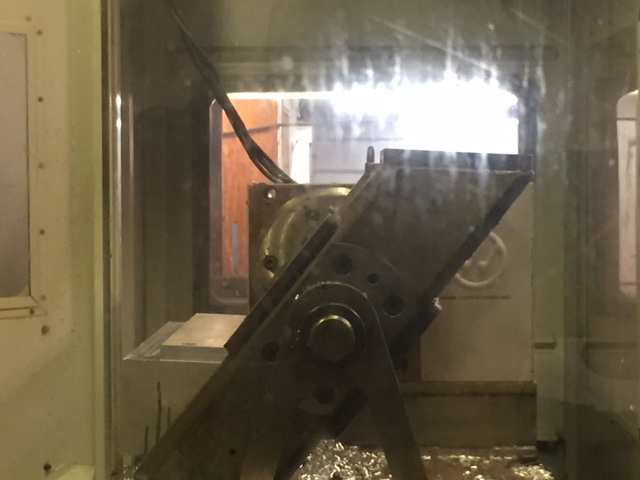

HaasEC-160015215http://www.machinetools247.com/images/machines/15215-Haas EC-1600 e.jpg

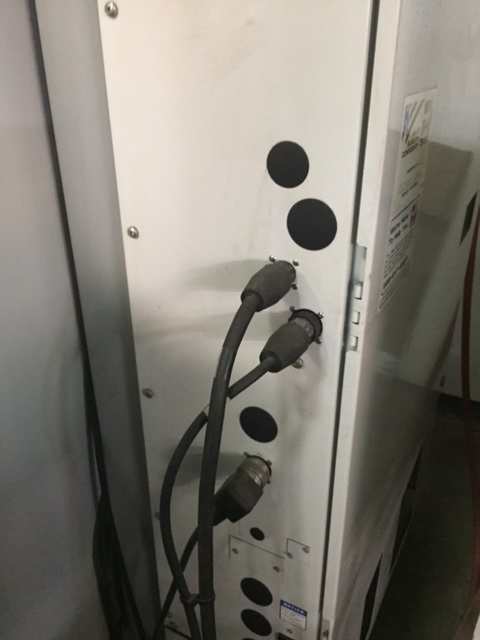

HaasEC-160015215http://www.machinetools247.com/images/machines/15215-Haas EC-1600 f.jpg

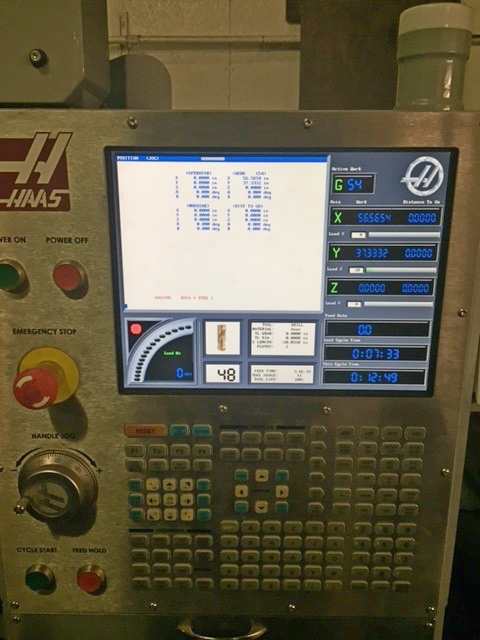

HaasEC-160015215http://www.machinetools247.com/images/machines/15215-Haas EC-1600 g.jpg
