Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
150172006Mori-SeikiNH-4000 - 40 DCGMori-Seiki MSX-501 (Fanuc 18iM)

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets)15.75" x 15.75"
 Pallet Indexing / Table Load1° / 880 Lbs
Travels:X-Axis Travel22.047"
 Y-Axis Travel22.047"
 Z-Axis Travel24.803"
Spindle:Spindle Speeds Minimum - Maximum50 - 14,000 RPM
 Spindle Taper40 Taper (bt)
 Main Motor (30 min / continuous)25 / 20 HP
 Spindle Center to Table Top3.1" - 19.7"
Tool Changer:Tool Changer Positions60 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip).9 / 2.3 Sec.
Rapids:Rapid Traverse (X, Y & Z )1,968 IPM
 Feed Rate1,969 IPM
Dimensions:Floor Space (L x W x H)148" x 91" x 103"
 Weight (approx.)22,500 Lbs

 Equipped With
Additional Info.:Chip Conveyor
 Rigid Tapping
 Coolant Through Spindle
 RS-232 Port
 Chip Blaster Coolant System (fp-2-ab)
 Remote Jog Handle
 MAPPS
 50 Meg of Memory
 Chip Blaster Unit (1,000 psi)
 Custom Macro B
 Look Ahead Control
 Helical Interpolation
 High Speed Skip


Click Here To Print Quote - 15017

Click Here To Email Quote Request - 15017

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

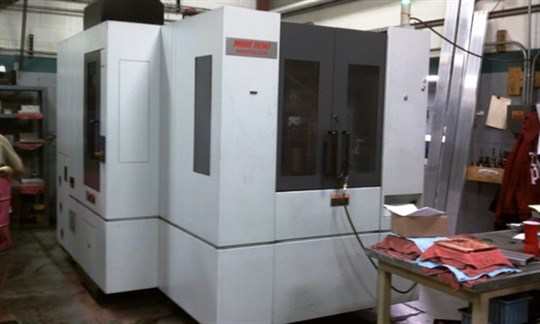

Mori-SeikiNH-4000 - 40 DCG15017http://www.machinetools247.com/images/machines/15017-Mori-Seiki NH-4000 - 40 DCG.jpg
