Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
144221998ToyodaFA-550 IIFanuc 15MB

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets)21.65" x 21.65"
 Pallet Indexing / Table Load360,000° / 2,300 Lbs
Travels:X-Axis Travel29.52"
 Y-Axis Travel29.52"
 Z-Axis Travel23.62"
Spindle:Spindle Speeds Minimum - Maximum50 - 14,000 RPM
 Spindle Taper50 Taper
 Main Motor (30 min / continuous)30 / 25 HP
 Spindle Center to Table Top5.9" - 29.52
Tool Changer:Tool Changer Positions60 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip)2 / 4.1 Sec.
Rapids:Rapid Traverse (X, Y & Z )1,471 IPM
 Feed Rate0.01 - 630 IPM
Dimensions:Floor Space (L x W x H)220" x 125" x 122"
 Weight (approx.)40,500 Lbs

 Equipped With
Additional Info.:Coolant Through Spindle
 Helical Interpolation
 Rigid Tapping
 Chip Conveyor
 200 Tool Offsets
 200 Custom Macro Variables
 Tool Life Management


Click Here To Print Quote - 14422

Click Here To Email Quote Request - 14422

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

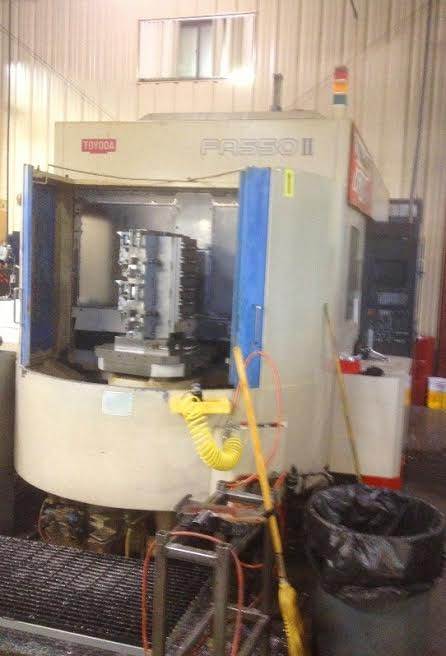

ToyodaFA-550 II14422http://www.machinetools247.com/images/machines/14422-Toyoda FA-550 II.jpg

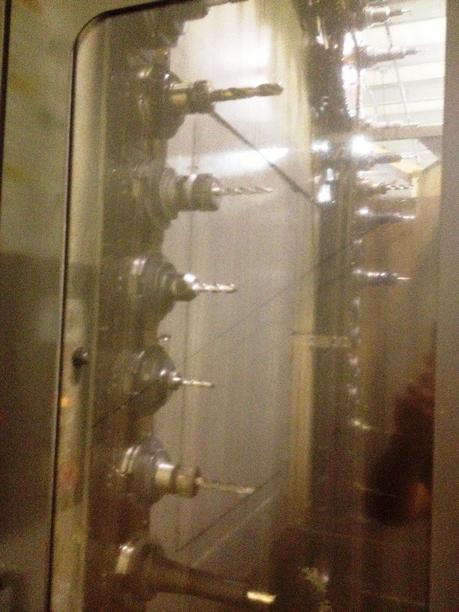

ToyodaFA-550 II14422http://www.machinetools247.com/images/machines/14422-Toyoda FA-550 II a.jpg

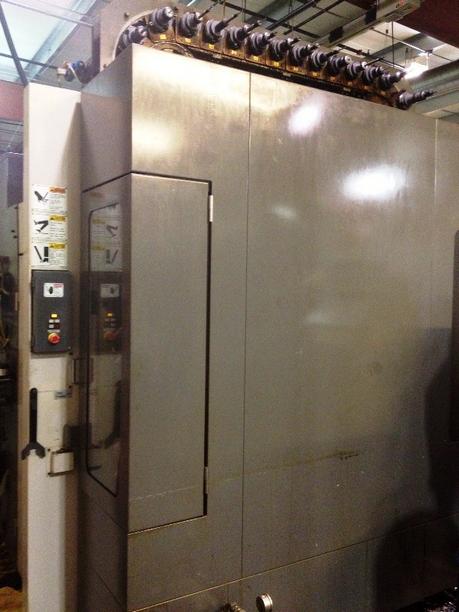

ToyodaFA-550 II14422http://www.machinetools247.com/images/machines/14422-Toyoda FA-550 II b.jpg

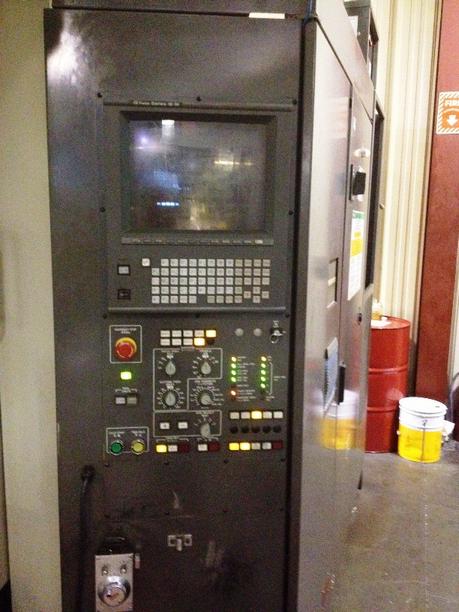

ToyodaFA-550 II14422http://www.machinetools247.com/images/machines/14422-Toyoda FA-550 II c.jpg
