Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
118942015Amera-SeikiVT-1600 R ATCFanuc OiTD

 DescriptionSpec Values
Capacity:Table Diameter / Table Load63" / 30,800 Lbs
 Maximum Swing / Maximum Turning Diameter78.74" / 74.80"
 Maximum Turning Height63"
Spindle:Speeds (2-Speed Gear Box)1 - 250 RPM
 Motor67 HP
Head(s):Number of HeadsOne
 Type Head(s) / TaperRam Head / 50 Taper
 Tool Changer12 ATC
Travels:X-Axis Vertical / Horizontal Ram Travel39.37" / 100.40"
 Vertical Travel of Rail Head31.50"
Rapids:Rapid Traverse (X / Z)472 / 393 IPM
Dimensions:Floor Space (L x W x H)205” x 137” x 236"
 Weight (approx.)61,500 Lbs

 Equipped With
Additional Info.:63" 4-Jaw Manual Chuck
 Chip Conveyor
 Oil Skimmer
 ZF Gearbox With Chiller
 Full Enclosure Guarding
 Air Conditioner for Electrical Cabinet
 Spindle Gearbox With Chiller
 High Intensity Work Light
 Transformer
 Coolant Through Spindle (145 psi)
 Rigid Tapping
 Skip Function
 Memory Card Slot
 Custom Macro B
 RS-232 Port
Note:Machine Without Live Tooling Is $549,900, Other Machine Options Available


Click Here To Print Quote - 11894

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

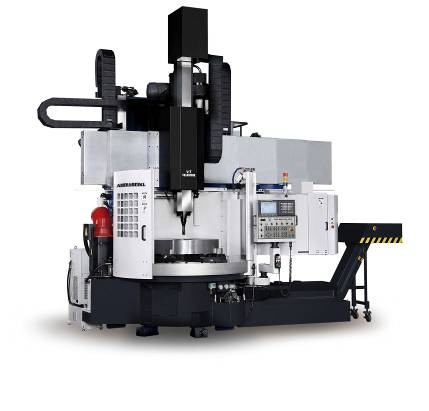

Amera-SeikiVT-1600 R ATC11894http://www.machinetools247.com/images/machines/11894-Amera-Seiki VT-1600 ATC.jpg
